UGC DOR5973751
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.10 CAD - $45.10 CAD
$45.10 CAD
$45.10 CAD - $45.10 CAD
$45.10 CAD

Vendu en lots de : 1

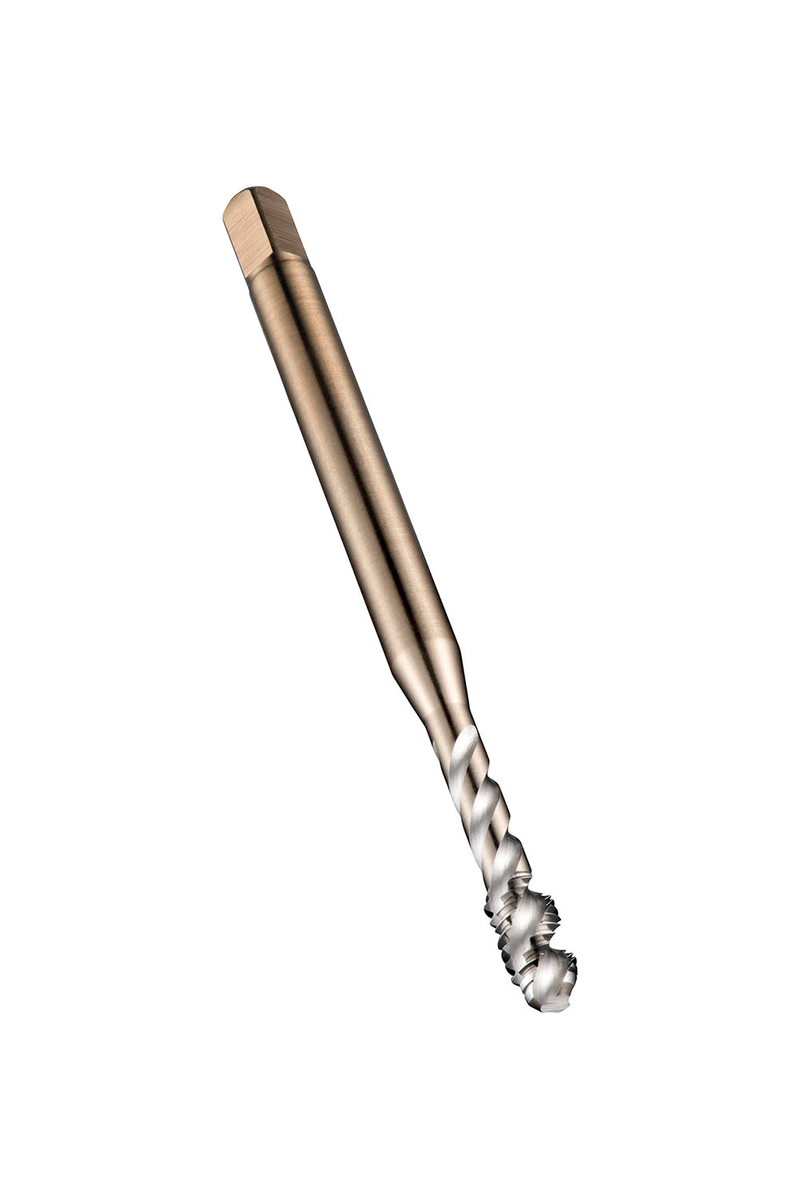

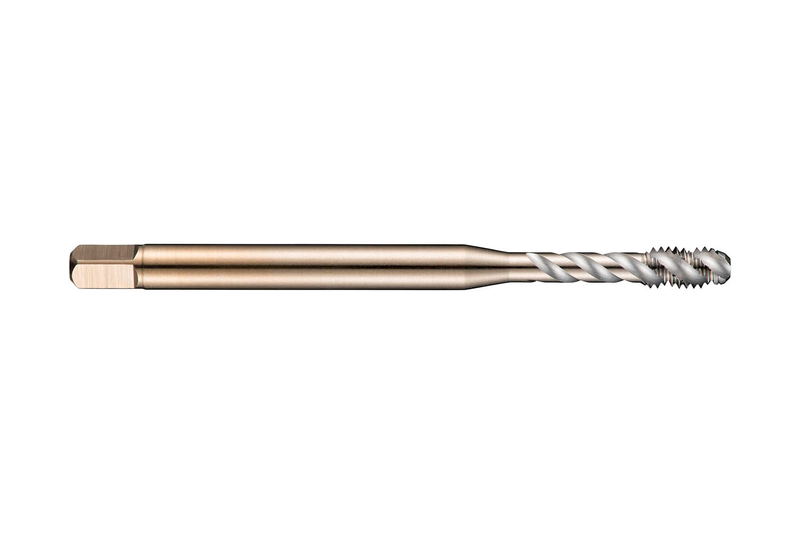

Taraud machine à coupe spirale, forme C, entrée 2-3 filets, pour filet métrique ISO M2 au pas de 0,40 mm et classe de tolérance 6H, dimensions selon norme DIN 371 avec queue de 2,8 mm et carré d'entraînement de 2,1 mm, en HSS-E PM avec finition brillante et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2,5xD dans les aciers non alliés et de décolletage et les aluminiums corroyés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX00M2
GradeLumineux
Product Number5973751
Product FamilyEX006H
Dimensions
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.3543"
Usable Length — mm (LU)9.0 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)2
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.4 mm
Thread Pitch — in (TP)0.0157"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number137307
EAN7320760137307
File Type Download

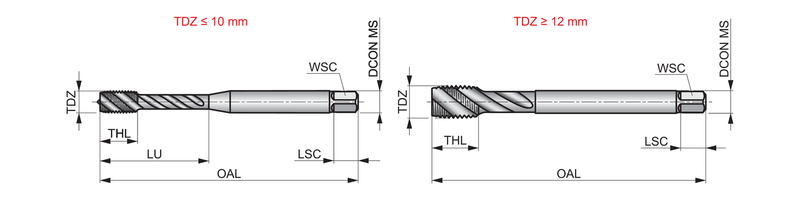

EX00M2 — Line Drawing PDF Download
