E000M1.6
E000M1.6
E000M1.6

E000M1.6

UGC DOR5973759
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.79 CAD - $50.79 CAD
$50.79 CAD
$50.79 CAD - $50.79 CAD
$50.79 CAD

Vendu en lots de : 1

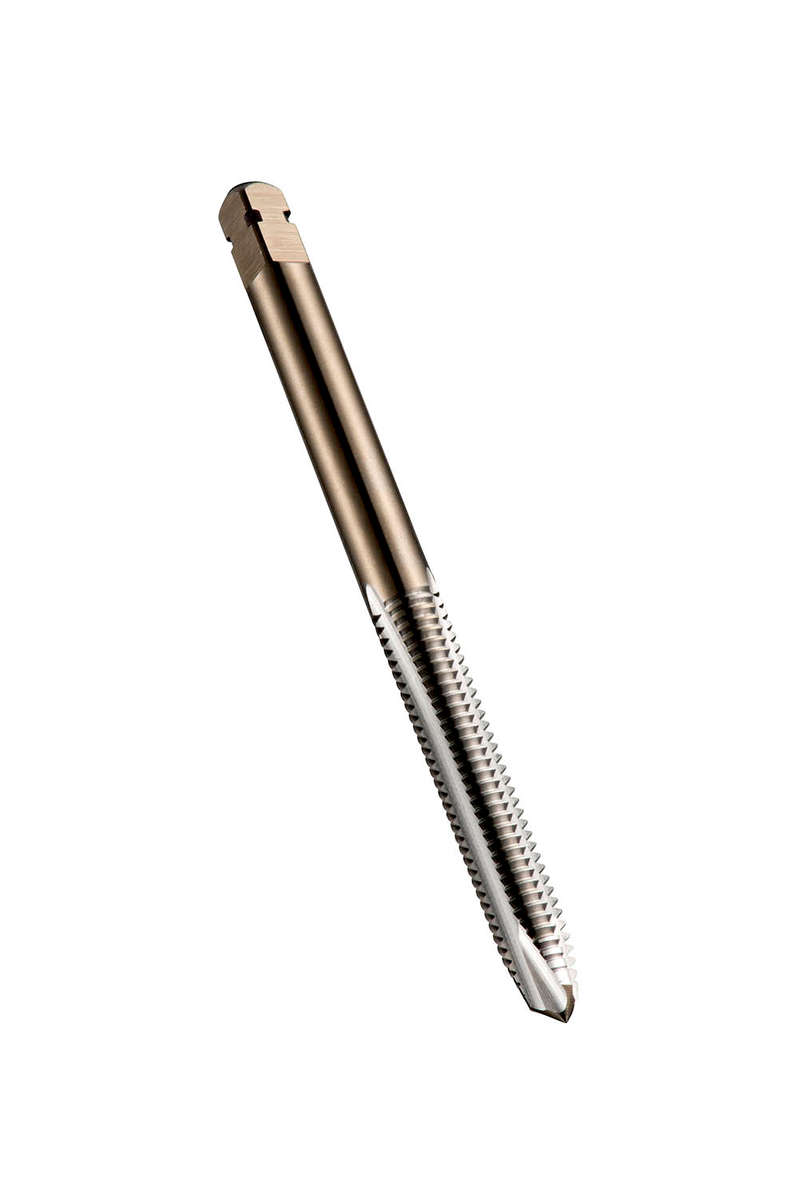

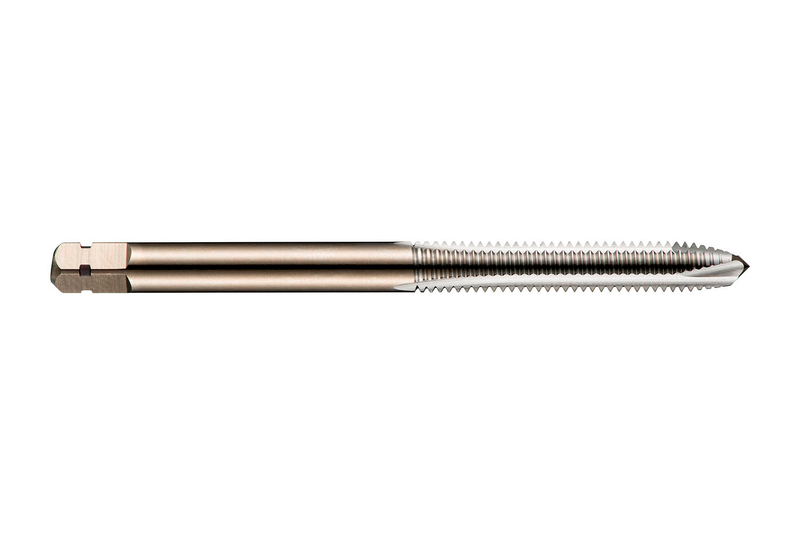

Taraud machine à pointe spirale et entrée B de 3.5-5xP, pour filet ISO-Métrique M1.6 au pas de 0.35 mm et tolérance 6H, dimensions selon norme ISO 529 avec queue de 2.5mm et carré d'entraînement de 2.0mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants 2.5xD dans les aciers de décolletage et aciers au carbone non alliés, l'aluminium corroyé ou moulé, le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E000M1.6
GradeLumineux
Product Number5973759
Product FamilyE000
Dimensions
Overall Length — in (OAL)1.6142"
Overall Length — mm (OAL)41.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.2756"
Usable Length — mm (LU)7.0 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)1.6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.35 mm
Thread Pitch — in (TP)0.0138"
Tool Information
ShankTige cylindrique à Carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number168769
EAN7320760168769
File Type Download
E000M1.6 — Line Drawing PDF Download
