EP11M12X1.25
EP11M12X1.25
EP11M12X1.25

EP11M12X1.25

UGC DOR5973762
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$71.44 CAD - $71.44 CAD
$71.44 CAD
$71.44 CAD - $71.44 CAD
$71.44 CAD

Vendu en lots de : 1

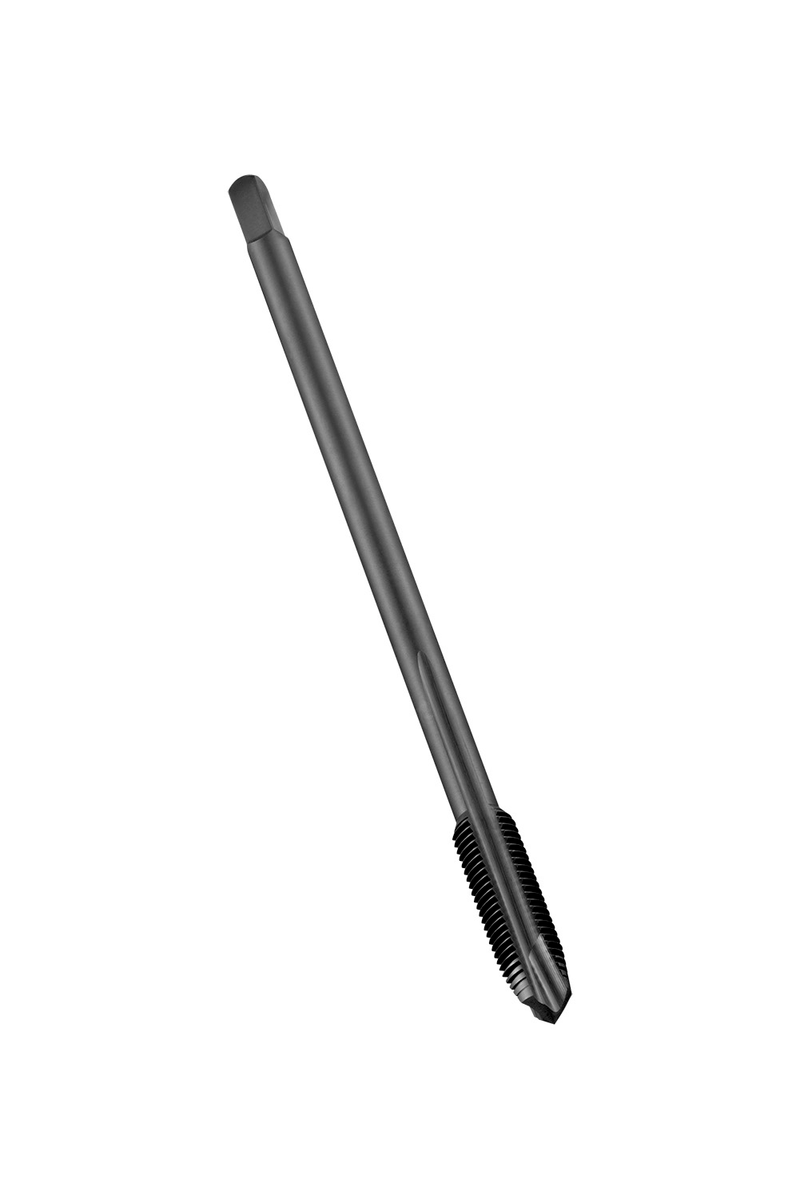

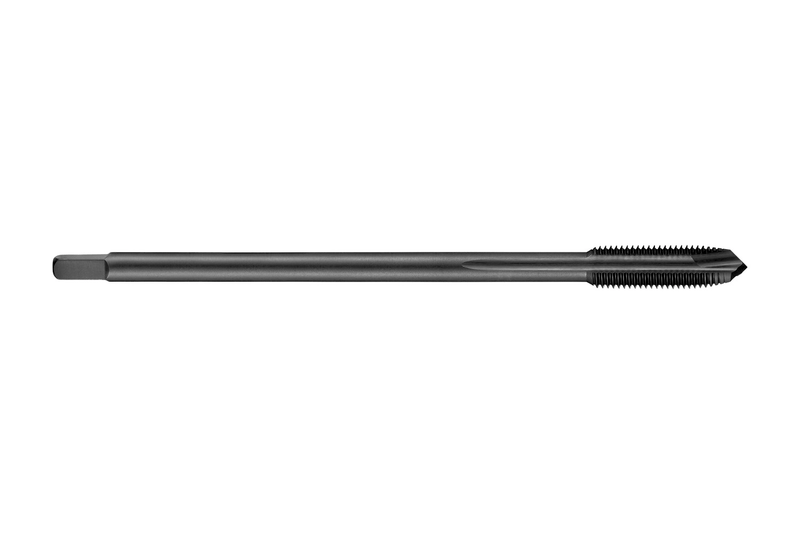

Taraud machine à pointe spirale et entrée B (3,5-5 filets) pour filet métrique fin ISO M12 au pas de 1,25 mm et tolérance 6H, dimensions conformes à la norme DIN 374, avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E (acier rapide fritté) avec traitement de surface à la vapeur pour le taraudage de trous débouchants jusqu'à 2,5xD dans des applications courantes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP11M12X1.25
GradeTrempé à la vapeur
Product Number5973762
Product FamilyPE11
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137819
EAN7320760137819
File Type Download
EP11M12X1.25 — Line Drawing PDF Download
