EP11M14X1.0
EP11M14X1.0
EP11M14X1.0

EP11M14X1.0

UGC DOR5973768
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.13 CAD - $88.13 CAD
$88.13 CAD
$88.13 CAD - $88.13 CAD
$88.13 CAD

Vendu en lots de : 1

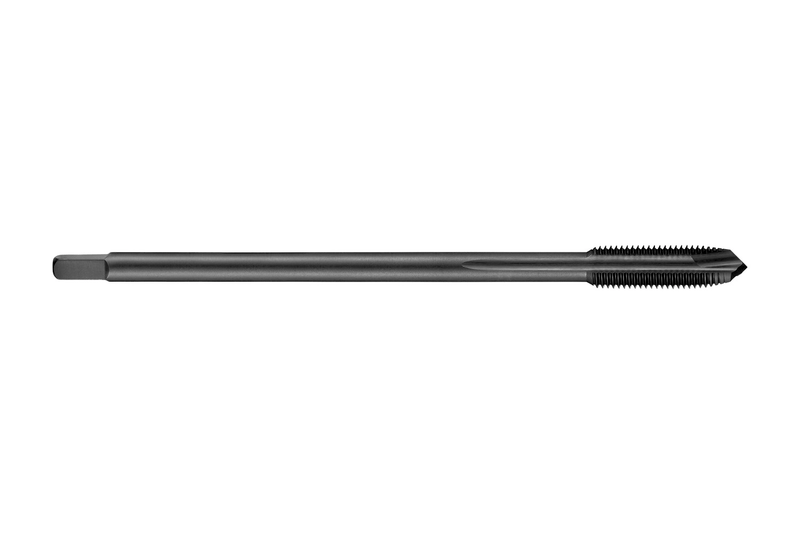

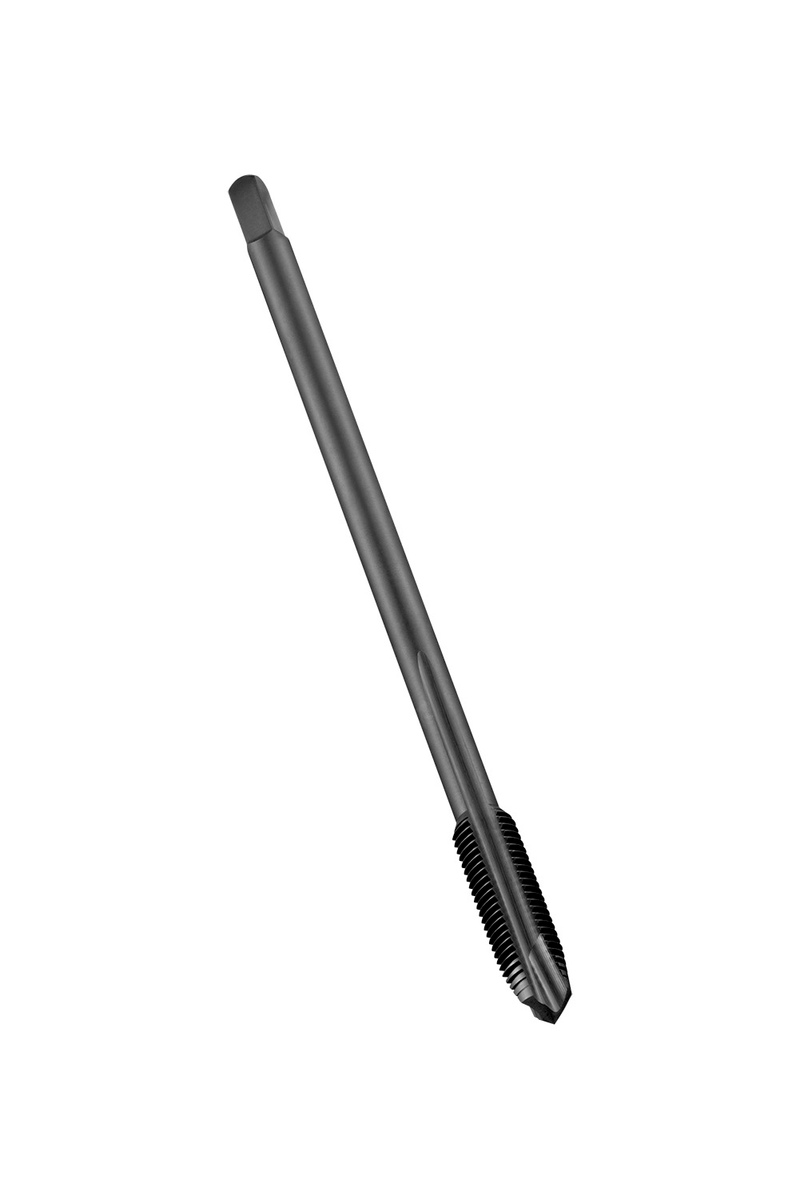

Taraud machine à pointe spirale et entrée B de 3.5-5xP, pour filet ISO-Métrique Fin M14 au pas de 1.00 mm et tolérance 6H, dimensions selon norme DIN 374 avec queue de 11.0mm et carré d'entraînement de 9.0mm, en HSS-E fritté avec traitement de surface à la vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications d'usage général

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP11M14X1.0
GradeTrempé à la vapeur
Product Number5973768
Product FamilyPE11
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137833
EAN7320760137833
File Type Download
EP11M14X1.0 — Line Drawing PDF Download
