E000M2
E000M2
E000M2

E000M2

UGC DOR5973771
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.40 CAD - $50.40 CAD
$50.40 CAD
$50.40 CAD - $50.40 CAD
$50.40 CAD

Vendu en lots de : 1

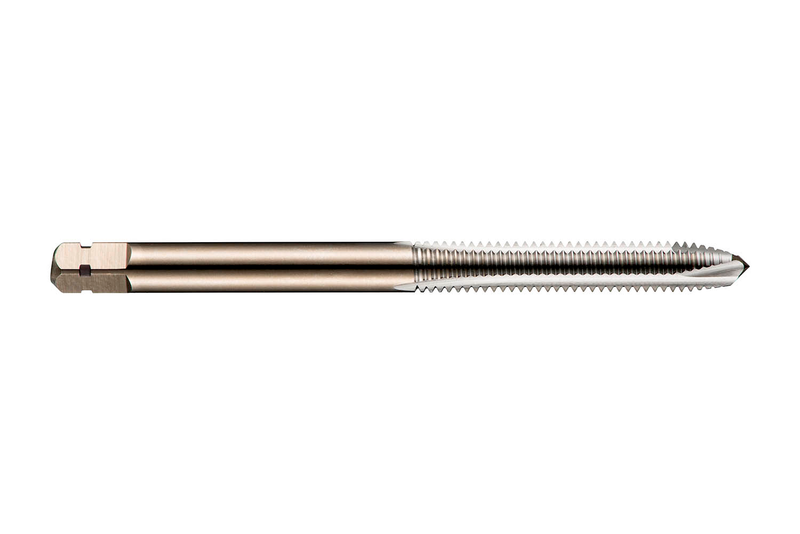

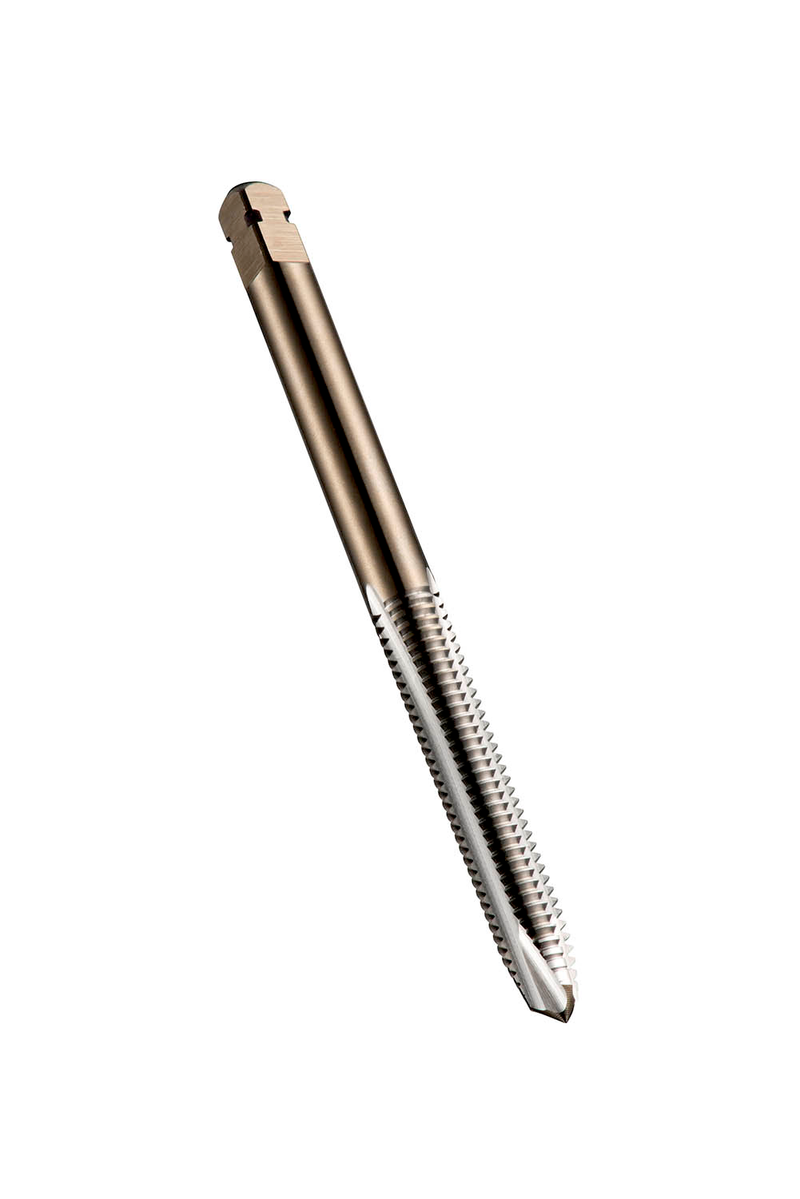

Taraud machine à pointe spirale et entrée de forme B avec 3,5-5xP, pour filet ISO-Métrique M2 au pas de 0,40 mm et tolérance 6H, dimensions selon norme ISO 529 avec queue 2,5 mm et carré d'entraînement 2,0 mm, en HSS-E (acier rapide fritté) finition brillante pour filetage de trous débouchants 2.5xD dans les aciers de décolletage et aciers au carbone non alliés, les aluminiums et cuivres ou alliages de cuivre corroyés ou coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E000M2
GradeLumineux
Product Number5973771
Product FamilyE000
Dimensions
Overall Length — in (OAL)1.6142"
Overall Length — mm (OAL)41.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.315"
Usable Length — mm (LU)8.0 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)2
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.4 mm
Thread Pitch — in (TP)0.0157"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number168776
EAN7320760168776
File Type Download
E000M2 — Line Drawing PDF Download
