EX411
EX411
EX411

EX411

UGC DOR5973773
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$508.40 CAD - $508.40 CAD
$508.40 CAD
$508.40 CAD - $508.40 CAD
$508.40 CAD

Vendu en lots de : 1

Taraud à gorge spirale, chanfrein forme C, entrée 2-3 filets, pour filetage British Standard Pipe G 1" avec 11 filets par pouce et classe de tolérance « Normal », dimensions conformes à la norme DIN 5156 avec queue de 25,0 mm et carré d'entraînement de 20,0 mm, en HSS-E (acier rapide fritté) avec finition de surface trempée à la vapeur et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX411
GradeTrempé à la vapeur
Product Number5973773
Product FamilyEX41

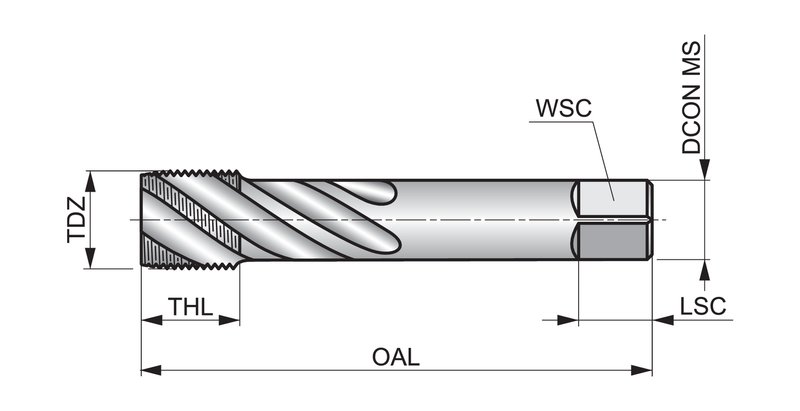

Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.309"
Thread Diameter — mm (TD)33.249 mm
Thread Form (THFT)G - Raccordement de tuyauterie British Standard - Série G
Threads per Inch (TPI)11.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 5156
Reference Numbers
EDP Number168721
EAN7320760168721
File Type Download
EX411 — Line Drawing PDF Download
