UGC DOR5973778
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.49 CAD - $16.49 CAD
$16.49 CAD
$16.49 CAD - $16.49 CAD
$16.49 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale avec entrée B (3,5-5 filets) pour filet métrique ISO M6 au pas de 1,00 mm et tolérance 6H, dimensions selon la norme ANSI avec queue de 6,477 mm (0,2550") et carré d'entraînement de 4,851 mm (0,1910"), en HSS-E produit par métallurgie des poudres, finition nitrurée vapeur, pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E006M6
GradeTrempé à la vapeur
Product Number5973778
Product FamilyE006

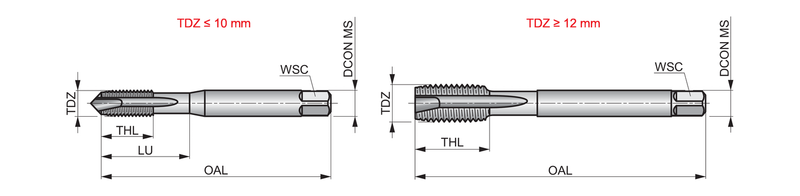

Dimensions
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.0073"
Usable Length — mm (LU)25.59 mm
Connection Dia. — in (DCON)0.255"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number580493
EAN7320760580493
File Type Download
E006M6 — Line Drawing PDF Download
