UGC DOR5973783
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.24 CAD - $20.24 CAD
$20.24 CAD
$20.24 CAD - $20.24 CAD
$20.24 CAD

Vendu en lots de : 1

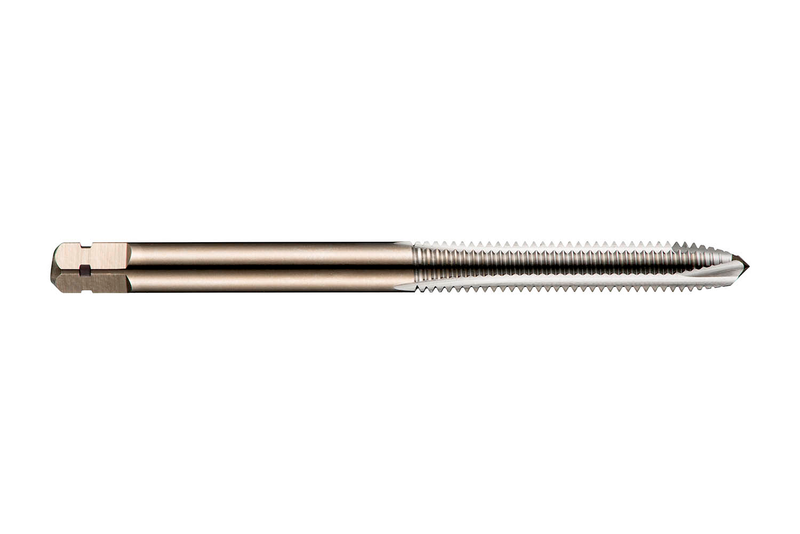

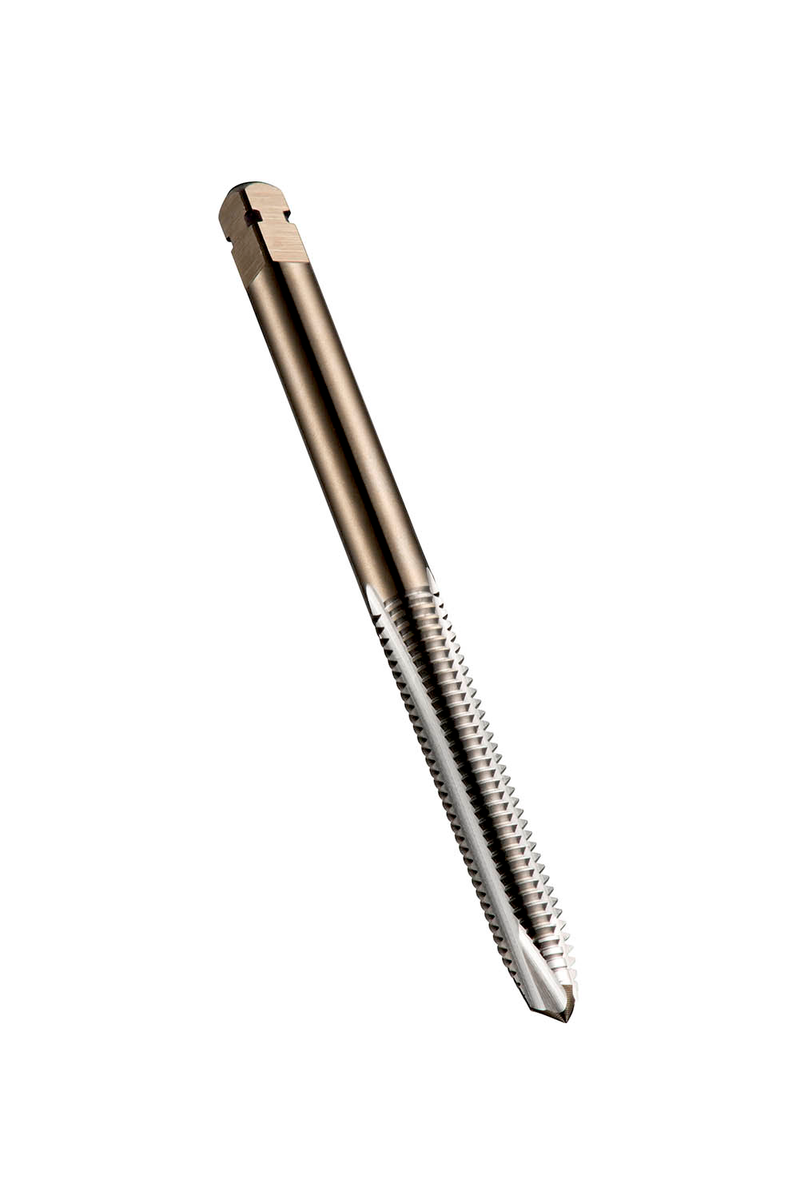

Taraud machine à pointe spirale avec entrée B à 3.5-5 filets, pour filetage métrique ISO M3 au pas de 0.50 mm et tolérance 6H, dimensions conformes à la norme ISO 529, avec queue de 3.15mm et carré d'entraînement de 2.5mm, en HSS-E (acier rapide fritté) finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers non alliés d'usinage facile, les aciers au carbone, les aluminiums corroyés ou moulés, les cuivres ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E000M3
GradeLumineux
Product Number5973783
Product FamilyE000
Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.5906"
Usable Length — mm (LU)15.0 mm
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number567586
EAN7320760567586
File Type Download
E000M3 — Line Drawing PDF Download
