EX411.1/2
EX411.1/2
EX411.1/2

EX411.1/2

UGC DOR5973797
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,101.79 CAD - $1,101.79 CAD
$1,101.79 CAD
$1,101.79 CAD - $1,101.79 CAD
$1,101.79 CAD

Vendu en lots de : 1

Taraud machine à coupe à gauche à hélice brisée avec entrée C de 2-3 filets, pour filet de tuyauterie British Standard Pipe G 1.1/2" avec 11 filets par pouce et tolérance normale, dimensions selon la norme DIN 5156 avec queue de 36,0mm et carré d'entraînement de 29,0mm, en HSS-E fritté avec revêtement de surface bleui et angle d'hélice de 45° pour le taraudage de trous borgnes jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX411.1/2
GradeTrempé à la vapeur
Product Number5973797
Product FamilyEX41

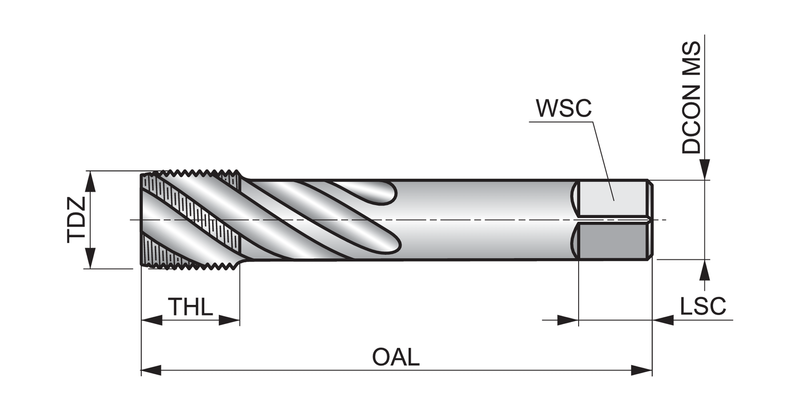

Dimensions
Overall Length — in (OAL)7.4803"
Overall Length — mm (OAL)190.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)1.4173"
Connection Dia. — mm (DCON)36.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)1,5
Thread Diameter — in (TD)1.882"
Thread Diameter — mm (TD)47.803 mm
Thread Form (THFT)G - Fixation de tuyauterie standard britannique - Série G
Threads per Inch (TPI)11.0
Tool Information
ShankQueue cylindrique à embase carrée
Direction of ToolD'accord
StandardDIN 5156
Reference Numbers
EDP Number168752
EAN7320760168752
File Type Download
EX411.1/2 — Line Drawing PDF Download
