EP301/4
EP301/4
EP301/4

EP301/4

UGC DOR5973829
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.27 CAD - $55.27 CAD
$55.27 CAD
$55.27 CAD - $55.27 CAD
$55.27 CAD

Vendu en lots de : 1

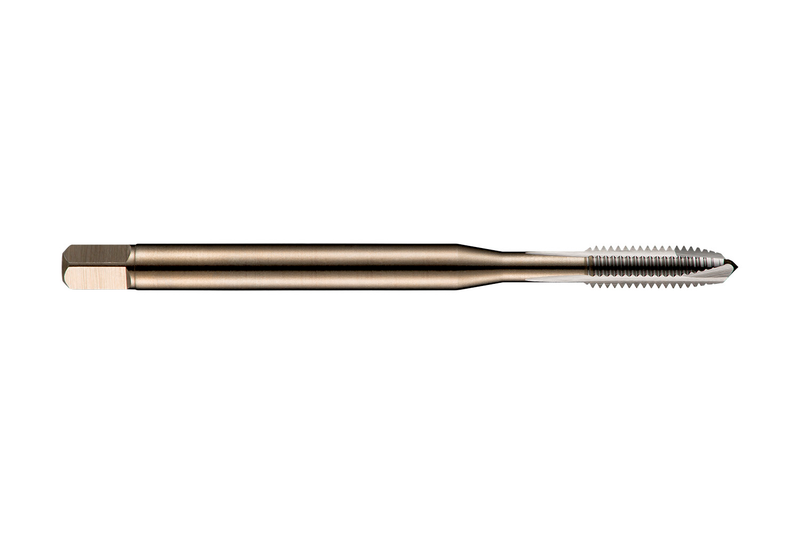

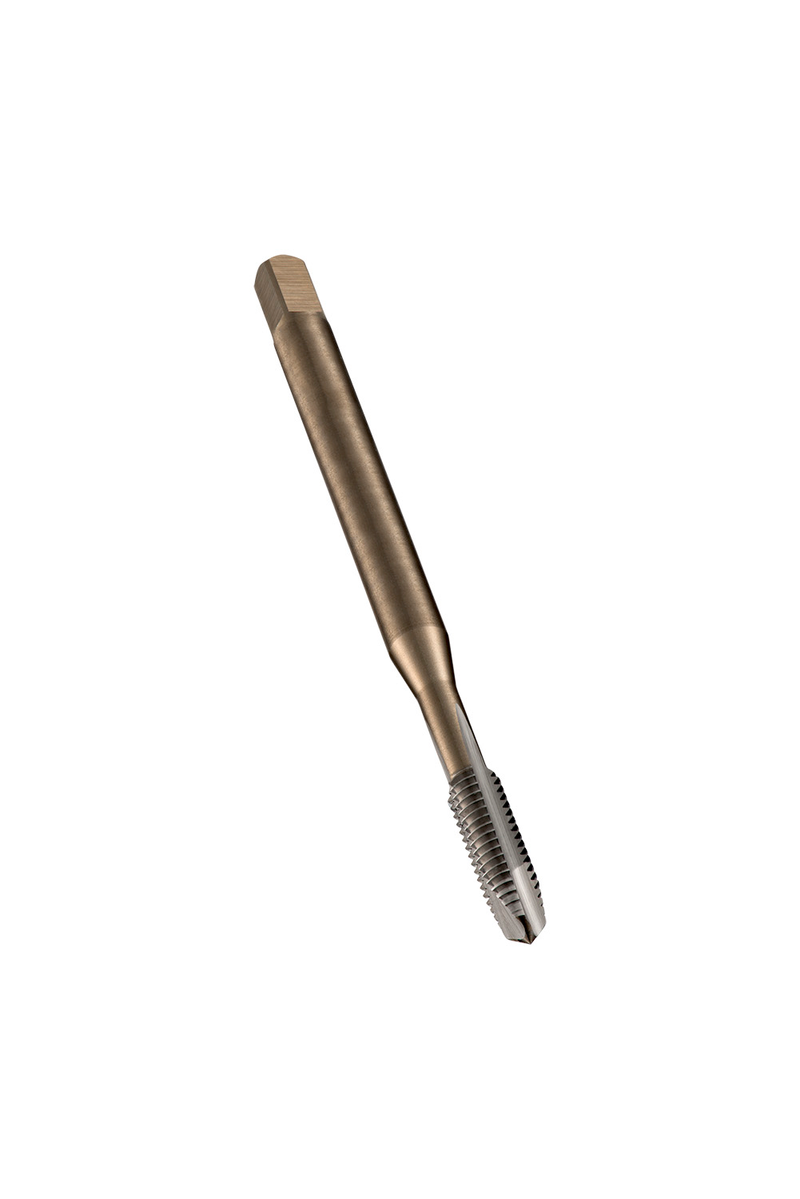

Taraud machine à pointe spirale, forme d'entrée C, avec goujure spirale à droite, chanfrein de 2-3 filets, pour filetage UNF 1/4" avec 28 filets par pouce et tolérance 2B, dimensions selon la norme DIN 2184-1 avec queue de 7,0 mm et carré d'entraînement de 5,5 mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers à usinage libre et au carbone non allié, l'aluminium corroyé ou coulé et le cuivre ou ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP301/4
GradeLumineux
Product Number5973829
Product FamilyEP30
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2756"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)UNF - Filetages Unifiés
Threads per Inch (TPI)28.0
Tool Information
ShankTige cylindrique à embase carrée
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138380
EAN7320760138380
File Type Download
EP301/4 — Line Drawing PDF Download
