E006M16
E006M16
E006M16

E006M16

UGC DOR5973878
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.23 CAD - $67.23 CAD
$67.23 CAD
$67.23 CAD - $67.23 CAD
$67.23 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale avec entrée B à 3.5-5 filets, pour filetage métrique ISO M16 au pas de 2,00 mm et tolérance 6H, dimensions conformes à la norme ANSI avec queue de 0,4800" et carré d'entraînement de 0,3600", en HSS-E PM avec finition de surface revenu vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E006M16
GradeTrempé à la vapeur
Product Number5973878
Product FamilyE006

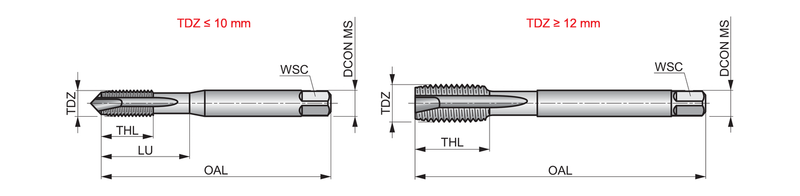

Dimensions
Overall Length — in (OAL)3.8125"
Overall Length — mm (OAL)96.84 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.48"
Connection Dia. — mm (DCON)12.19 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number580578
EAN7320760580578
File Type Download
E006M16 — Line Drawing PDF Download
