EP313/4
EP313/4
EP313/4

EP313/4

UGC DOR5973894
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.97 CAD - $205.97 CAD
$205.97 CAD
$205.97 CAD - $205.97 CAD
$205.97 CAD

Vendu en lots de : 1

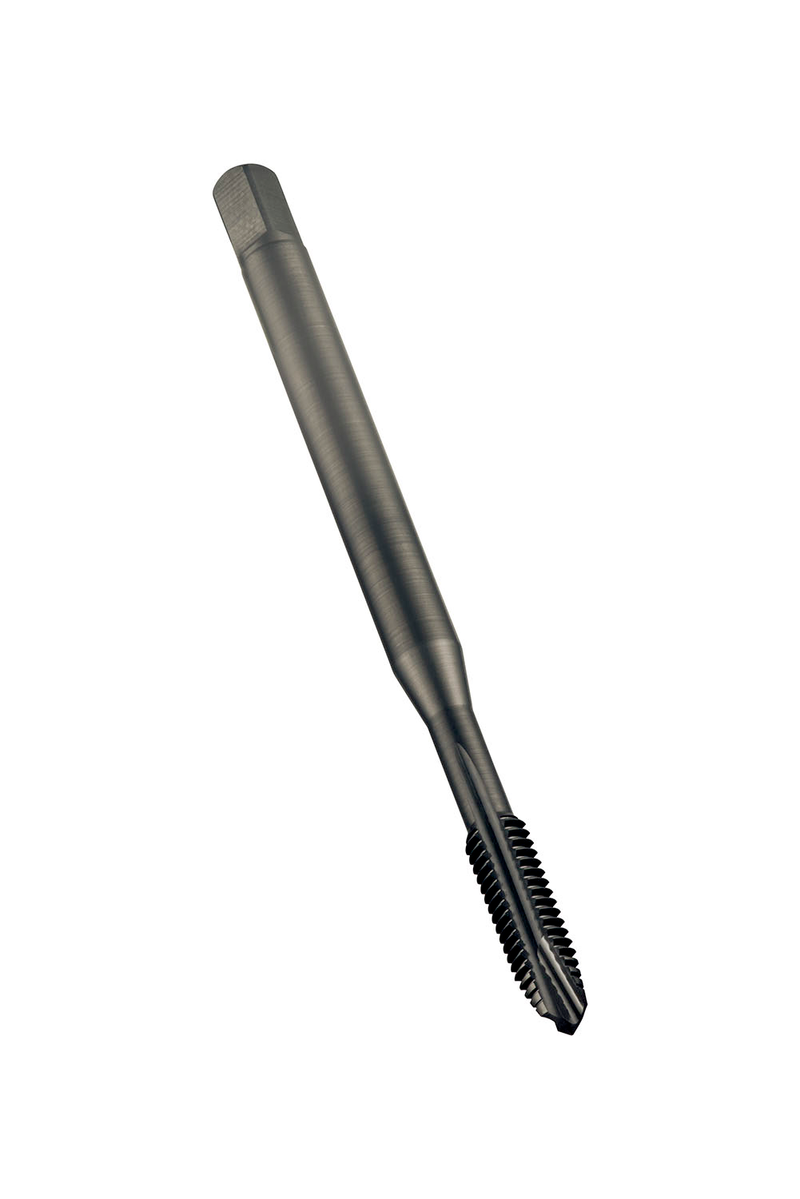

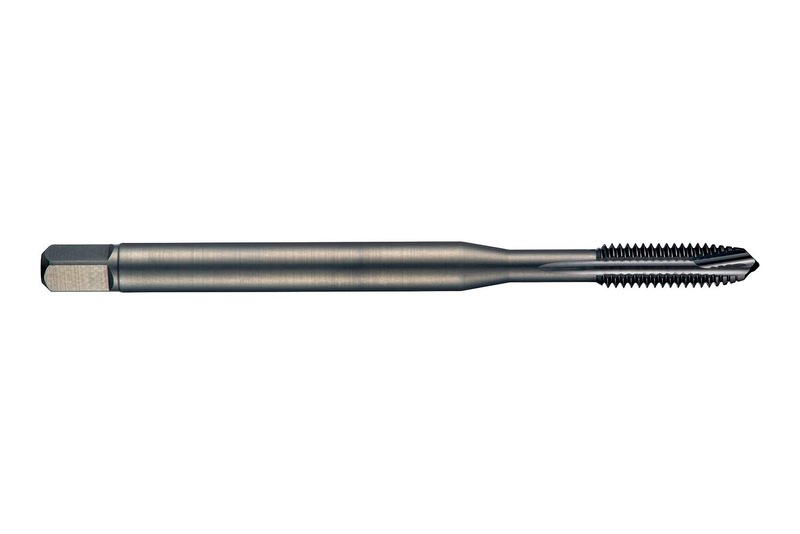

Taraud machine à pointe spirale avec chanfrein forme C, entrée 2-3xP, pour filetages Unified National Fine UNF 3/4" avec 16 TPI et classe de tolérance 2B, dimensions selon norme DIN 2184-1 avec queue de 14,0mm et carré d'entraînement de 11,0mm, en HSS-E fritté avec traitement de surface à la vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP313/4
GradeTrempé vapeur
Product Number5973894
Product FamilyEP31
Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)16.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138557
EAN7320760138557
File Type Download
EP313/4 — Line Drawing PDF Download
