EP315/16
EP315/16
EP315/16

EP315/16

UGC DOR5973904
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.91 CAD - $70.91 CAD
$70.91 CAD
$70.91 CAD - $70.91 CAD
$70.91 CAD

Vendu en lots de : 1

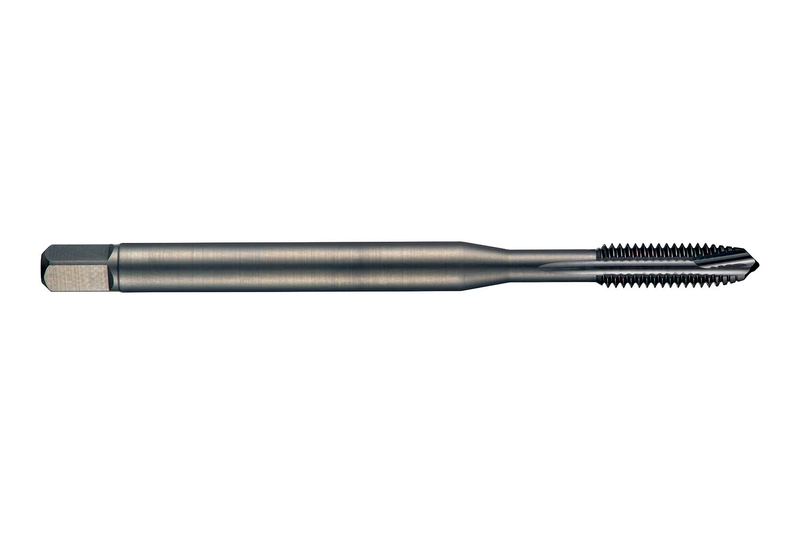

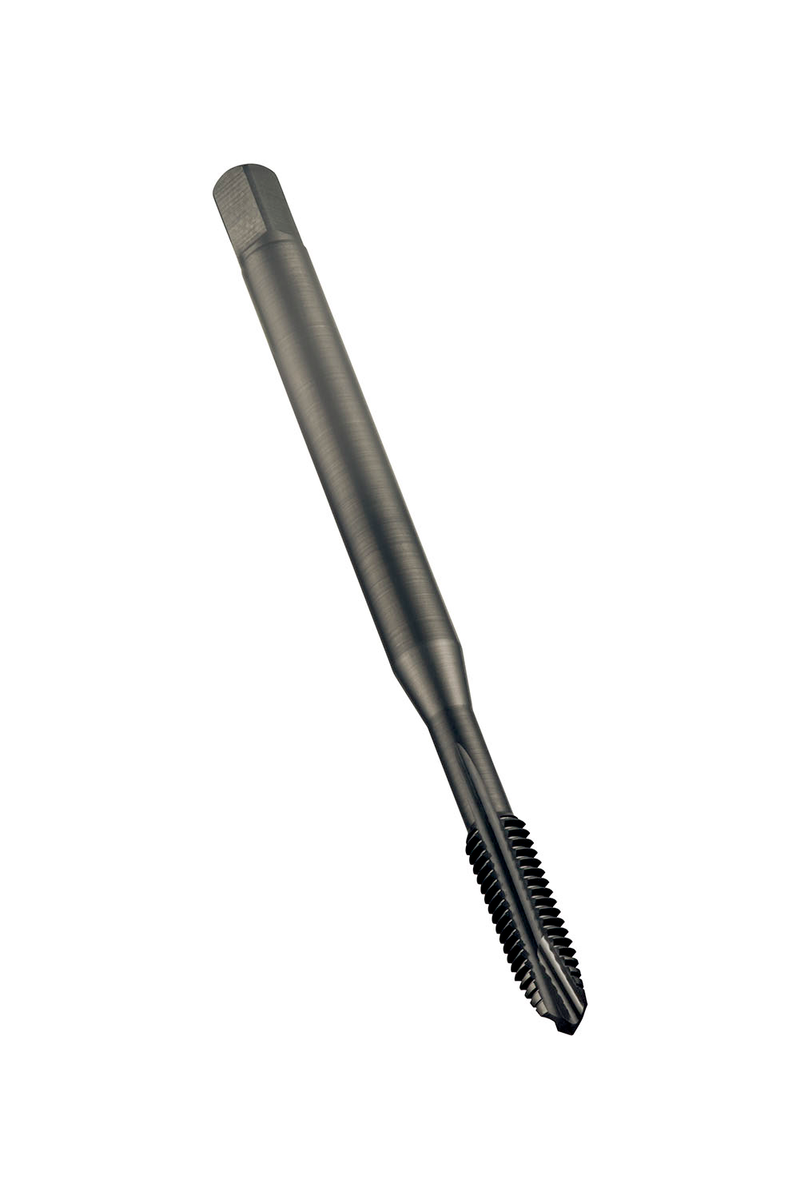

Taraud machine à pointe spirale et entrée C avec fausse coupe de 2-3 filets, pour filetage UNF 5/16" à 24 filets par pouce avec tolérance 2B, dimensions selon la norme DIN 2184-1 avec queue de 8,0mm et carré d'entraînement de 6,2mm, HSS-E issu de la métallurgie des poudres avec revêtement d'oxydation pour le taraudage de trous débouchants de 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP315/16
GradeTrempé à la vapeur
Product Number5973904
Product FamilyEP31
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3125"
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)24.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138502
EAN7320760138502
File Type Download
EP315/16 — Line Drawing PDF Download
