EP317/16
EP317/16
EP317/16

EP317/16

UGC DOR5973919
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.73 CAD - $102.73 CAD
$102.73 CAD
$102.73 CAD - $102.73 CAD
$102.73 CAD

Vendu en lots de : 1

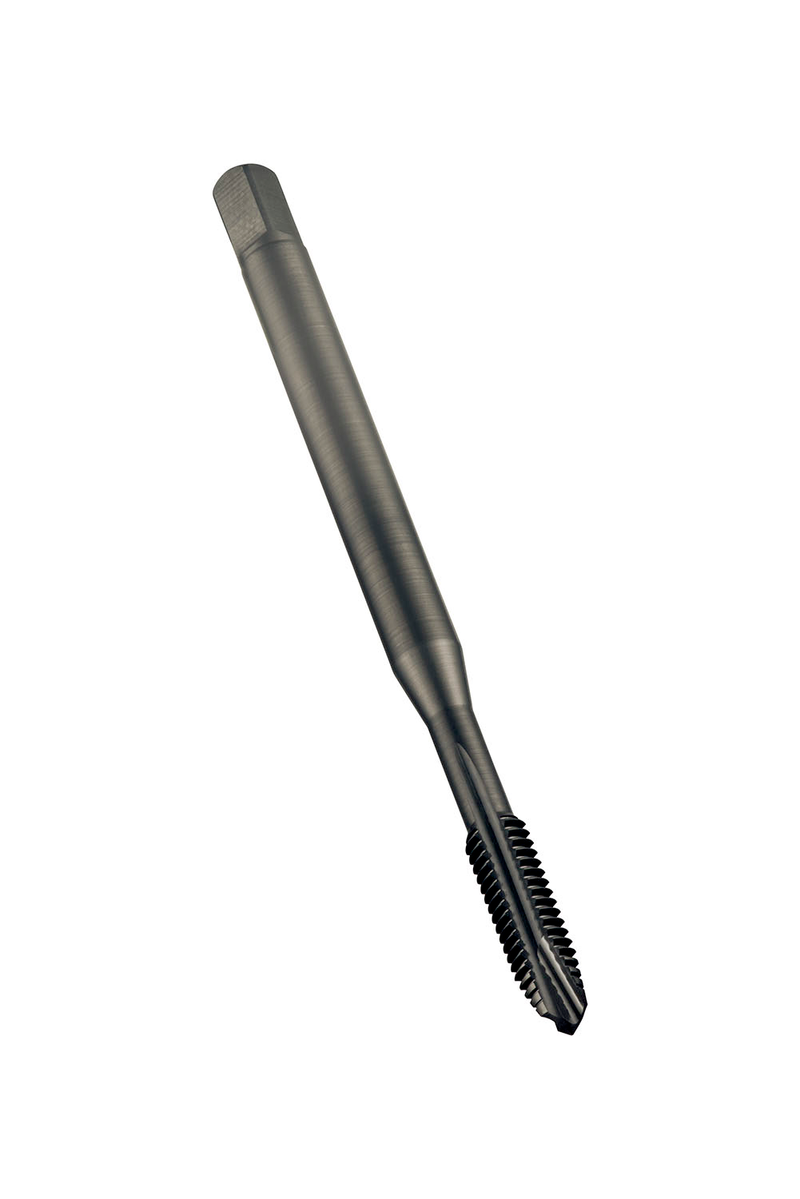

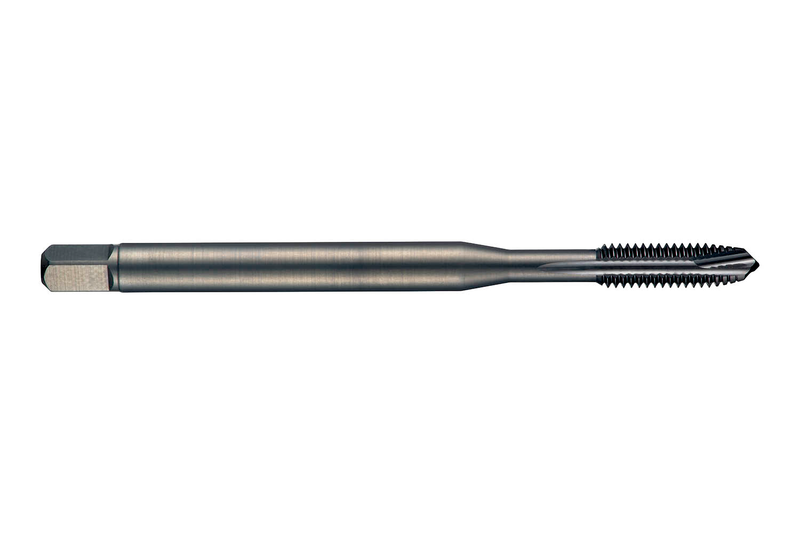

Taraud machine à pointe spirale avec entrée C et goujure droite, pour filetage UNF 7/16" à 20 filets par pouce et tolérance 2B, dimensions selon la norme DIN 2184-1 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, en HSS-E (acier rapide fritté) avec finition de surface revenu vapeur pour taraudage de trous débouchants jusqu'à 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP317/16
GradeTrempé à la vapeur
Product Number5973919
Product FamilyEP31
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16/7
Thread Diameter — in (TD)0.4375"
Thread Diameter — mm (TD)11.112 mm
Thread Form (THFT)UNF - Filetages fins unifiés
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138526
EAN7320760138526
File Type Download
EP317/16 — Line Drawing PDF Download
