EP318-36
EP318-36
EP318-36

EP318-36

UGC DOR5973927
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.14 CAD - $52.14 CAD
$52.14 CAD
$52.14 CAD - $52.14 CAD
$52.14 CAD

Vendu en lots de : 1

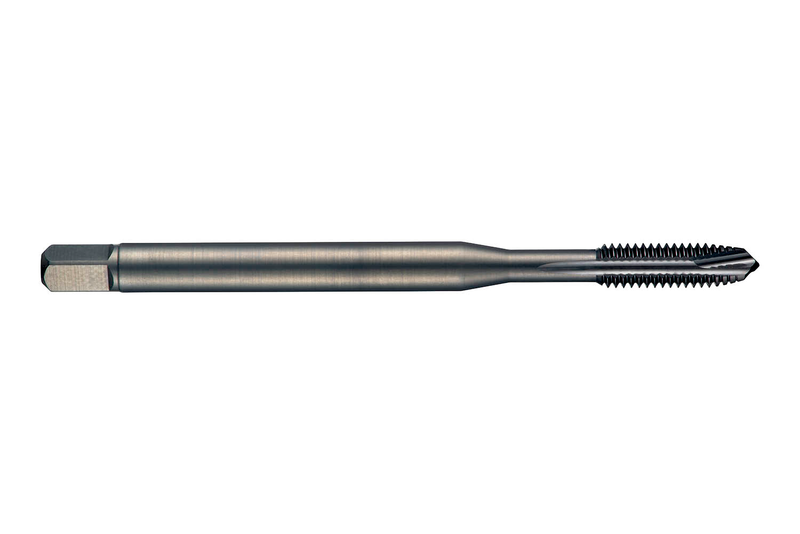

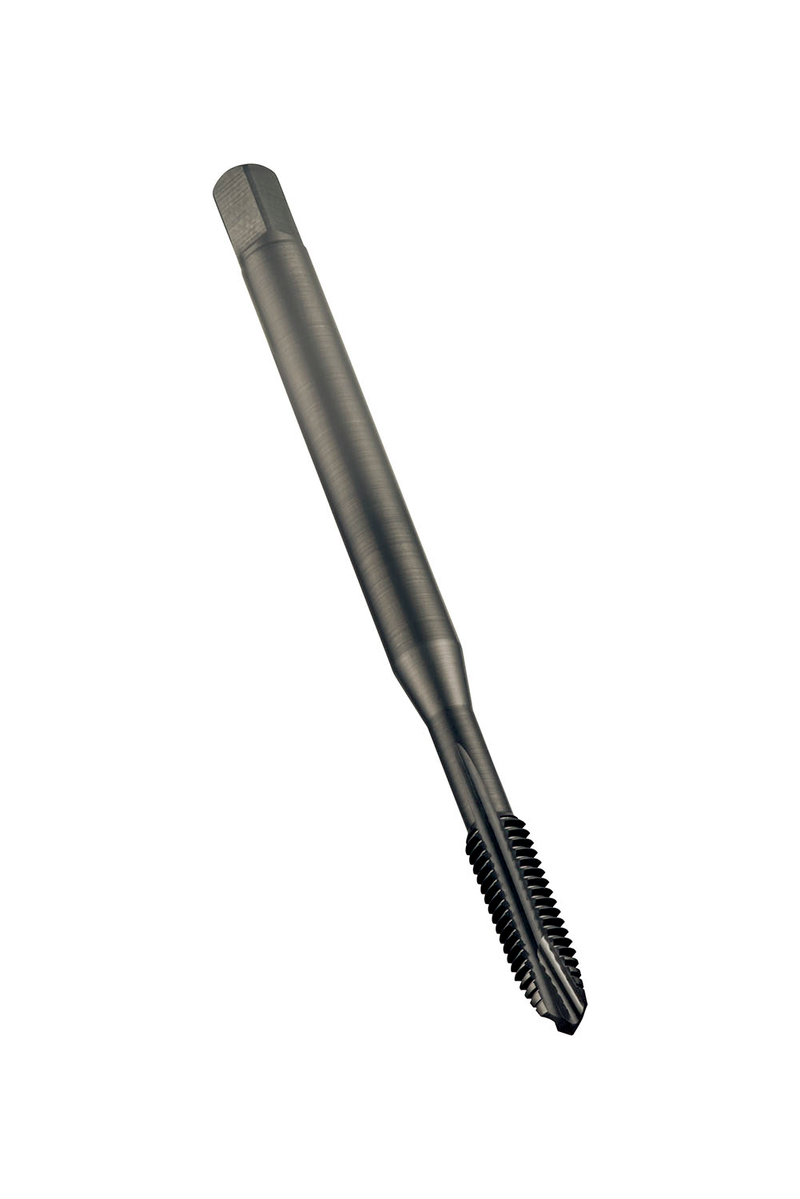

Taraud machine à pointe spirale, forme C chanfreinée avec une entrée de 2-3xP, pour filetage unifié national fin UNF 8 avec 36 TPI et classe de tolérance 2B, dimensions selon la norme DIN 2184-1 avec queue de 4,5mm et carré d'entraînement de 3,4mm, HSS-E métallurgie des poudres avec finition de surface trempée à la vapeur pour le taraudage de trous traversants de 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP318-36
GradeTrempé à la vapeur
Product Number5973927
Product FamilyEP31
Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — in (TD)0.164"
Thread Diameter — mm (TD)4.166 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)36.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138472
EAN7320760138472
File Type Download
EP318-36 — Line Drawing PDF Download
