UGC DOR5973932
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$199.76 CAD - $199.76 CAD
$199.76 CAD
$199.76 CAD - $199.76 CAD
$199.76 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale avec chanfrein forme B (entrée 3,5-5 filets) pour filetage gaz BSP G 3/4" avec 14 filets par pouce et tolérance Normale, dimensions selon DORMER-ISO avec queue de 20,0 mm et carré d'entraînement de 16,0 mm, en HSS-E PM avec finition de surface revenu vapeur pour le taraudage de trous débouchants jusqu'à 2,5xD dans des applications courantes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0413/4
GradeTrempé à la vapeur
Product Number5973932
Product FamilyE041

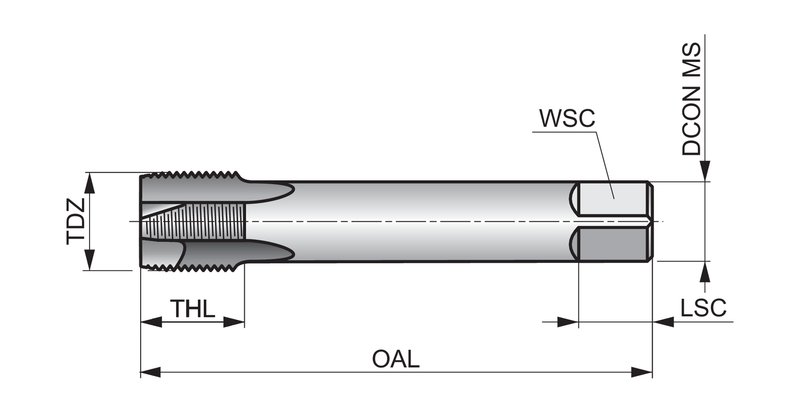

Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)1.041"
Thread Diameter — mm (TD)26.441 mm
Thread Form (THFT)G - Fixation de tuyauterie britannique standard - Série G
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number569856
EAN7320760569856
File Type Download
E0413/4 — Line Drawing PDF Download
