UGC DOR5973936
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$94.16 CAD - $94.16 CAD
$94.16 CAD
$94.16 CAD - $94.16 CAD
$94.16 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale et entrée B (3,5-5 filets) pour filet de tuyauterie britannique G 3/8" avec 19 filets par pouce et tolérance Normal, dimensions selon la norme DORMER-ISO avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en HSS-E PM avec finition de surface trempée à la vapeur pour le filetage de trous débouchants jusqu'à 2.5xD pour des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0413/8
GradeTrempé à la vapeur
Product Number5973936
Product FamilyE041

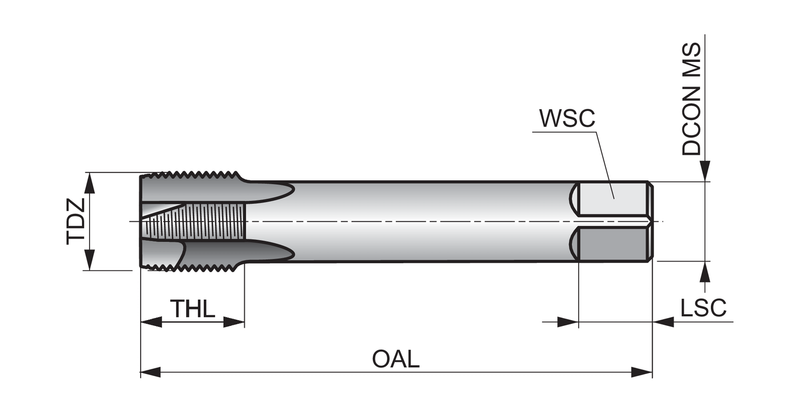

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.656"
Thread Diameter — mm (TD)16.662 mm
Thread Form (THFT)G - Raccordement de tuyauterie normalisé britannique - Série G
Threads per Inch (TPI)19.0
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number569832
EAN7320760569832
File Type Download
E0413/8 — Line Drawing PDF Download
