E006M4
E006M4
E006M4

E006M4

UGC DOR5973941
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.23 CAD - $16.23 CAD
$16.23 CAD
$16.23 CAD - $16.23 CAD
$16.23 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale avec entrée B à 3,5-5 filets, pour filet ISO-Métrique M4 au pas de 0,70 mm et classe de tolérance 6H, dimensions selon norme ANSI avec queue de 0,1680" et carré d'entraînement de 0,1310", en HSS-E fritté avec finition de surface trempée à la vapeur pour le taraudage de trous débouchants jusqu'à 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E006M4
GradeTrempé à la vapeur
Product Number5973941
Product FamilyE006

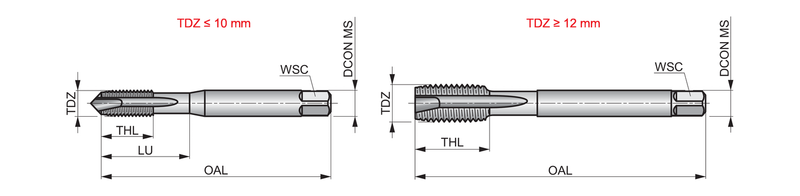

Dimensions
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.6526"
Usable Length — mm (LU)16.58 mm
Connection Dia. — in (DCON)0.168"
Connection Dia. — mm (DCON)4.27 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number580462
EAN7320760580462
File Type Download
E006M4 — Line Drawing PDF Download
