UGC DOR5973975
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$252.37 CAD - $252.37 CAD
$252.37 CAD
$252.37 CAD - $252.37 CAD
$252.37 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale, forme d'entrée B 3,5-5xP, pour filetages British Standard Pipe G 3/4" avec 14 filets par pouce et tolérance normale, dimensions selon la norme DIN 5156 avec queue 20,0 mm et carré d'entraînement 16,0 mm, HSS-E (acier rapide fritté) avec finition de surface revenu vapeur pour filetage 2.5xD de trous débouchants dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP413/4
GradeTrempé à la vapeur
Product Number5973975
Product FamilyPE41

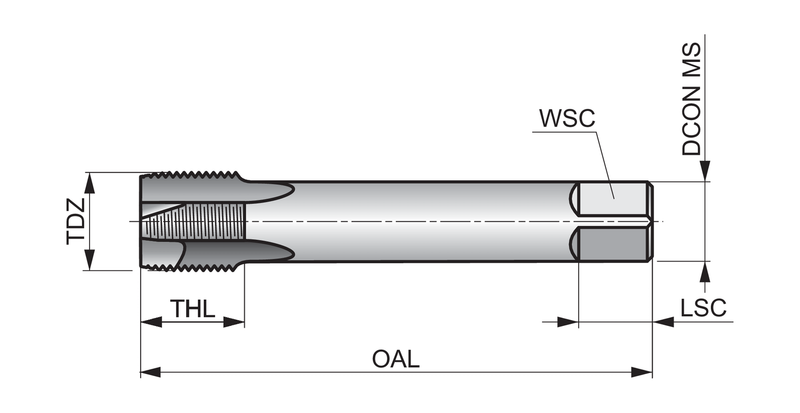

Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)1.041"
Thread Diameter — mm (TD)26.441 mm
Thread Form (THFT)G - Fixation de tuyau de norme britannique - Série G
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 5156
Reference Numbers
EDP Number147054
EAN7320760147054
File Type Download
EP413/4 — Line Drawing PDF Download
