EP215/16
EP215/16
EP215/16

EP215/16

UGC DOR5973989
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.19 CAD - $65.19 CAD
$65.19 CAD
$65.19 CAD - $65.19 CAD
$65.19 CAD

Vendu en lots de : 1

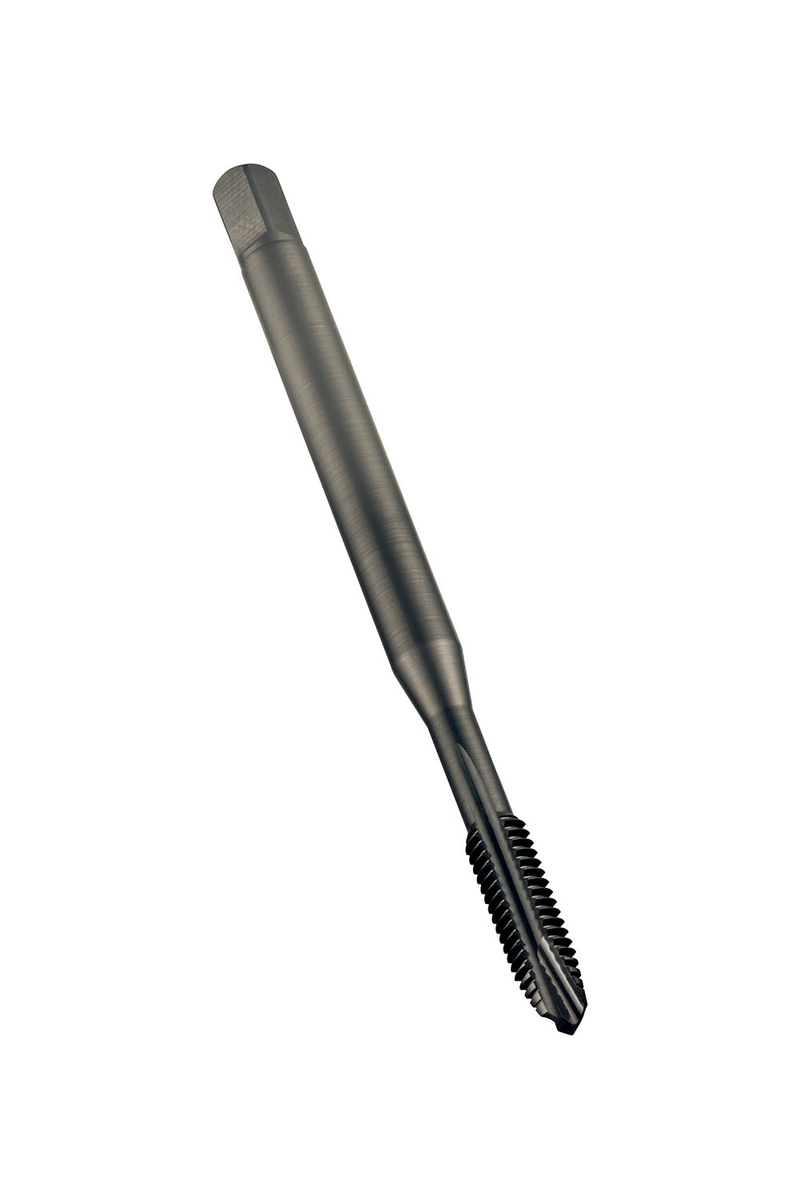

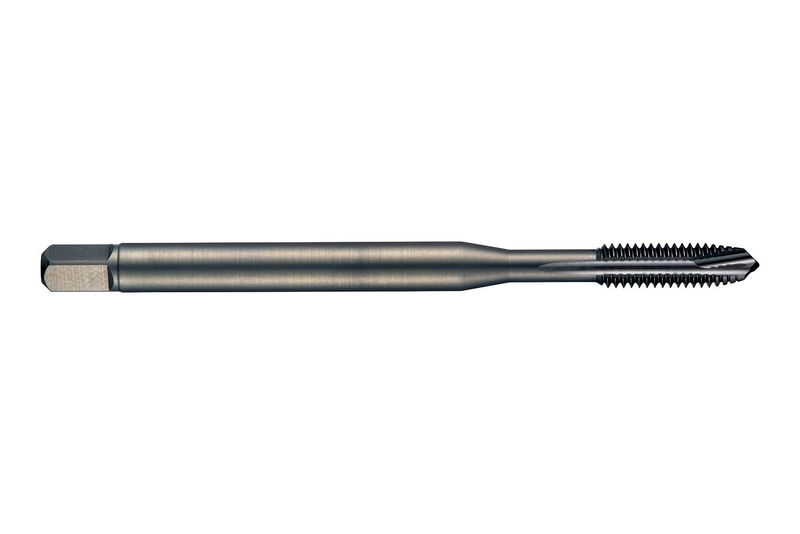

Taraud machine à pointe spirale avec chanfrein forme B (entrée 3.5-5xP) pour filet UNC (Unified National Coarse) 5/16" à 18 filets au pouce et classe de tolérance 2B, dimensions conformes à la norme DIN 2184-1 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, en HSS-E PM avec finition de surface revenu vapeur, pour le taraudage de trous débouchants jusqu'à 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP215/16
GradeTrempé à la vapeur
Product Number5973989
Product FamilyEP21
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3125"
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)UNC - Unifiée Grossier
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138281
EAN7320760138281
File Type Download
EP215/16 — Line Drawing PDF Download
