EX403/8
EX403/8
EX403/8

EX403/8

UGC DOR5974225
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$94.39 CAD - $94.39 CAD
$94.39 CAD
$94.39 CAD - $94.39 CAD
$94.39 CAD

Vendu en lots de : 1

Taraud machine à goujures hélicoïdales et chanfrein forme C (entrée 2-3 filets) pour filetage British Standard Pipe G 3/8" avec 19 filets par pouce et classe de tolérance normale, dimensions selon la norme DIN 5156, queue de 12,0 mm et carré d'entraînement de 9,0 mm, en HSS-E fritté avec finition brillante et angle d'hélice de 45° pour filetage de trous borgnes jusqu'à 2,5xD dans les aciers de décolletage et au carbone non alliés, ainsi que l'aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX403/8
GradeLumineux
Product Number5974225
Product FamilyEX40

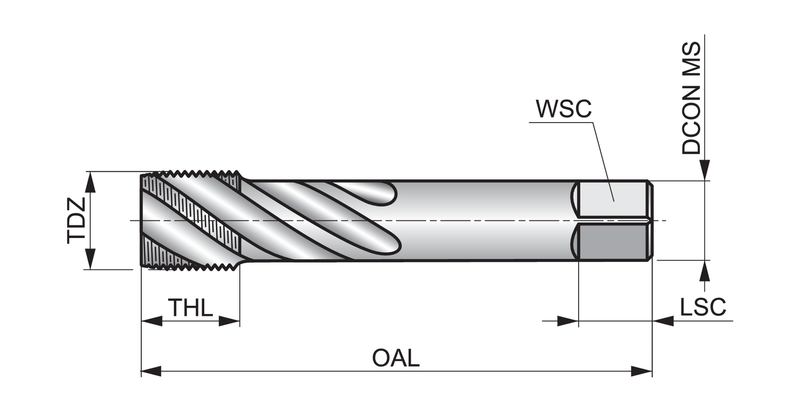

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.656"
Thread Diameter — mm (TD)16.662 mm
Thread Form (THFT)G - Raccord de tuyauterie britannique - Série G
Threads per Inch (TPI)19.0
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 5156
Reference Numbers
EDP Number168561
EAN7320760168561
File Type Download
EX403/8 — Line Drawing PDF Download
