E002M5
E002M5
E002M5

E002M5

UGC DOR5974316
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.27 CAD - $23.27 CAD
$23.27 CAD
$23.27 CAD - $23.27 CAD
$23.27 CAD

Vendu en lots de : 1

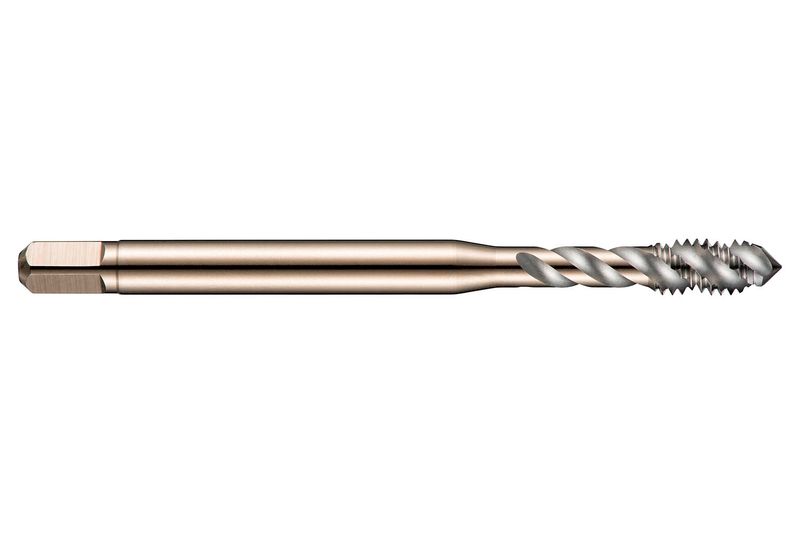

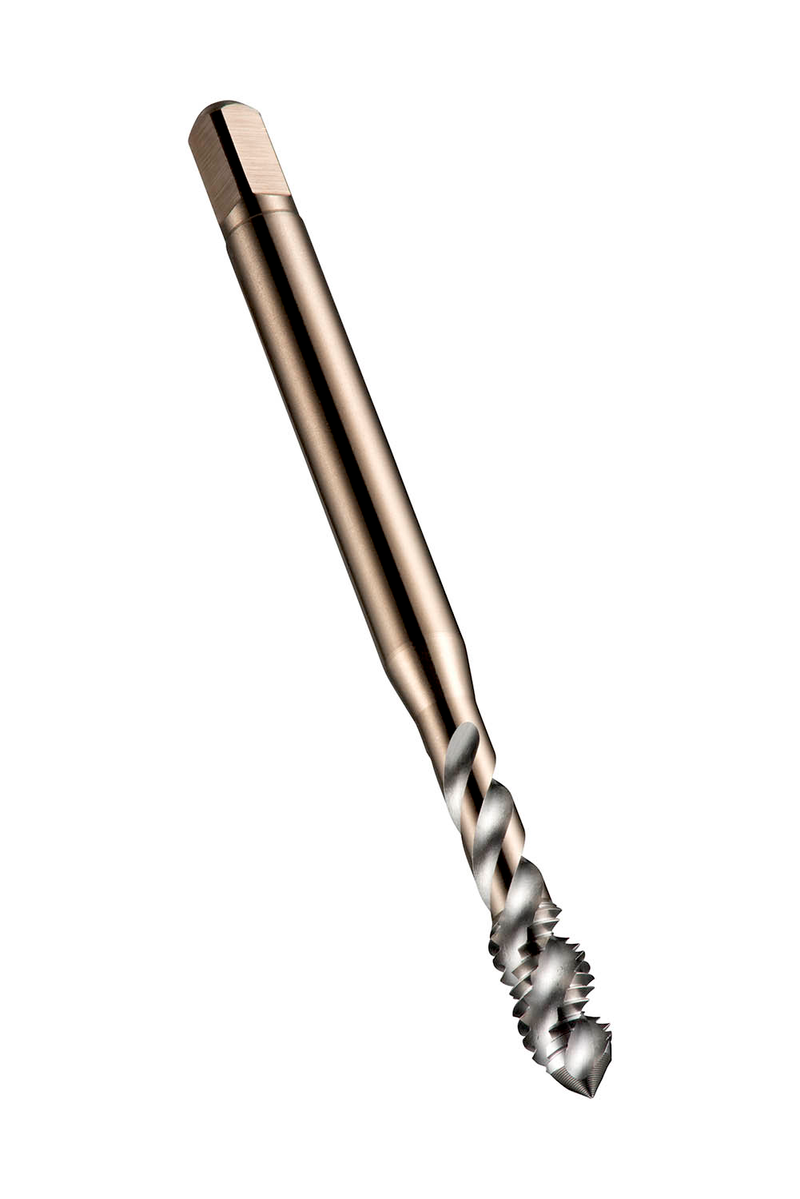

Taraud machine à goujures hélicoïdales et chanfrein forme C, entrée 2-3 filets, pour filet métrique ISO M5 au pas de 0,80 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 5,0 mm et carré d'entraînement de 4,0 mm, en HSS-E fritté avec finition brillante et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2.5xD dans les aciers de décolletage, aciers au carbone non alliés et aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E002M5
GradeLumineux
Product Number5974316
Product FamilyE002
Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.8661"
Usable Length — mm (LU)22.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number567890
EAN7320760567890
File Type Download
E002M5 — Line Drawing PDF Download
