E005M6
E005M6
E005M6

E005M6

UGC DOR5974469
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.49 CAD - $16.49 CAD
$16.49 CAD
$16.49 CAD - $16.49 CAD
$16.49 CAD

Vendu en lots de : 1

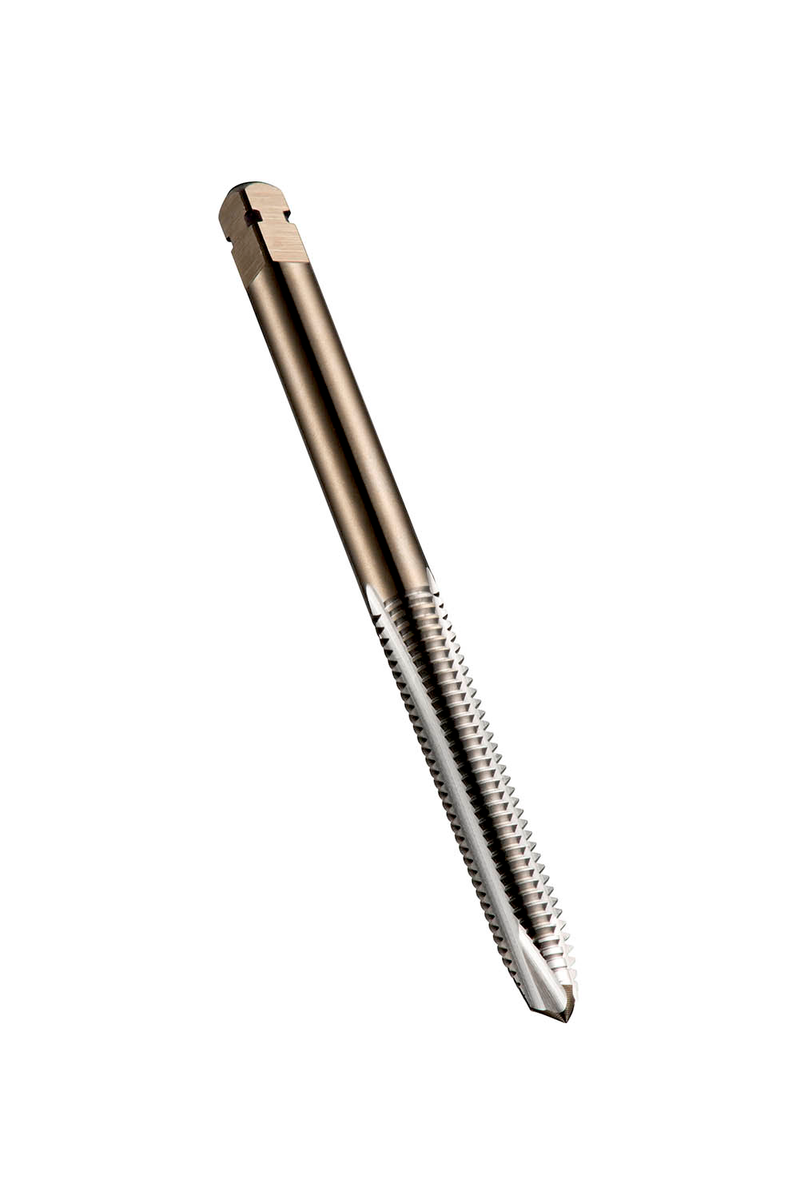

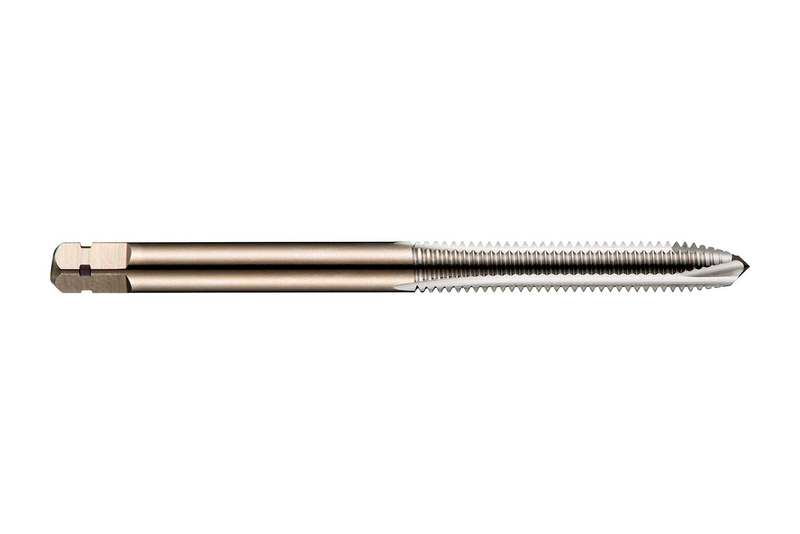

Taraud machine à pointe spirale et entrée B de 3.5-5xP, pour filetage ISO-Métrique M6 au pas de 1.00 mm et tolérance 6H, dimensions selon la norme ANSI avec queue de 0.2550" et carré d'entraînement de 0.1910", en HSS-E produit par métallurgie des poudres, finition brillante, pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers de décolletage et au carbone non allié ainsi que les alliages d'aluminium corroyés ou coulés et les alliages de cuivre ou le cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E005M6
GradeLumineux
Product Number5974469
Product FamilyE005

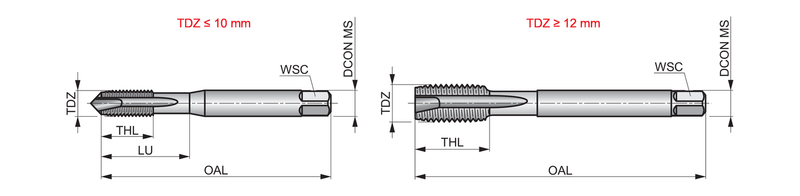

Dimensions
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.0073"
Usable Length — mm (LU)25.59 mm
Connection Dia. — in (DCON)0.255"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number580349
EAN7320760580349
File Type Download
E005M6 — Line Drawing PDF Download
