E006M103FL
E006M103FL
E006M103FL

E006M103FL

UGC DOR5974488
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.03 CAD - $31.03 CAD
$31.03 CAD
$31.03 CAD - $31.03 CAD
$31.03 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale avec entrée B à 3,5-5 filets, pour filetage ISO-Métrique M10 au pas de 1,50 mm et classe de tolérance 6H, dimensions selon la norme ANSI avec queue de 0,3810" et carré d'entraînement de 0,2860", en HSS-E PM avec finition de surface revenu vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E006M103FL
GradeTrempé à la vapeur
Product Number5974488
Product FamilyE006

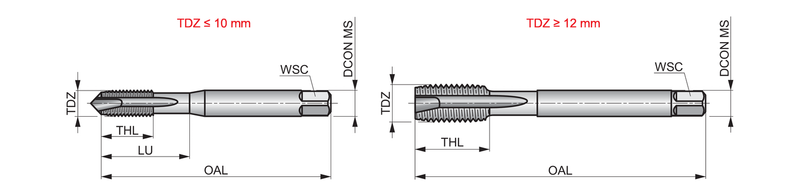

Dimensions
Overall Length — in (OAL)2.9375"
Overall Length — mm (OAL)74.61 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.2915"
Usable Length — mm (LU)32.8 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number580530
EAN7320760580530
File Type Download
E006M103FL — Line Drawing PDF Download
