E105M12X1.0NO9
E105M12X1.0NO9
E105M12X1.0NO9
E105M12X1.0NO9

E105M12X1.0NO9

UGC DOR5974971
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$83.96 CAD - $83.96 CAD
$83.96 CAD
$83.96 CAD - $83.96 CAD
$83.96 CAD

Vendu en lots de : 1

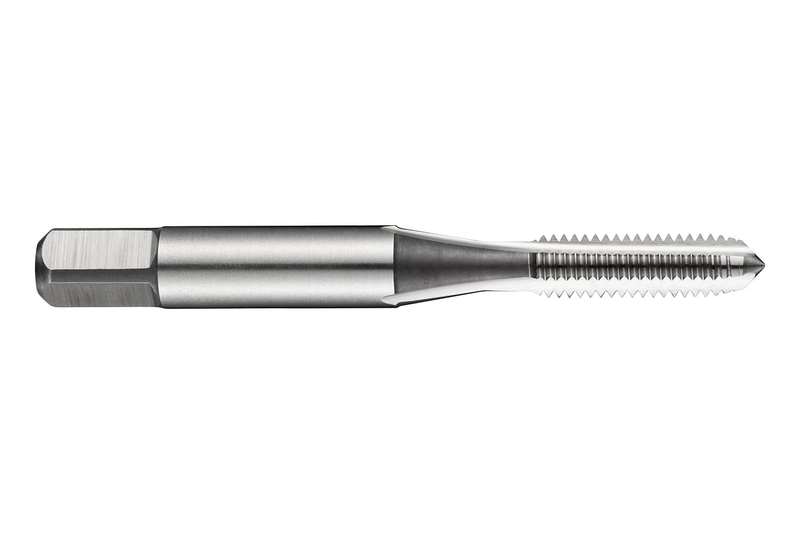

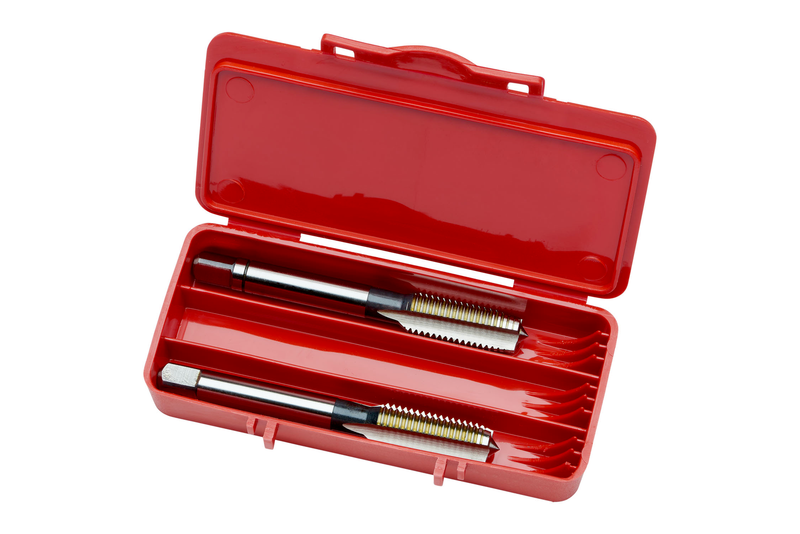

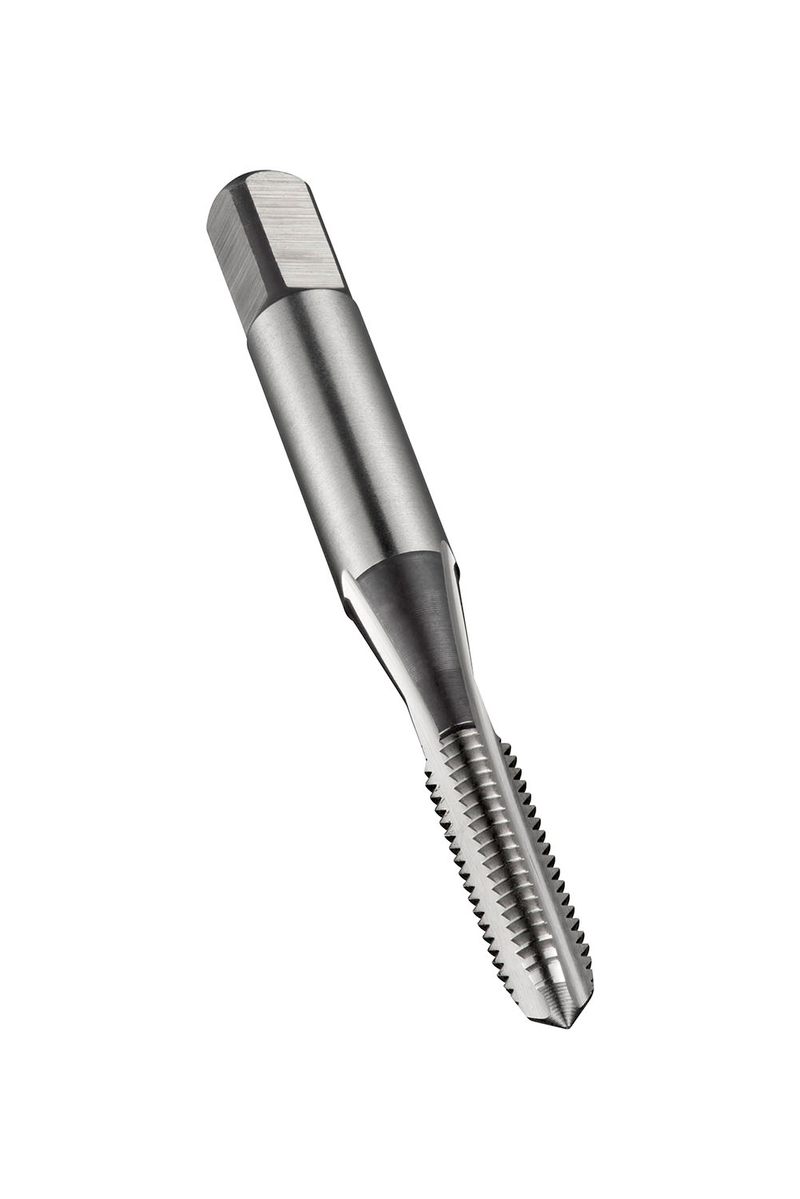

Jeu de tarauds machine en HSSE à goujures droites, NO9, pour filetage métrique ISO fin M12 au pas de 1,00 mm, tolérance 6H, comprenant 1 taraud ébaucheur à entrée progressive (3,5-5 filets) et 1 taraud finisseur à entrée courte (2-3 filets), dimensions selon la norme DIN 2181 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, finition brillante, pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E105M12X1.0NO9
GradeLumineux
Product Number5974971
Product FamilyE105

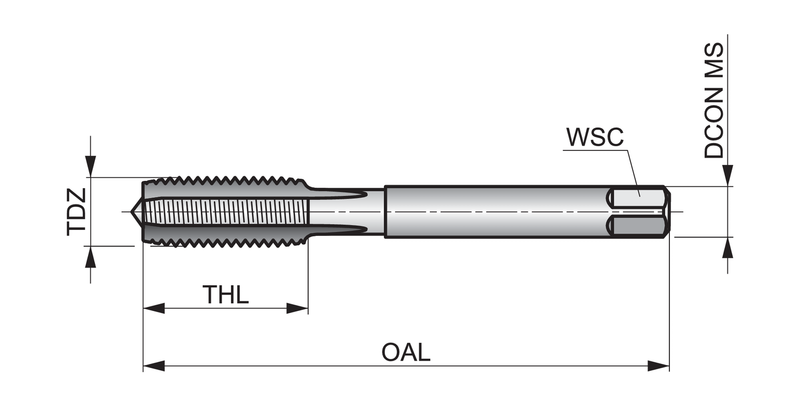

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)MF - Filetage fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2181
Reference Numbers
EDP Number80375
EAN7320760080375
File Type Download
E105M12X1.0NO9 — Line Drawing PDF Download
