E2781
E2781
E2781

E2781

UGC DOR5975088
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$211.19 CAD - $211.19 CAD
$211.19 CAD
$211.19 CAD - $211.19 CAD
$211.19 CAD

Vendu en lots de : 1

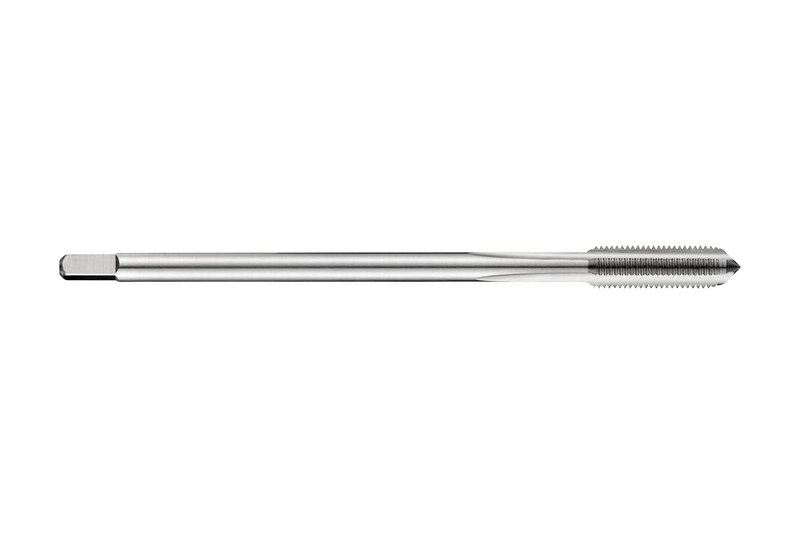

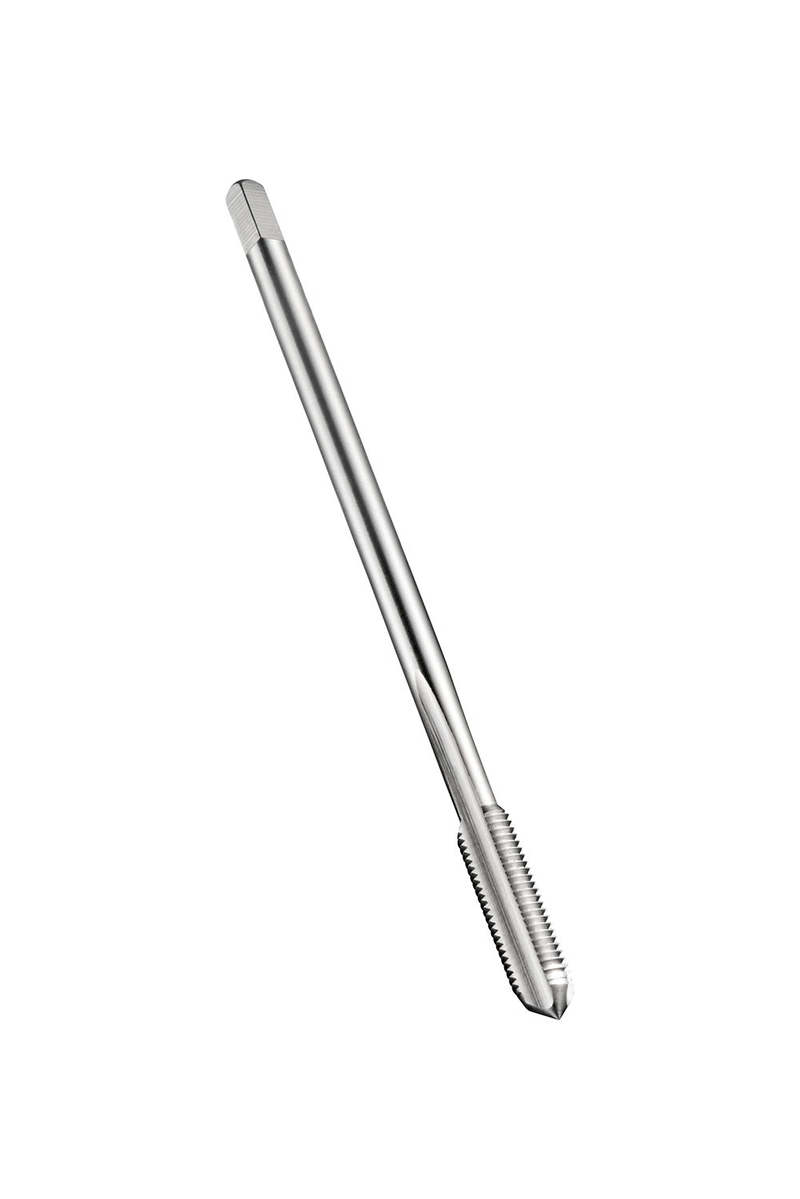

Taraud droit forme C avec entrée 2-3xP, pour filetage Unified National Fine UNF 1" avec 12 filets par pouce et classe de tolérance 2B, dimensions selon norme DIN 374 avec queue de 18,0 mm et carré d'entraînement de 14,5 mm, en HSS-E PM brillant pour taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2781
GradeLumineux
Product Number5975088
Product FamilyE278
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.0"
Thread Diameter — mm (TD)25.4 mm
Thread Form (THFT)UNF - Filetage fin unifié
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number89569
EAN7320760089569
File Type Download
E2781 — Line Drawing PDF Download
