E268M32X2.0
E268M32X2.0
E268M32X2.0

E268M32X2.0

UGC DOR5975100
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$269.59 CAD - $269.59 CAD
$269.59 CAD
$269.59 CAD - $269.59 CAD
$269.59 CAD

Vendu en lots de : 1

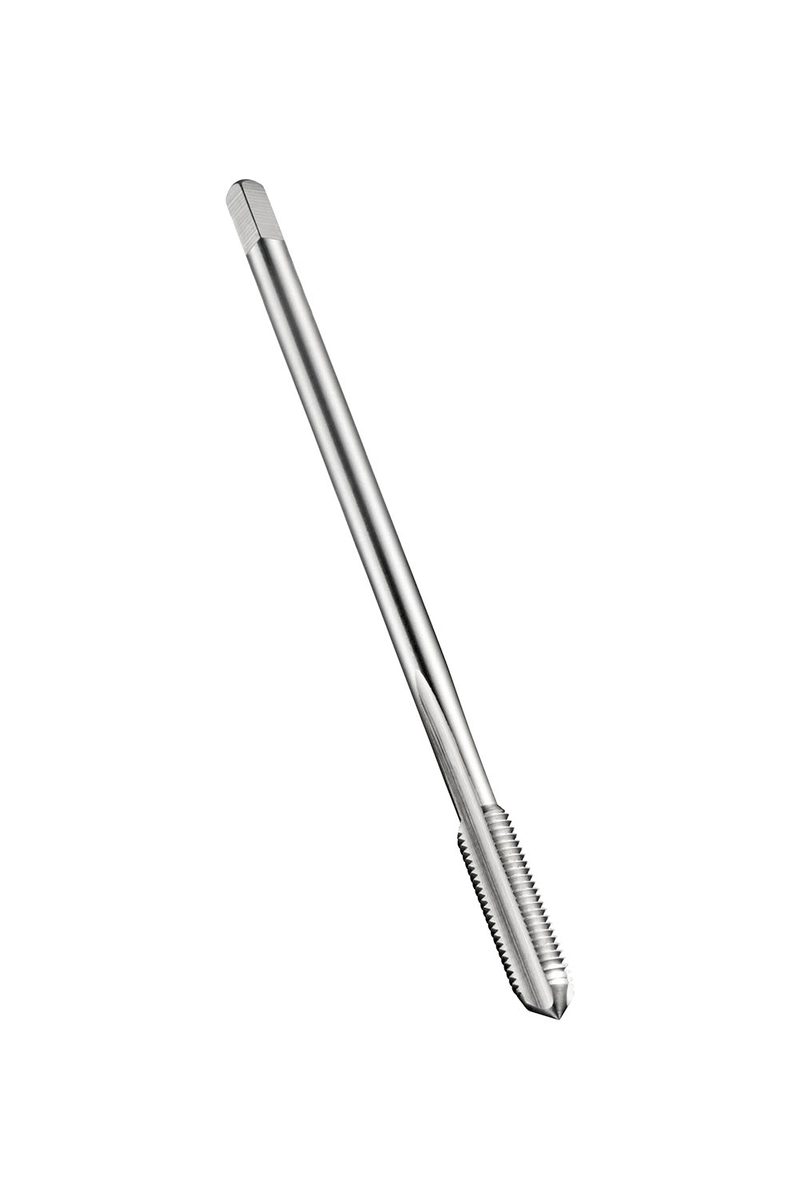

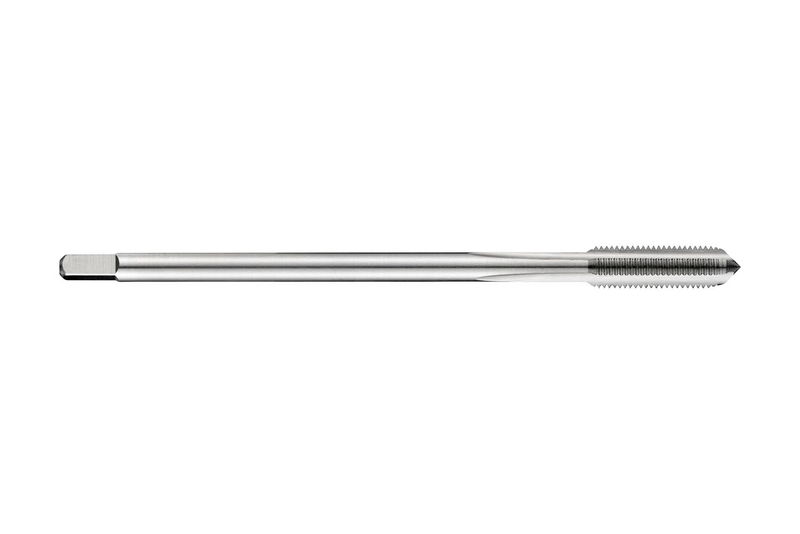

Taraud droit avec chanfrein forme C, entrée 2-3xP, pour filetage métrique fin ISO M32 au pas de 2,00 mm, classe de tolérance 6H, dimensions selon norme DIN 374 avec queue de 22,0 mm et carré d'entraînement de 18,0 mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI)E268M32X2,0
Product Name (ISO)E268M32X2.0
GradeLumineux
Product Number5975100
Product FamilyE268
Dimensions
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)32
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number88777
EAN7320760088777
File Type Download
E268M32X2.0 — Line Drawing PDF Download
