E268M34X1,5
E268M34X1,5
E268M34X1,5

E268M34X1,5

UGC DOR5975108
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$347.27 CAD - $347.27 CAD
$347.27 CAD
$347.27 CAD - $347.27 CAD
$347.27 CAD

Vendu en lots de : 1

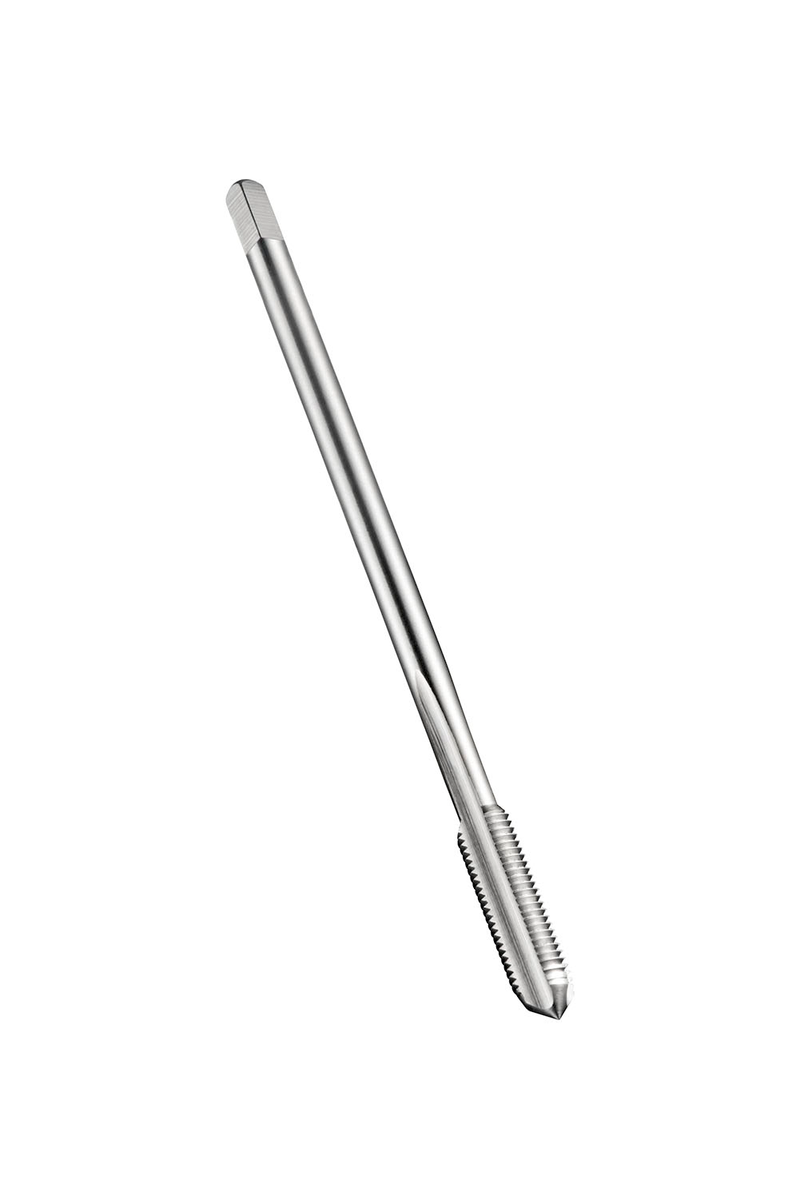

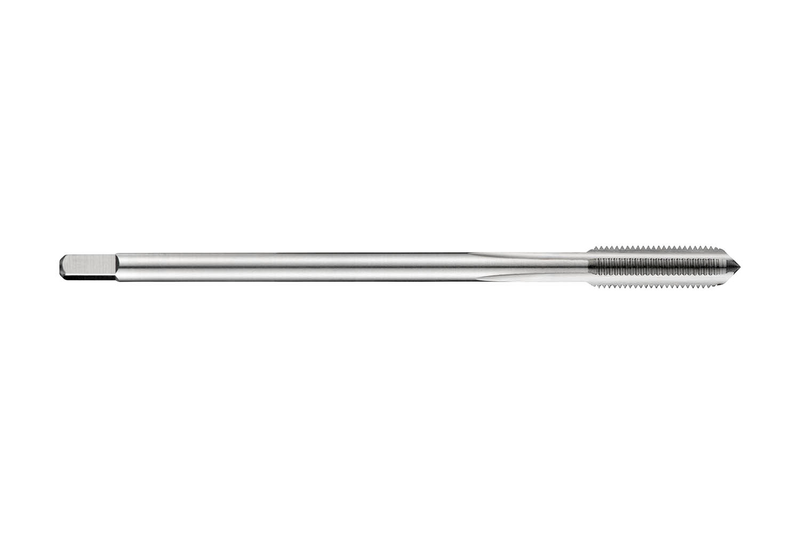

Taraud droit avec chanfrein forme C et entrée progressive 2-3xP, pour filetage ISO-Métrique Fin M34 au pas de 1,50 mm et tolérance 6H, dimensions selon la norme DIN 374 avec queue de 28,0 mm et carré d'entraînement de 22,0 mm, en HSS-E métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes de profondeur 1,5xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI)E268M34X1.5
Product Name (ISO)E268M34X1,5
GradeLumineux
Product Number5975108
Product FamilyE268
Dimensions
Overall Length — in (OAL)6.6929"
Overall Length — mm (OAL)170.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.1024"
Connection Dia. — mm (DCON)28.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)34
Thread Form (THFT)MF - Pas métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number124338
EAN7320760124338
File Type Download

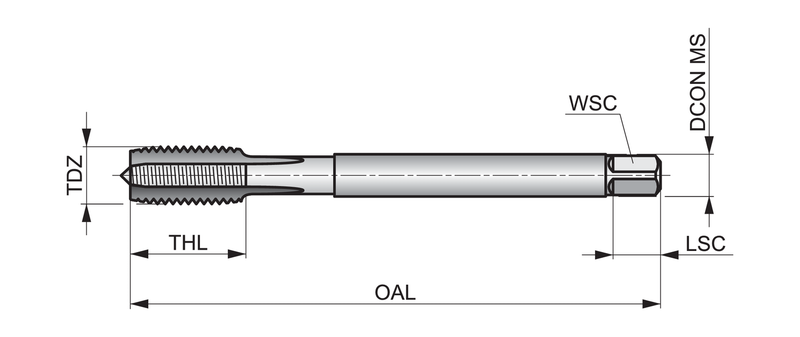

E268M34X1,5 — Line Drawing PDF Download
