UGC DOR5975135
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$226.30 CAD - $226.30 CAD
$226.30 CAD
$226.30 CAD - $226.30 CAD
$226.30 CAD

Vendu en lots de : 1

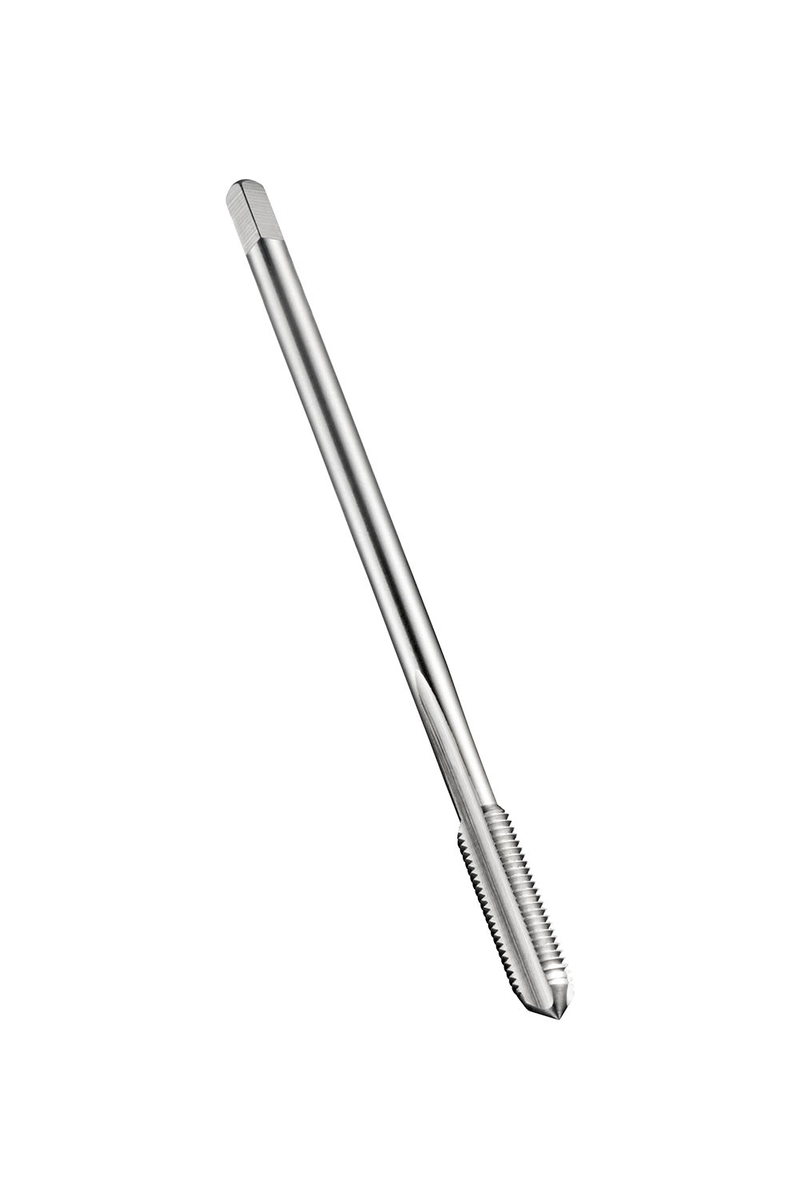

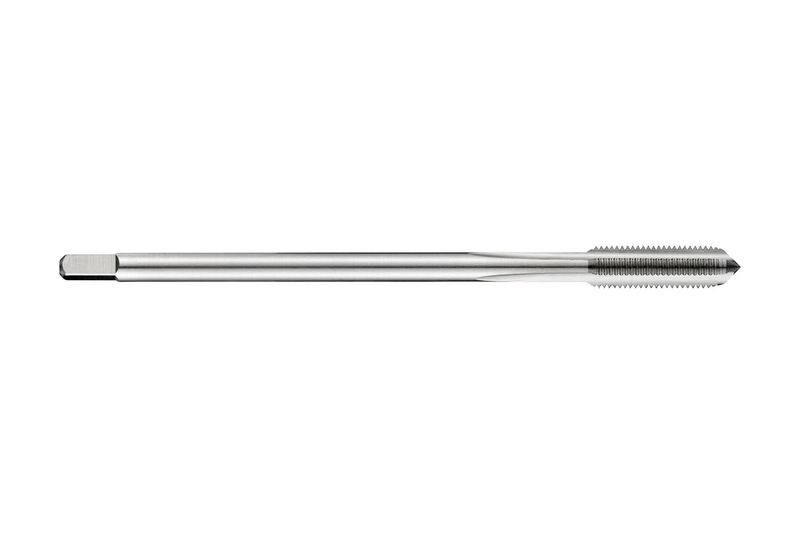

Taraud droit chanfrein forme C, entrée 2-3xP, pour filetages Unified National Fine UNF 7/8" à 14 filets par pouce et tolérance 2B, dimensions selon norme DIN 374 avec queue de 18,0mm et carré d'entraînement de 14,5mm, en HSS-E PM, finition brillante, pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2787/8
GradeLumineux
Product Number5975135
Product FamilyE278
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)7/8
Thread Diameter — in (TD)0.8752"
Thread Diameter — mm (TD)22.23 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number89675
EAN7320760089675
File Type Download
E2787/8 — Line Drawing PDF Download
