E268M40X2.0
E268M40X2.0
E268M40X2.0

E268M40X2.0

UGC DOR5975137
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$544.90 CAD - $544.90 CAD
$544.90 CAD
$544.90 CAD - $544.90 CAD
$544.90 CAD

Vendu en lots de : 1

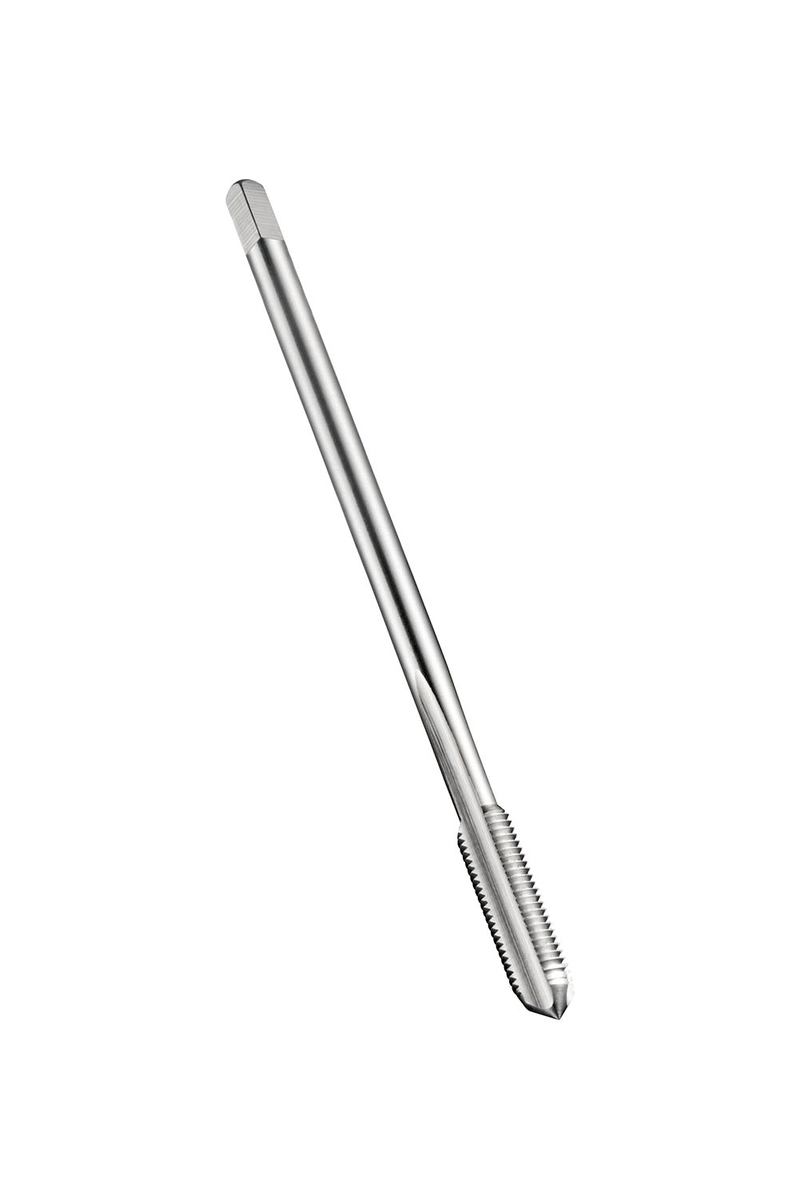

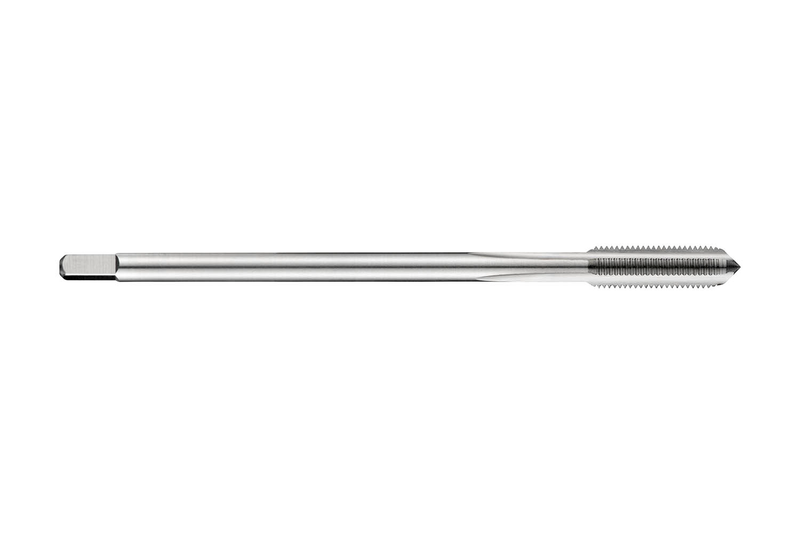

Taraud droit avec chanfrein forme C et entrée 2-3xP, pour filetage métrique fin ISO M40 au pas de 2,00 mm et qualité 6H, dimensions selon norme DIN 374 avec queue de 32,0 mm et carré d'entraînement de 24,0 mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E268M40X2.0
GradeLumineux
Product Number5975137
Product FamilyE268
Dimensions
Overall Length — in (OAL)6.6929"
Overall Length — mm (OAL)170.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)40
Thread Form (THFT)MF - Pas métrique fin
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number88838
EAN7320760088838
File Type Download
E268M40X2.0 — Line Drawing PDF Download
