UGC DOR5975138
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$101.69 CAD - $101.69 CAD
$101.69 CAD
$101.69 CAD - $101.69 CAD
$101.69 CAD

Vendu en lots de : 1

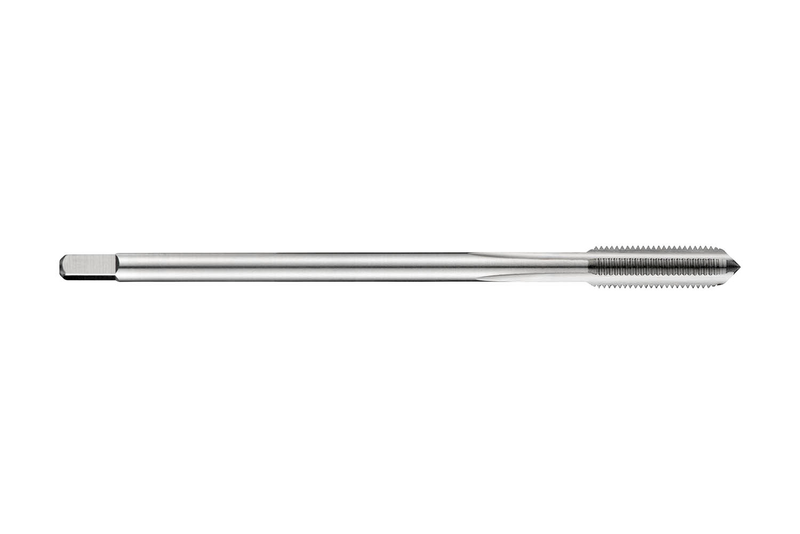

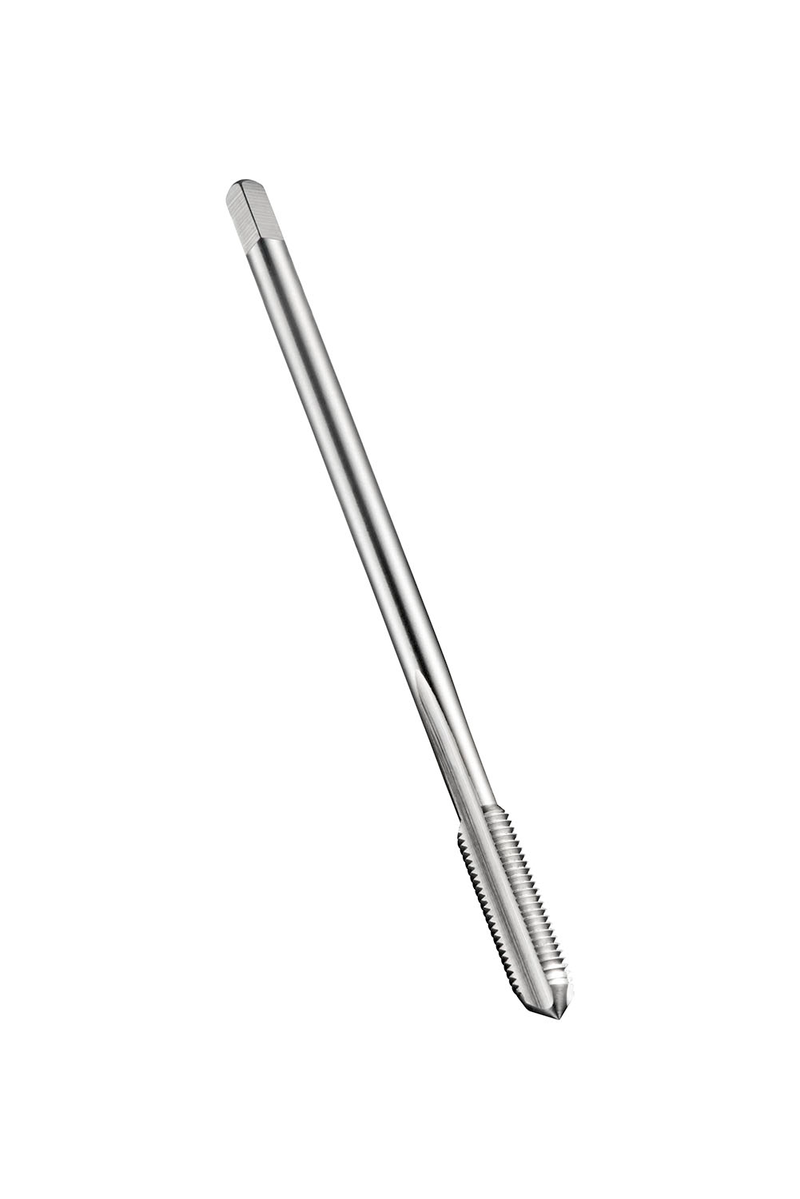

Taraud droit avec chanfrein forme C avec entrée 2-3xP, pour filetage Unified National Fine UNF 9/16" à 18 filets au pouce et classe de tolérance 2B, dimensions selon la norme DIN 374 avec queue de 11,0 mm et carré d'entraînement de 9,0 mm, HSS-E métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2789/16
GradeLumineux
Product Number5975138
Product FamilyE278

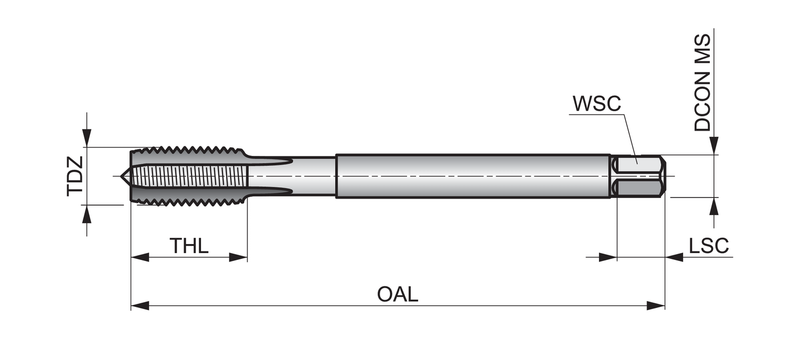

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16/9
Thread Diameter — in (TD)0.5626"
Thread Diameter — mm (TD)14.29 mm
Thread Form (THFT)UNF - Pas fin uniforme
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number89682
EAN7320760089682
File Type Download
E2789/16 — Line Drawing PDF Download
