E268M42X3.0
E268M42X3.0
E268M42X3.0

E268M42X3.0

UGC DOR5975159
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$511.53 CAD - $511.53 CAD
$511.53 CAD
$511.53 CAD - $511.53 CAD
$511.53 CAD

Vendu en lots de : 1

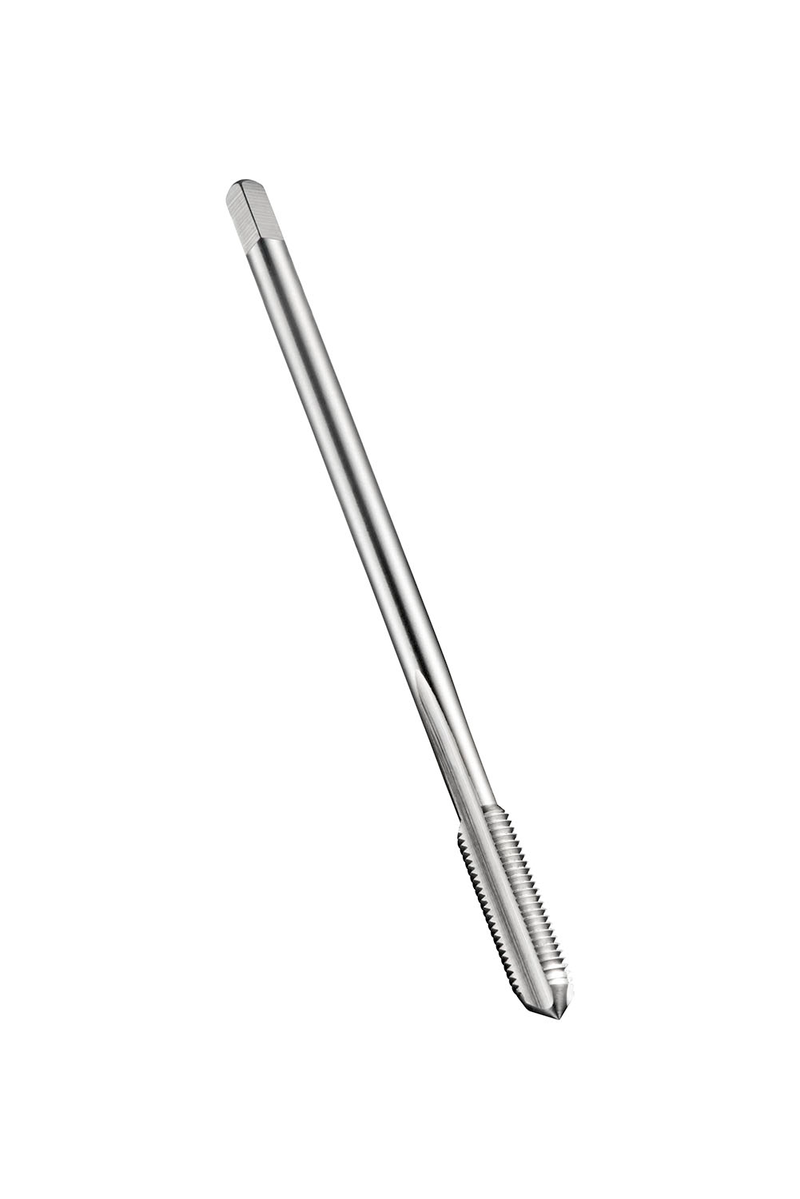

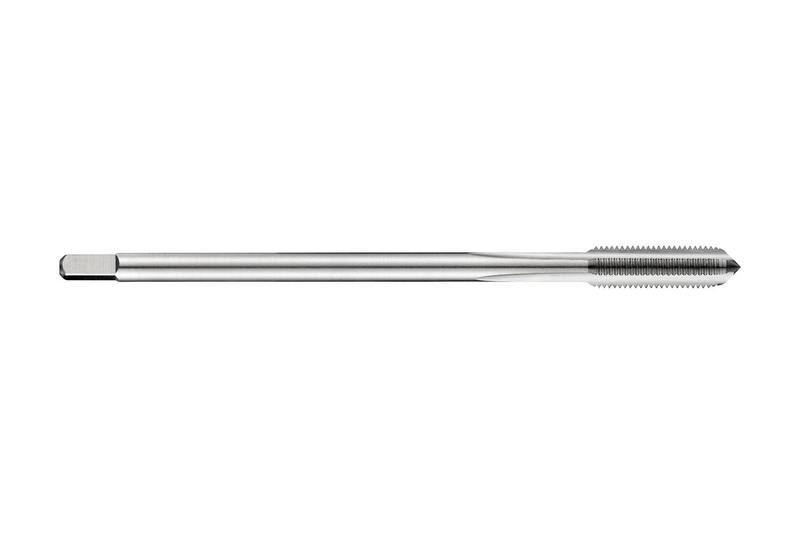

Taraud droit avec chanfrein forme C, entrée 2-3 filets, pour filetage ISO-métrique fin M42 au pas de 3,00 mm, tolérance 6H, dimensions selon norme DIN 374, queue de 32,0 mm et carré d'entraînement de 24,0 mm, en HSS-E PM, finition brillante, pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E268M42X3.0
GradeLumineux
Product Number5975159
Product FamilyE268
Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)42
Thread Form (THFT)MF - Pas fin (métrique)
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number88869
EAN7320760088869
File Type Download
E268M42X3.0 — Line Drawing PDF Download
