E268M10X.75
E268M10X.75
E268M10X.75

E268M10X.75

UGC DOR5975177
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.91 CAD - $47.91 CAD
$47.91 CAD
$47.91 CAD - $47.91 CAD
$47.91 CAD

Vendu en lots de : 1

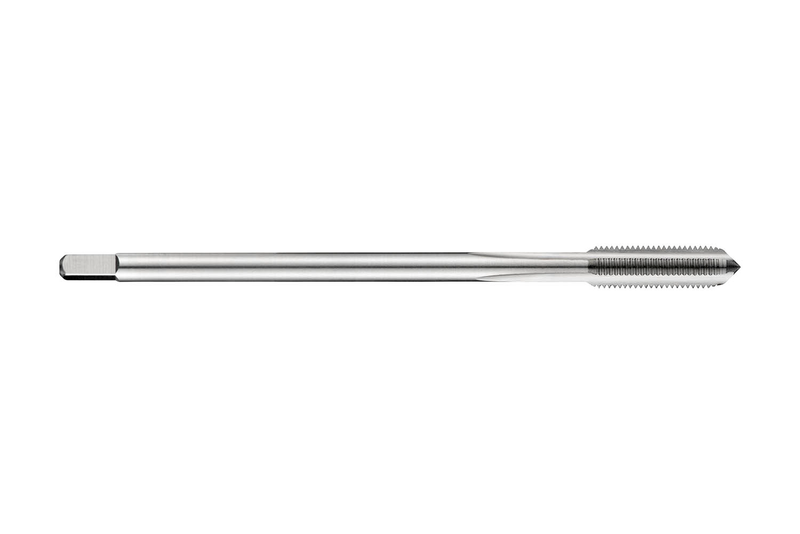

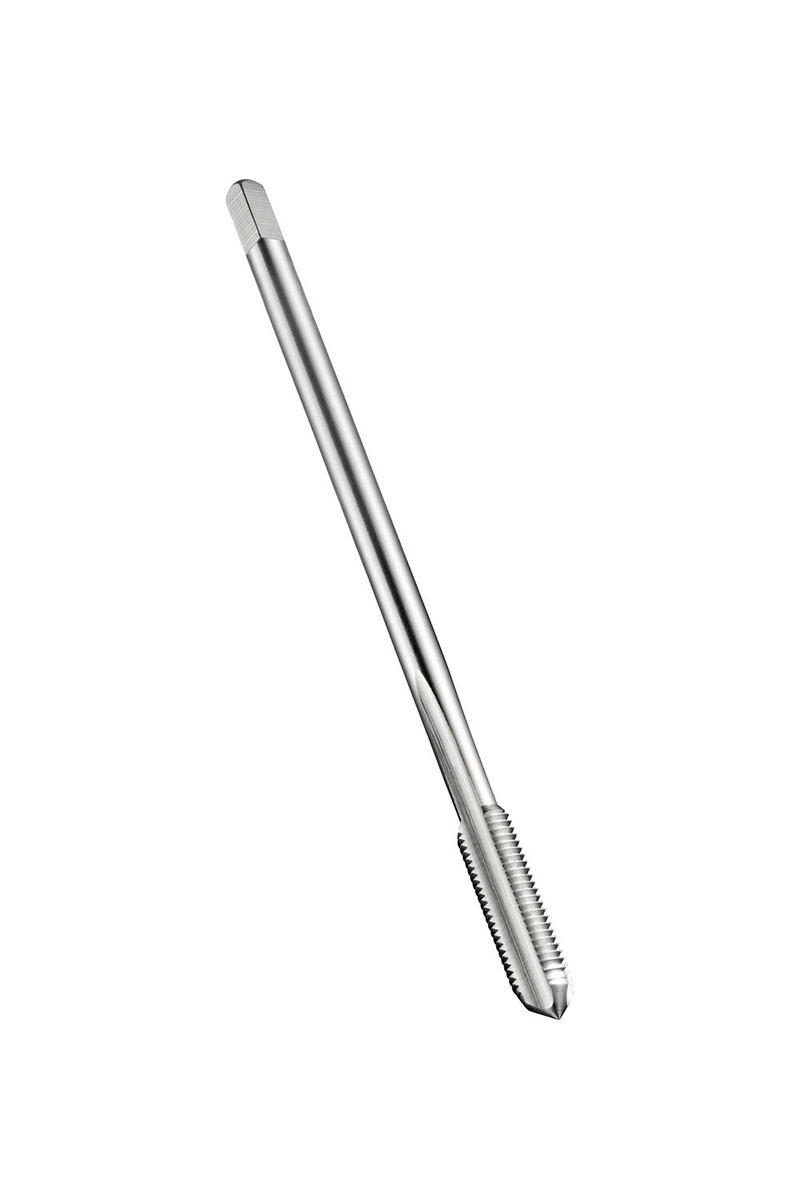

Taraud à gorge droite avec chanfrein forme C, entrée 2-3 filets, pour filetage ISO-Métrique Fin M10 au pas de 0,75 mm et de classe de tolérance 6H, dimensions selon norme DIN 374 avec queue de 7,0 mm et carré d'entraînement de 5,5 mm, en HSS-E PM avec finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers automates et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E268M10X.75
GradeLumineux
Product Number5975177
Product FamilyE268
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2756"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number88470
EAN7320760088470
File Type Download
E268M10X.75 — Line Drawing PDF Download
