E268M16X1.0
E268M16X1.0
E268M16X1.0

E268M16X1.0

UGC DOR5975213
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.74 CAD - $66.74 CAD
$66.74 CAD
$66.74 CAD - $66.74 CAD
$66.74 CAD

Vendu en lots de : 1

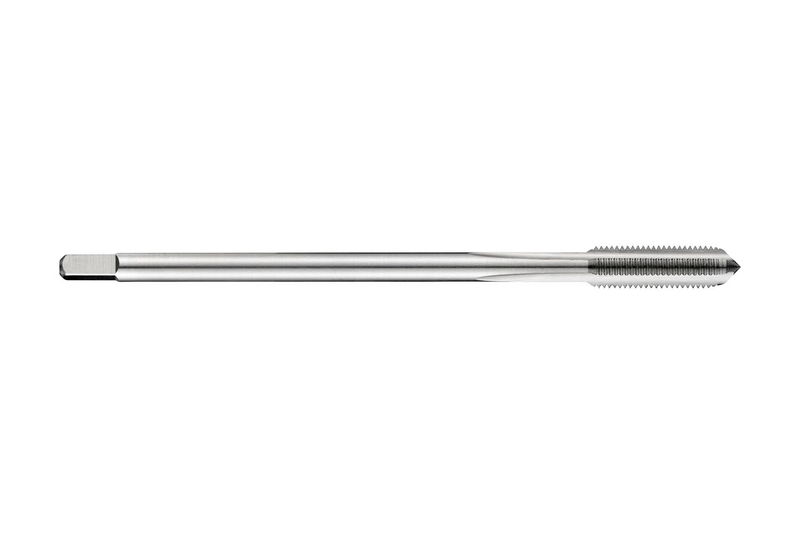

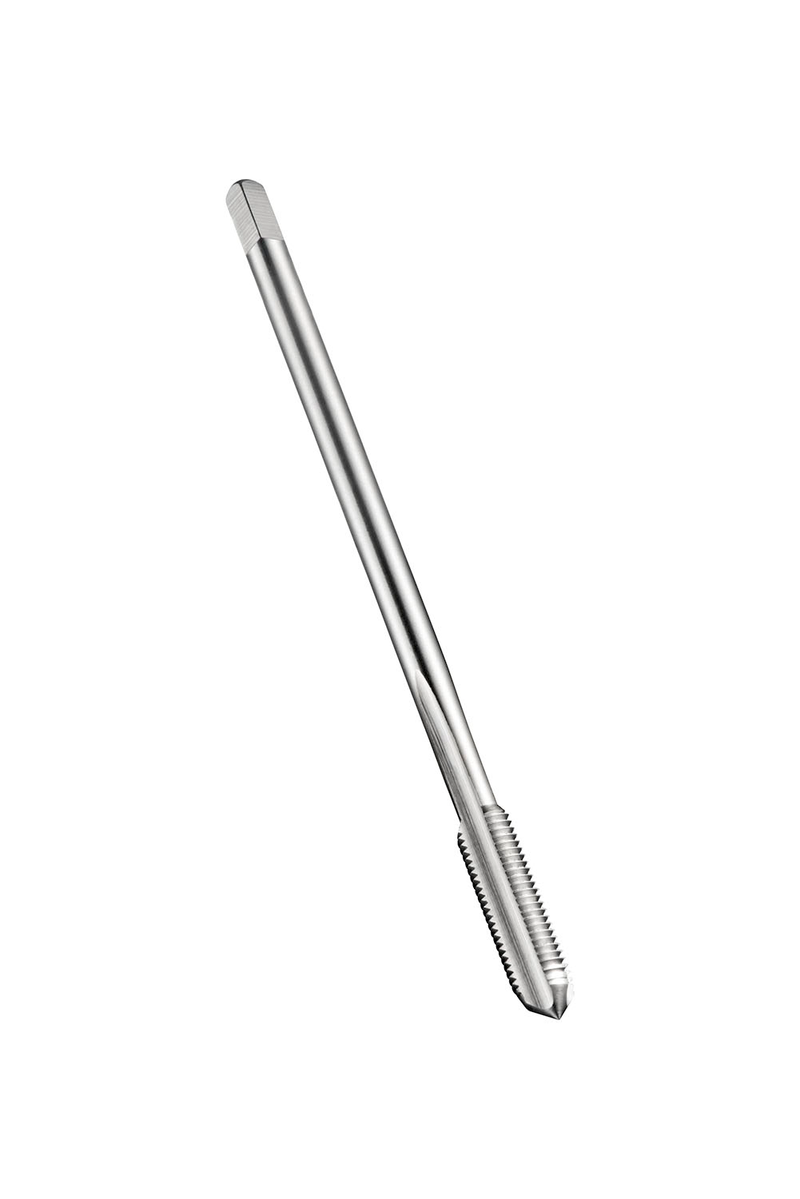

Taraud droit forme C avec entrée 2-3xP, pour filetage métrique ISO fin M16 au pas de 1,00 mm et classe de tolérance 6H, dimensions selon norme DIN 374 avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, en HSS-E PM avec finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E268M16X1.0
GradeLumineux
Product Number5975213
Product FamilyE268
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)MF - Pas métrique fin
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number88579
EAN7320760088579
File Type Download

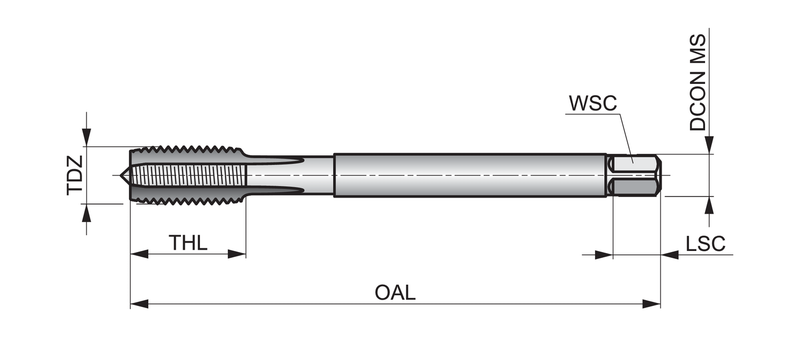

E268M16X1.0 — Line Drawing PDF Download
