E2753/4
E2753/4
E2753/4

E2753/4

UGC DOR5975222
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$138.19 CAD - $138.19 CAD
$138.19 CAD
$138.19 CAD - $138.19 CAD
$138.19 CAD

Vendu en lots de : 1

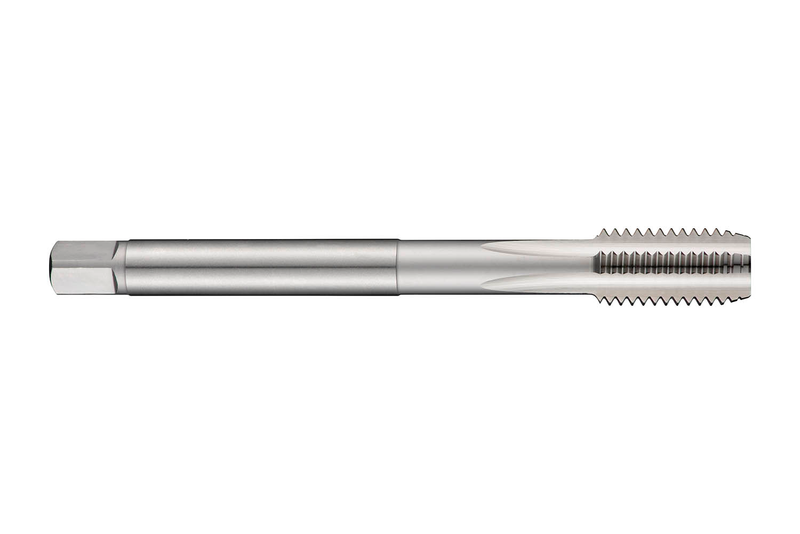

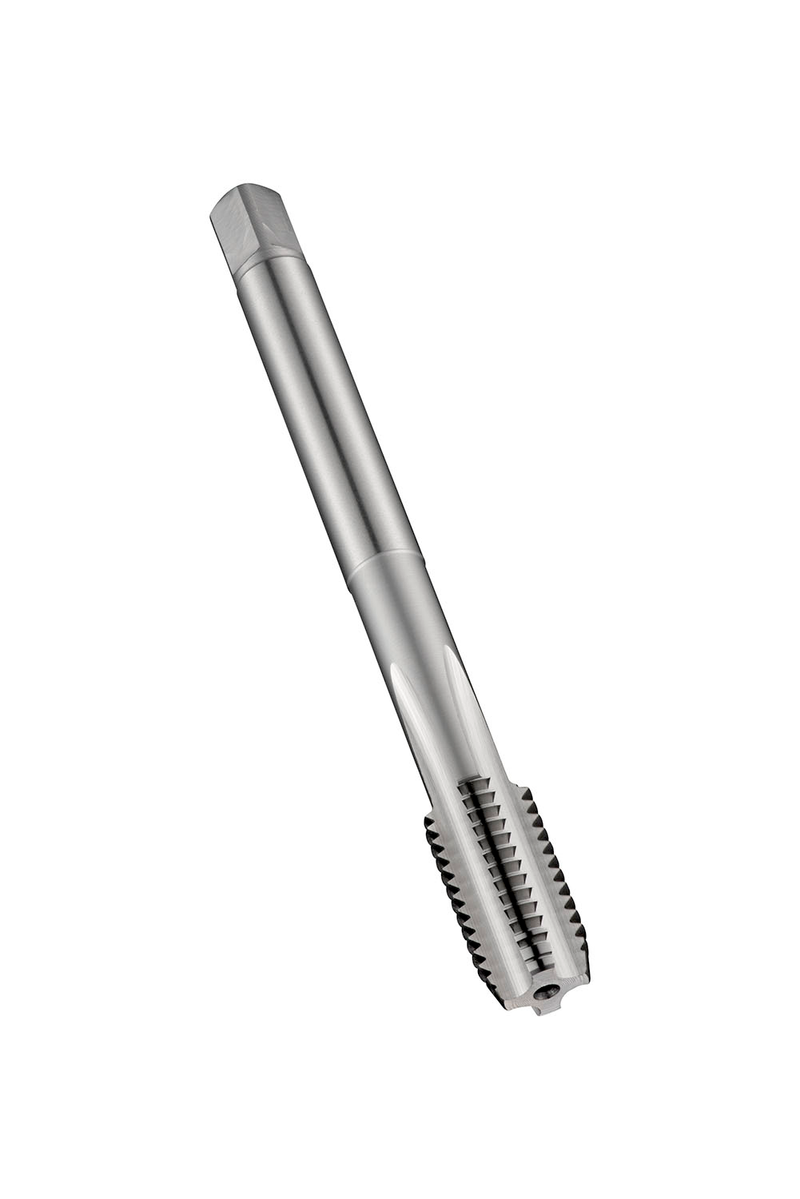

Taraud droit forme C avec entrée 2-3xP pour filet UNC 3/4" avec 10 filets par pouce (TPI) et classe de tolérance 2B, dimensions selon la norme DIN 376 avec queue de 14.0mm et carré d'entraînement de 11.0mm, HSS-E (acier rapide fritté) finition brillante pour filetage de trous traversants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2753/4
GradeLumineux
Product Number5975222
Product FamilyE275
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)UNC - Coarse Unifié
Threads per Inch (TPI)10.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number89408
EAN7320760089408
File Type Download
E2753/4 — Line Drawing PDF Download
