E2821
E2821
E2821

E2821

UGC DOR5975224
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$343.10 CAD - $343.10 CAD
$343.10 CAD
$343.10 CAD - $343.10 CAD
$343.10 CAD

Vendu en lots de : 1

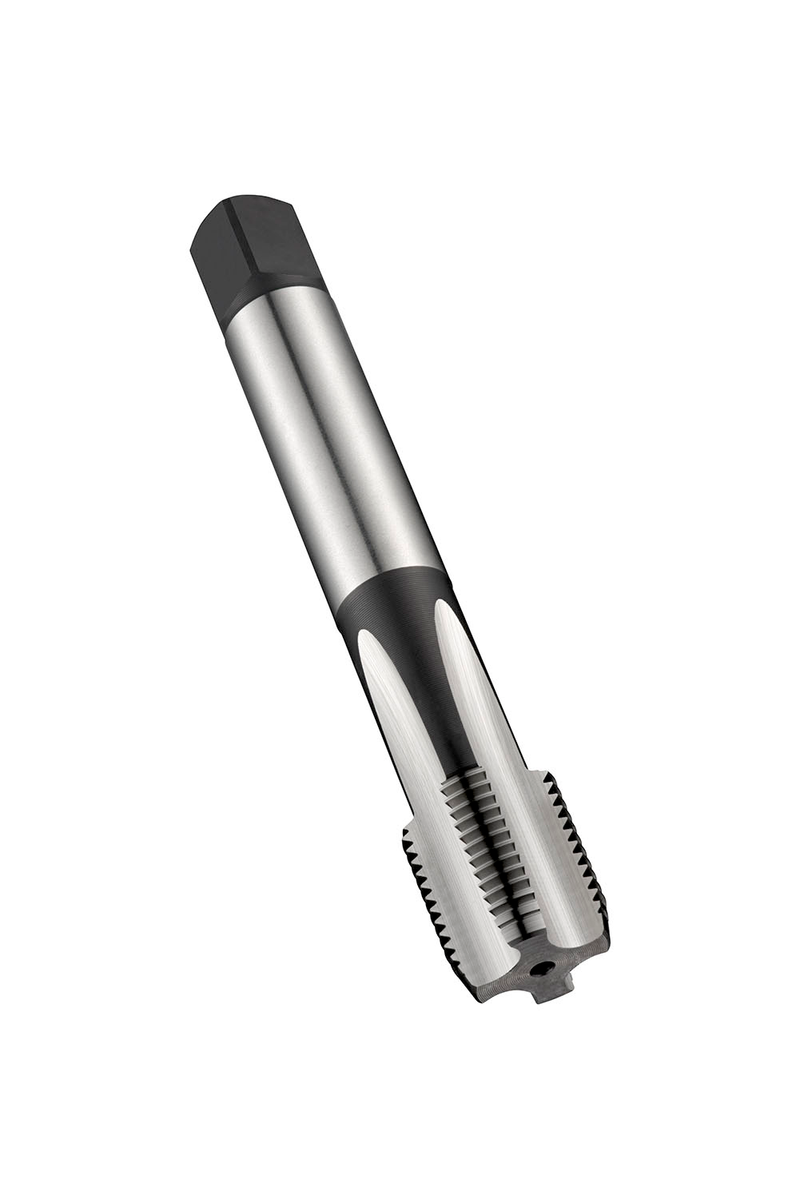

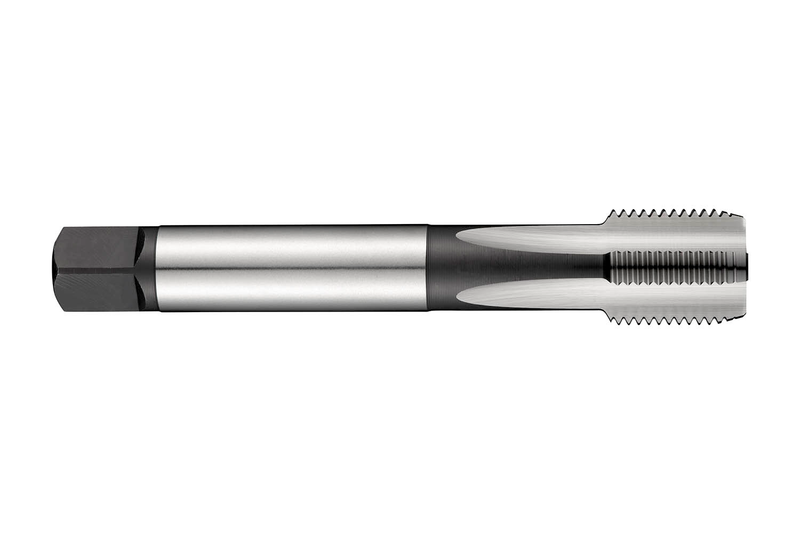

Taraud droit chanfrein forme C, entrée 2-3 filets, pour filetage British Standard Pipe G 1" avec 11 filets par pouce et classe de tolérance normale, dimensions selon DIN 5156 avec queue de 25,0 mm et carré d'entraînement de 20,0 mm, en HSS-E fritté avec finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2821
GradeLumineux
Product Number5975224
Product FamilyE282
Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.3091"
Thread Diameter — mm (TD)33.25 mm
Thread Form (THFT)G - Fixation de tuyau de norme britannique - Série G
Threads per Inch (TPI)11.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 5156
Reference Numbers
EDP Number89941
EAN7320760089941
File Type Download

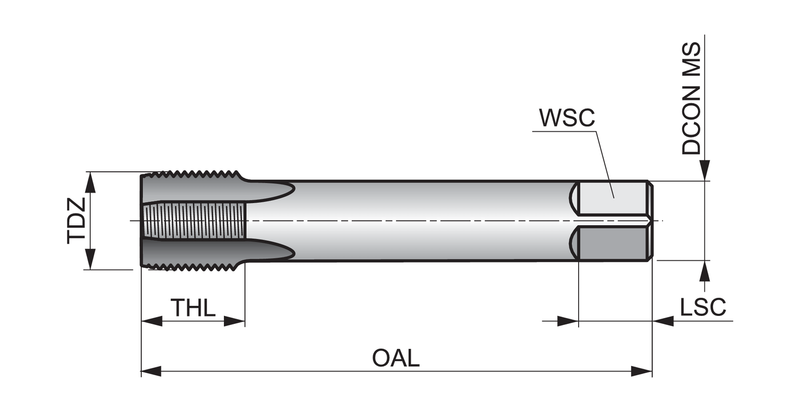

E2821 — Line Drawing PDF Download
