E2755/16
E2755/16
E2755/16

E2755/16

UGC DOR5975227
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.87 CAD - $47.87 CAD
$47.87 CAD
$47.87 CAD - $47.87 CAD
$47.87 CAD

Vendu en lots de : 1

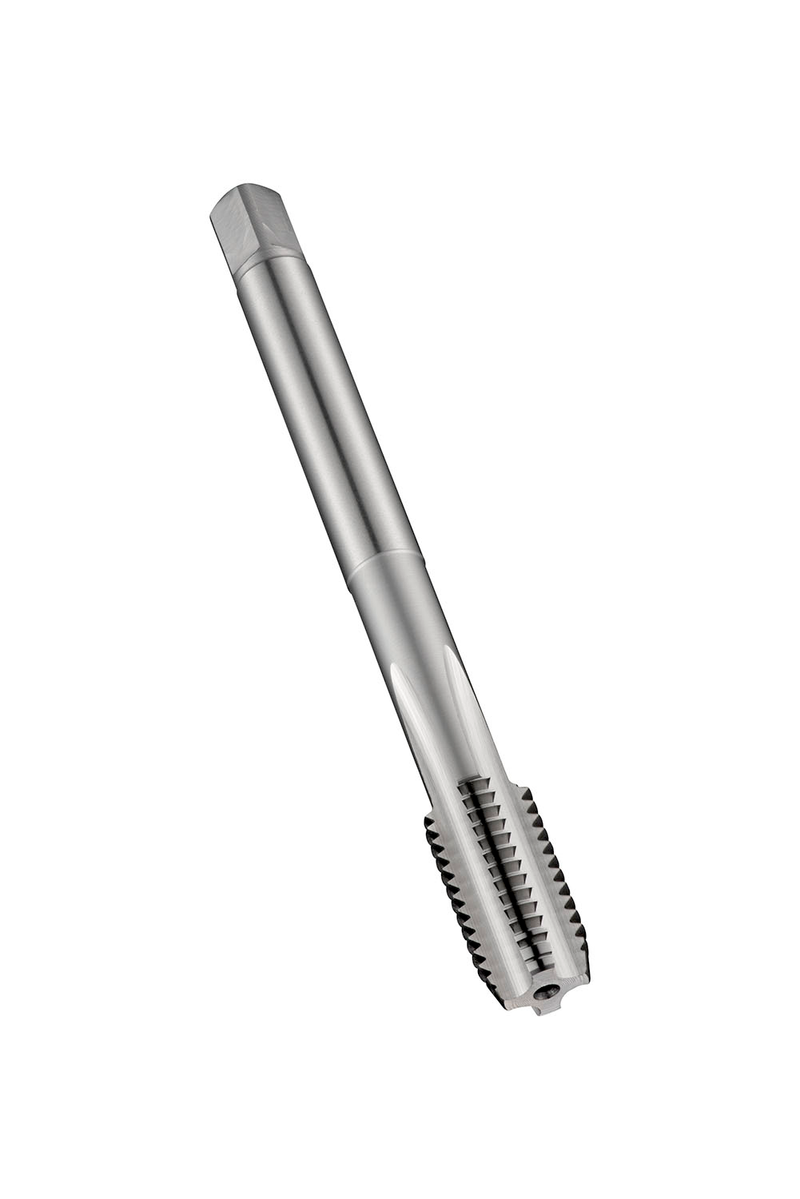

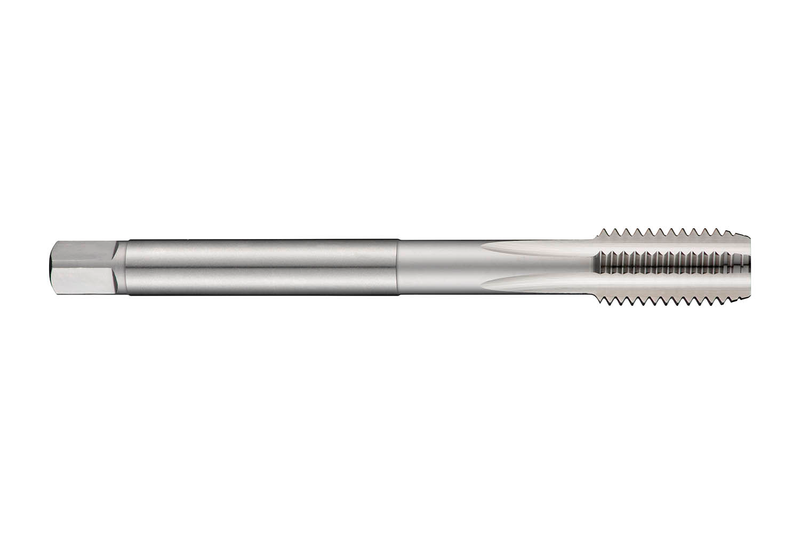

Taraud droit forme C avec entrée 2-3xP pour filet UNC 5/16" à 18 filets par pouce et tolérance 2B, dimensions selon la norme DIN 376 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en acier rapide fritté HSS-E finition brillante, pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2755/16
GradeLumineux
Product Number5975227
Product FamilyE275
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3126"
Thread Diameter — mm (TD)7.94 mm
Thread Form (THFT)UNC - Unifié Grossier
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number89422
EAN7320760089422
File Type Download
E2755/16 — Line Drawing PDF Download
