UGC DOR5975323
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.06 CAD - $50.06 CAD
$50.06 CAD
$50.06 CAD - $50.06 CAD
$50.06 CAD

Vendu en lots de : 1

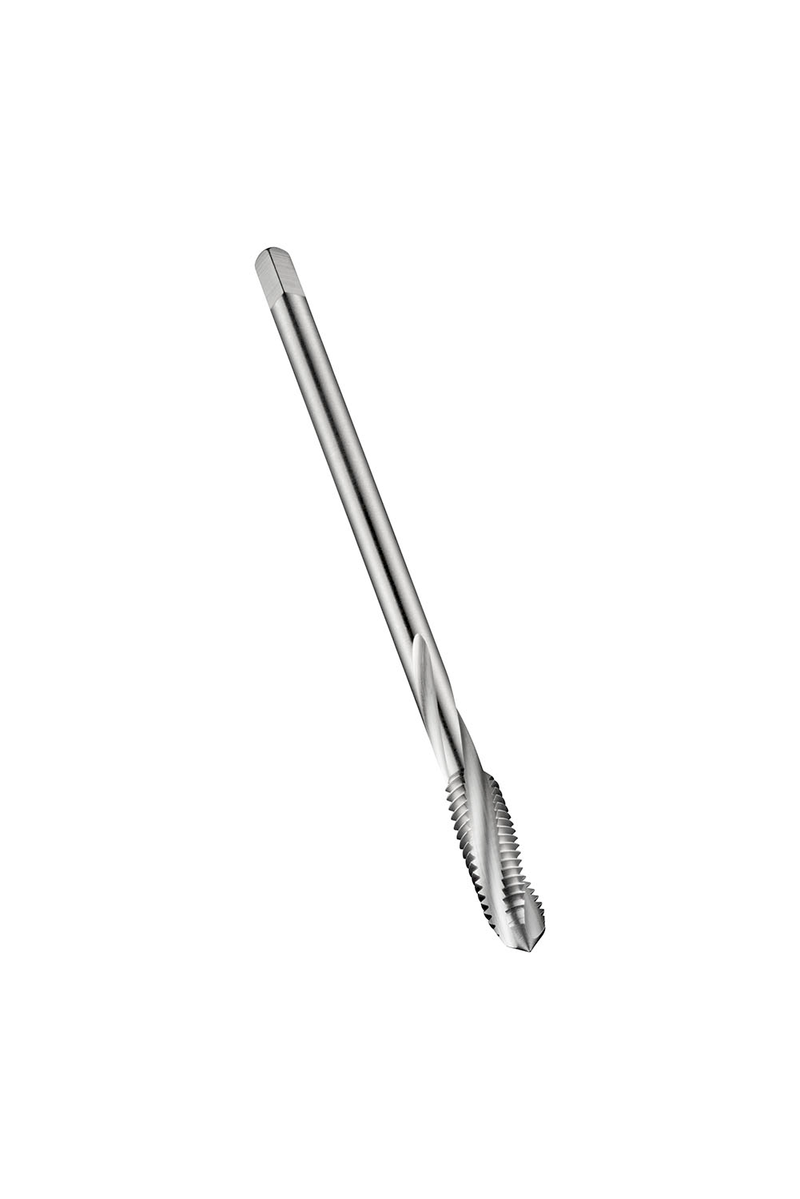

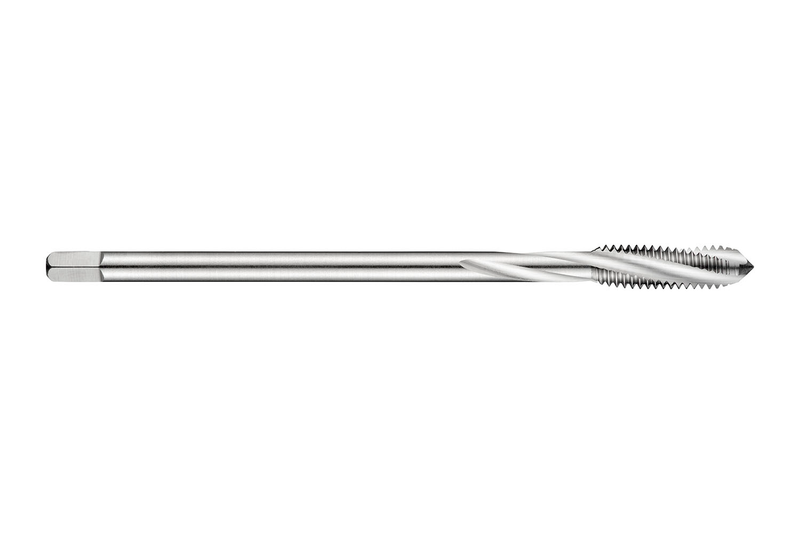

Taraud machine à coupe à droite à goujures hélicoïdales avec entrée C (filet 2-3 pas) pour filet métrique ISO M12 au pas de 1.75 mm et tolérance 6H, selon la norme DIN 376 avec queue de 9.0mm et carré d'entraînement de 7.0mm, en HSS-E fritté avec finition brillante et angle d'hélice de 15° pour usinage de trous borgnes jusqu'à 1.5xD dans les aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E258M12
GradeLumineux
Product Number5975323
Product FamilyE258

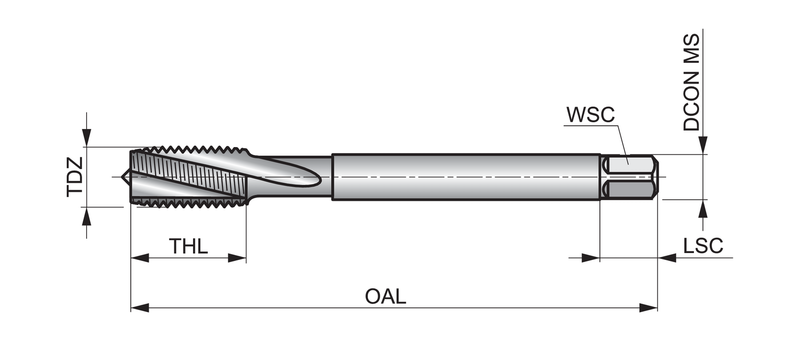

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number87565
EAN7320760087565
File Type Download
E258M12 — Line Drawing PDF Download
