E500M16NO1
E500M16NO1

E500M16NO1

UGC DOR5975340
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.67 CAD - $58.67 CAD
$58.67 CAD
$58.67 CAD - $58.67 CAD
$58.67 CAD

Vendu en lots de : 1

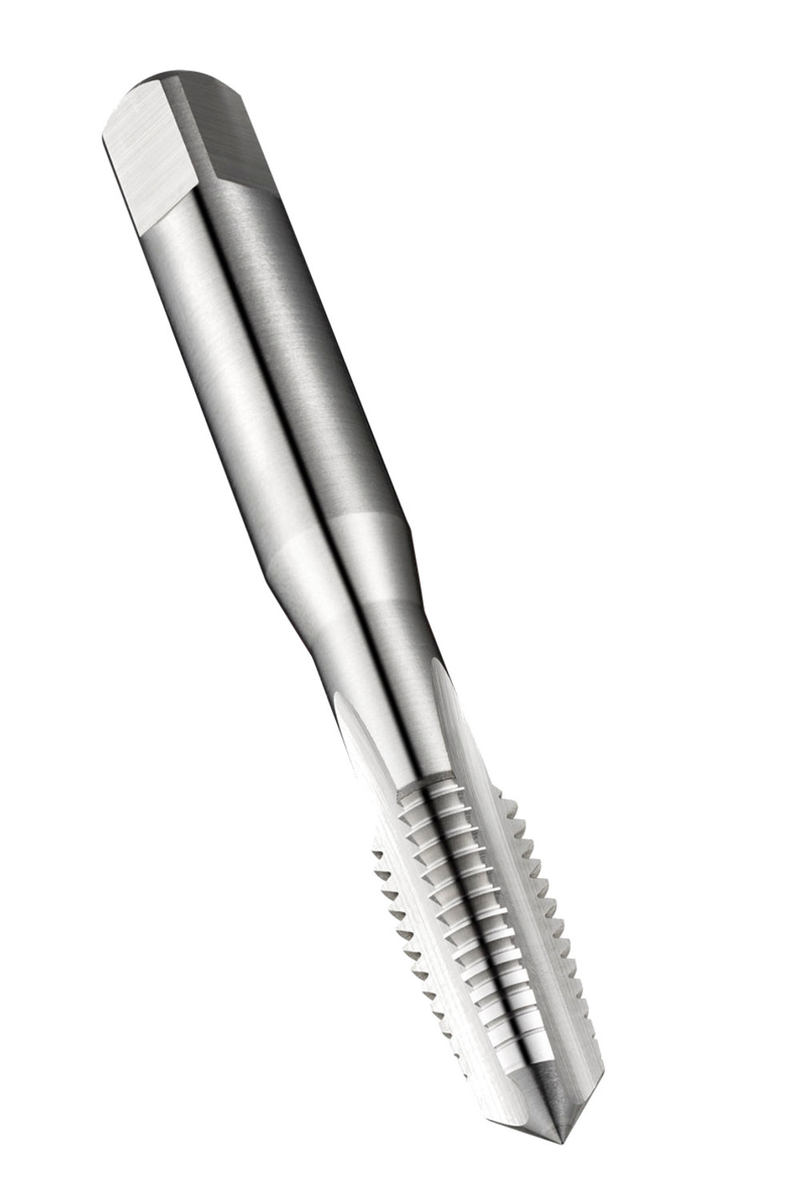

Taraud à main à coupe droite NO1 avec entrée longue 6-8xP, pour filetage ISO-Métrique M16 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon norme ISO 529 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M16NO1
GradeLumineux
Product Number5975340
Product FamilyE500
Dimensions
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154526
EAN7320760154526
File Type Download
E500M16NO1 — Line Drawing PDF Download
