E500M16NO7
E500M16NO7

E500M16NO7

UGC DOR5975359
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.34 CAD - $117.34 CAD
$117.34 CAD
$117.34 CAD - $117.34 CAD
$117.34 CAD

Vendu en lots de : 1

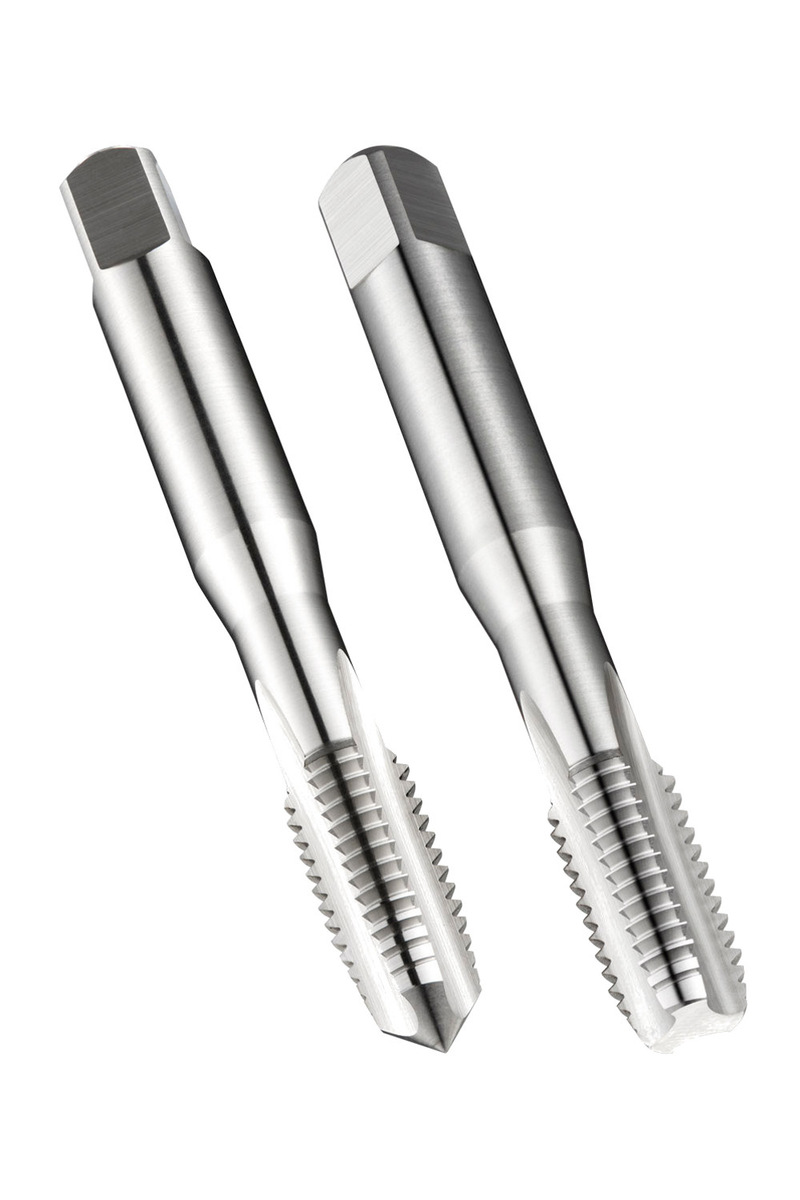

Jeu de tarauds à main à coupe droite NO7 pour filetage ISO-Métrique M16 au pas de 2,00 mm et de classe de tolérance 6H, comprenant 1 taraud d'ébauche (entrée 4-6xP) et 1 taraud finisseur (entrée 2-3xP), dimensions selon la norme ISO 529 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage libre et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M16NO7
GradeLumineux
Product Number5975359
Product FamilyE500
Dimensions
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154502
EAN7320760154502
File Type Download
E500M16NO7 — Line Drawing PDF Download
