E500M2.2NON1
E500M2.2NON1

E500M2.2NON1

UGC DOR5975398
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.43 CAD - $38.43 CAD
$38.43 CAD
$38.43 CAD - $38.43 CAD
$38.43 CAD

Vendu en lots de : 1

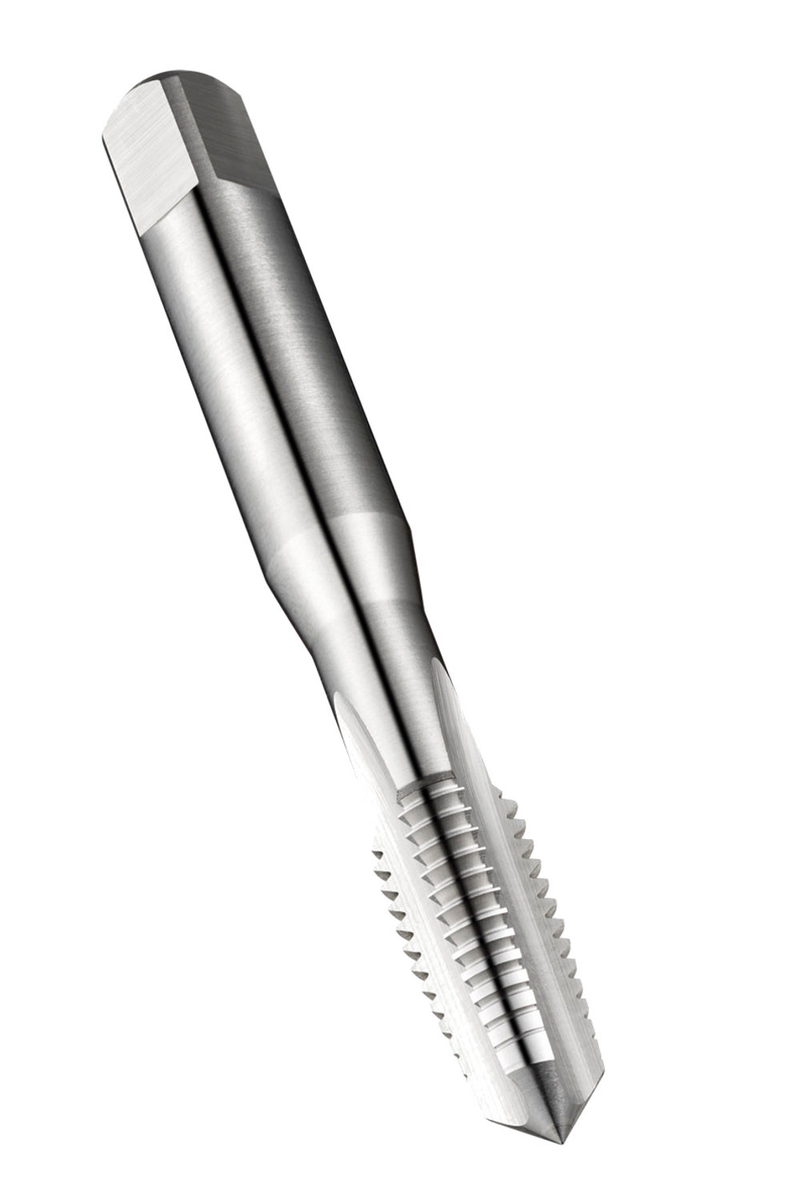

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage ISO-métrique M2.2 au pas de 0.45 mm et classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 2.8mm et carré d'entraînement de 2.24mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI)E500M2.2NON1
Product Name (ISO)E500M2.2NO1
GradeLumineux
Product Number5975398
Product FamilyE500
Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2.2
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.45 mm
Thread Pitch — in (TP)0.0177"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154915
EAN7320760154915
File Type Download
E500M2.2NON1 — Line Drawing PDF Download
