E500M2.2NO3
E500M2.2NO3

E500M2.2NO3

UGC DOR5975410
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.43 CAD - $38.43 CAD
$38.43 CAD
$38.43 CAD - $38.43 CAD
$38.43 CAD

Vendu en lots de : 1

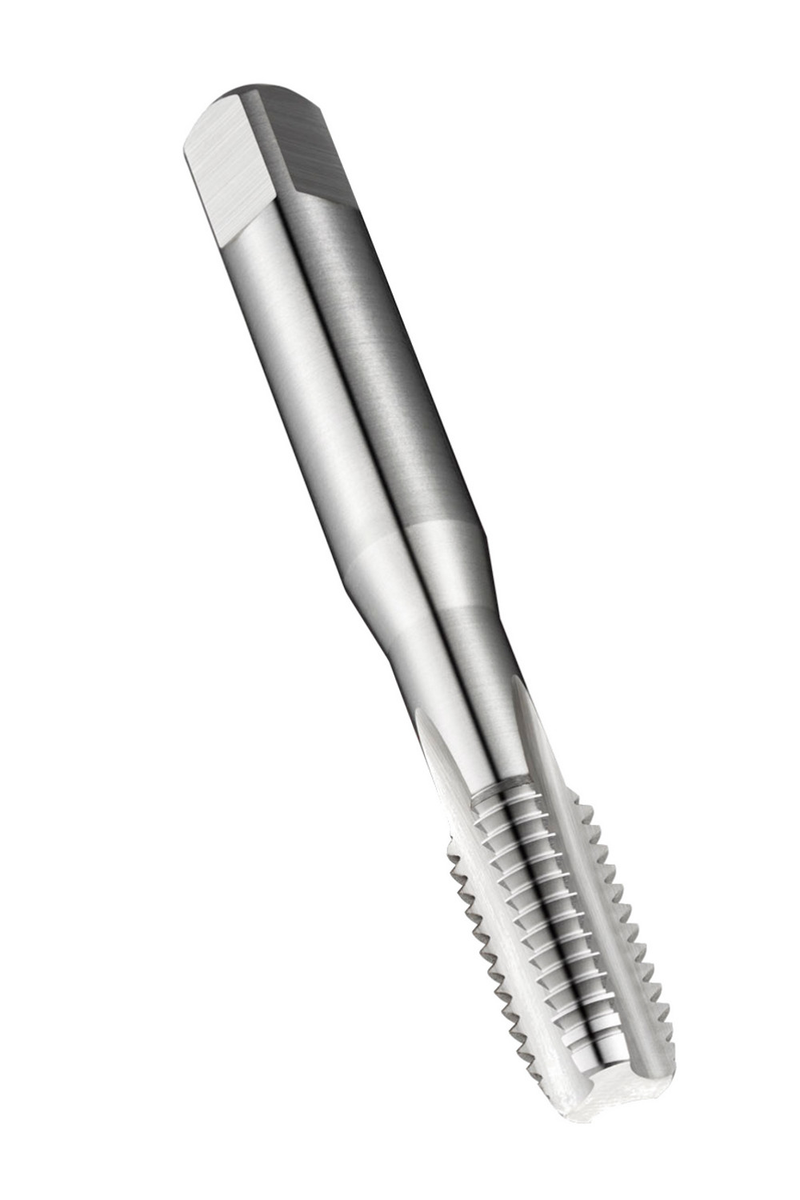

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filet métrique ISO M2.2 au pas de 0.45 mm et de classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 2.8mm et carré d'entraînement de 2.24mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M2.2NO3
GradeLumineux
Product Number5975410
Product FamilyE500
Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2.2
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.45 mm
Thread Pitch — in (TP)0.0177"
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number94174
EAN7320760094174
File Type Download
E500M2.2NO3 — Line Drawing PDF Download
