E500M2.5NON2
E500M2.5NON2

E500M2.5NON2

UGC DOR5975456
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.91 CAD - $28.91 CAD
$28.91 CAD
$28.91 CAD - $28.91 CAD
$28.91 CAD

Vendu en lots de : 1

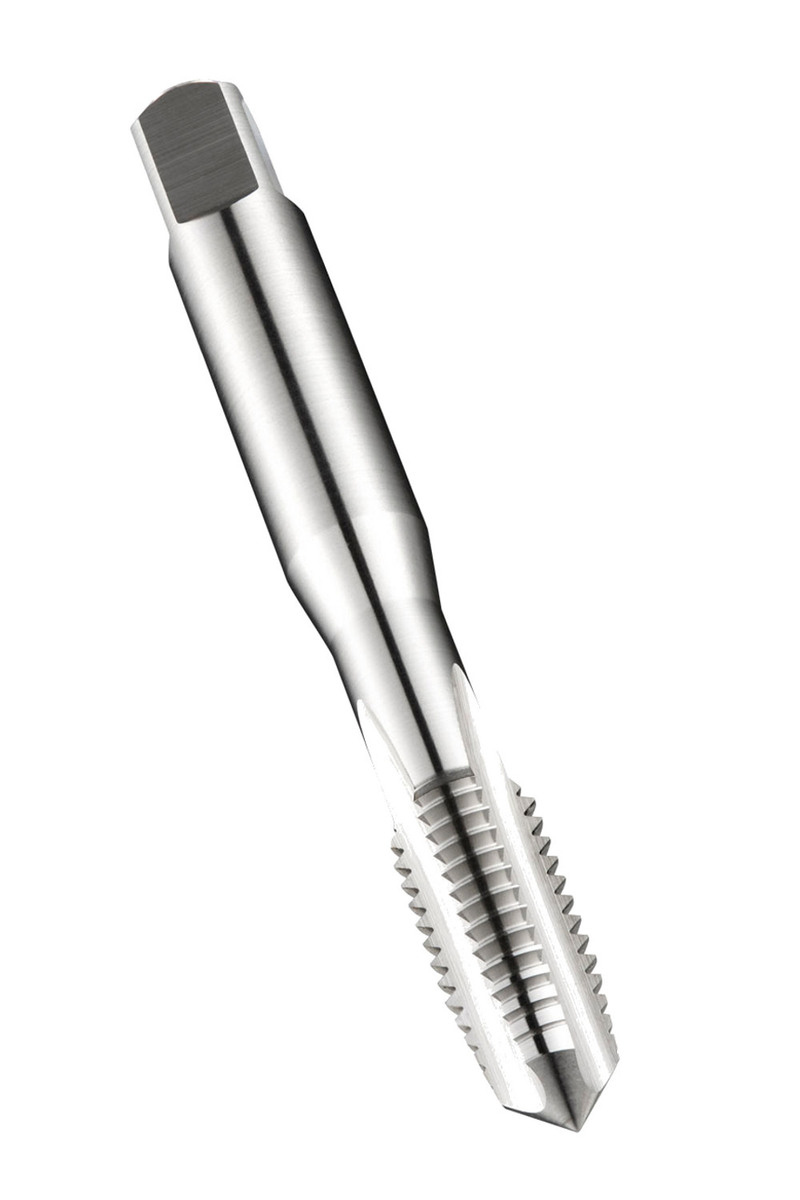

Taraud à main à coupe droite NO2, entrée 4-6 filets, pour filetage métrique ISO M2,5 au pas de 0,45 mm et de classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 2,8 mm et carré d'entraînement de 2,24 mm, en HSS brillant pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M2.5NON2
GradeLumineux
Product Number5975456
Product FamilyE500
Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2.5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.45 mm
Thread Pitch — in (TP)0.0177"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number94228
EAN7320760094228
File Type Download
E500M2.5NON2 — Line Drawing PDF Download
