E303M10NO1
E303M10NO1
E303M10NO1

E303M10NO1

UGC DOR5975489
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.40 CAD - $58.40 CAD
$58.40 CAD
$58.40 CAD - $58.40 CAD
$58.40 CAD

Vendu en lots de : 1

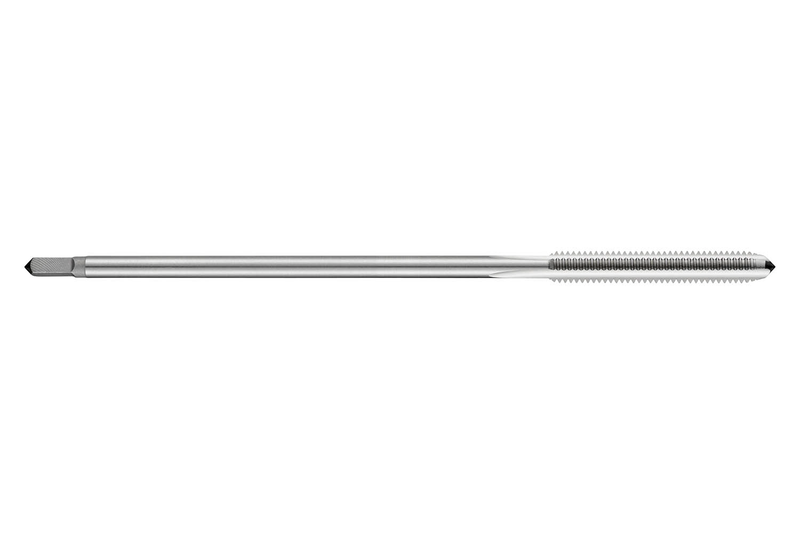

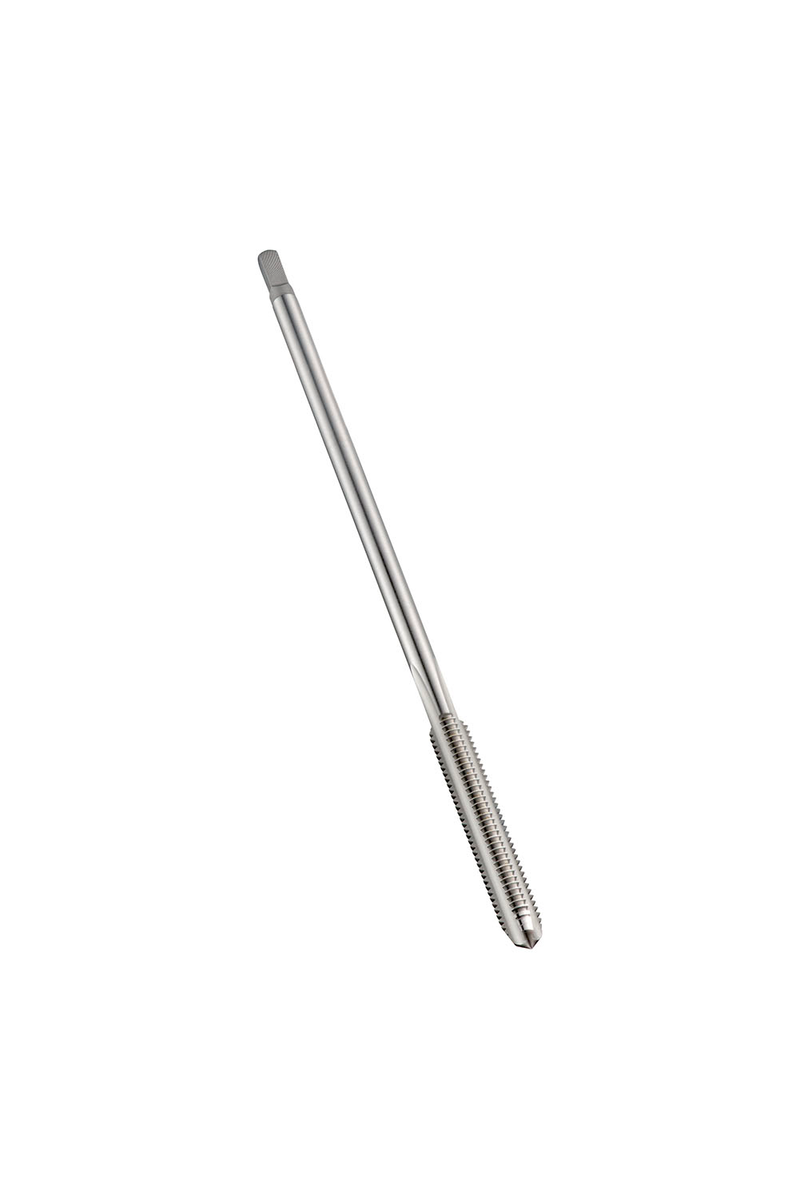

Taraud machine à coupe droite, à entrée très longue de 18-20 filets, pour filetage métrique ISO M10 au pas de 1,50 mm et de classe de tolérance 6H, dimensions selon la norme DIN 357 avec queue de 7,0 mm et carré d'entraînement de 5,5 mm, en HSS-E cobalt avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers à usinage facile

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E303M10NO1
GradeLumineux
Product Number5975489
Product FamilyE303

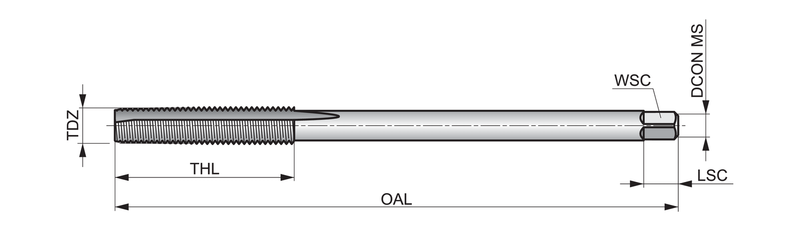

Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.2756"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 357
Reference Numbers
EDP Number90244
EAN7320760090244
File Type Download
E303M10NO1 — Line Drawing PDF Download
