E303M12NO3
E303M12NO3
E303M12NO3

E303M12NO3

UGC DOR5975492
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.83 CAD - $68.83 CAD
$68.83 CAD
$68.83 CAD - $68.83 CAD
$68.83 CAD

Vendu en lots de : 1

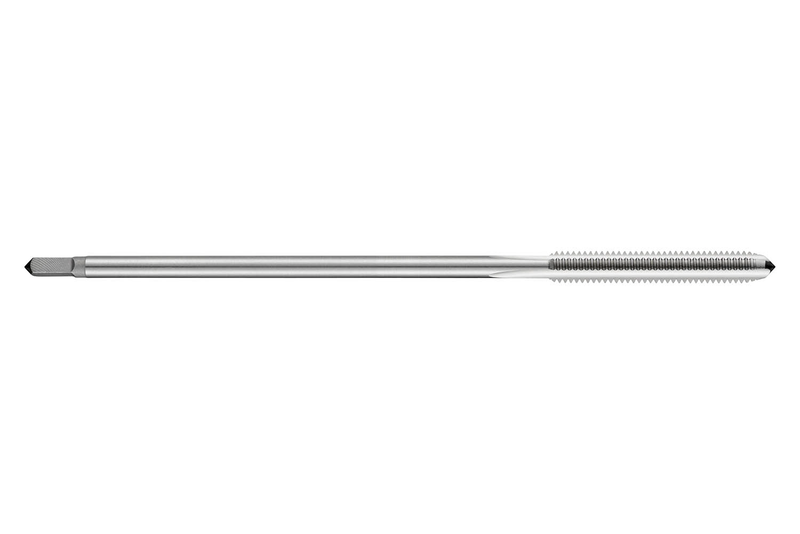

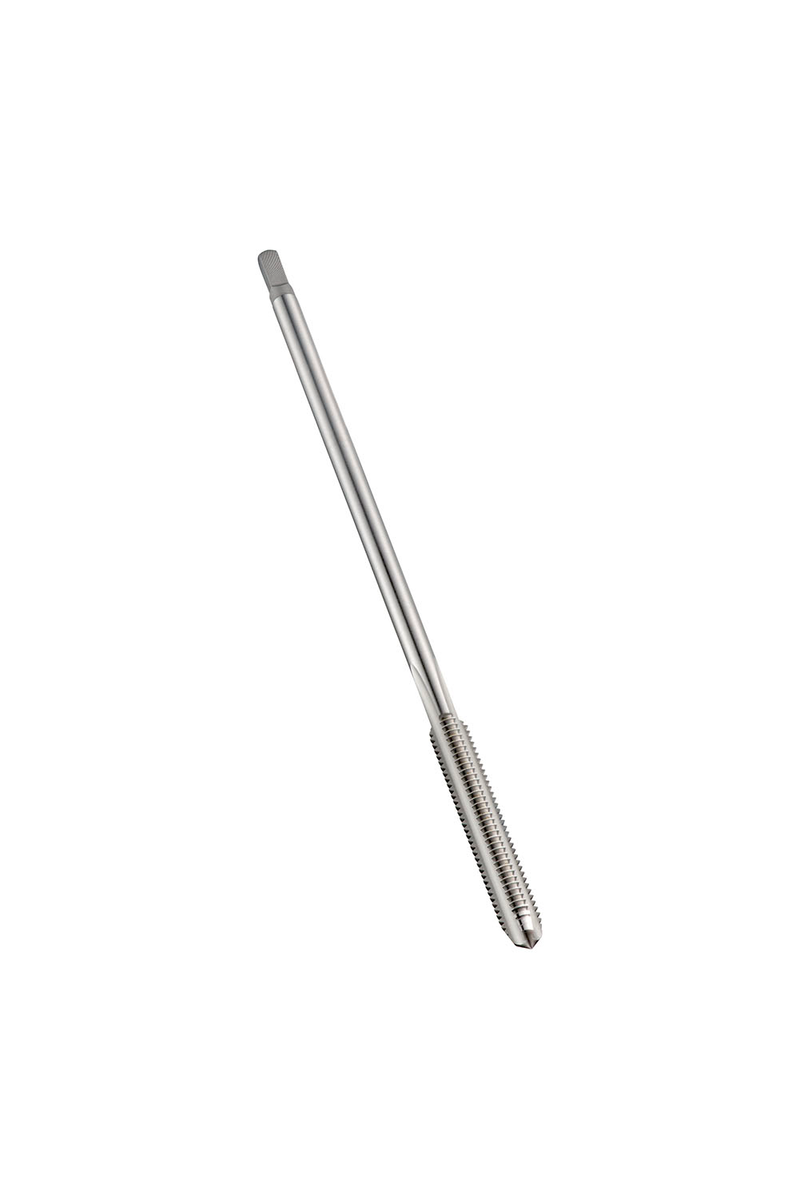

Taraud machine à goujures droites NO3 avec entrée 2-3xP, pour filetage métrique ISO M12 au pas de 1,75 mm et classe de tolérance 6H, dimensions conformes à la norme DIN 357 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E à base de cobalt avec finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers à usinage facile

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E303M12NO3
GradeLumineux
Product Number5975492
Product FamilyE303

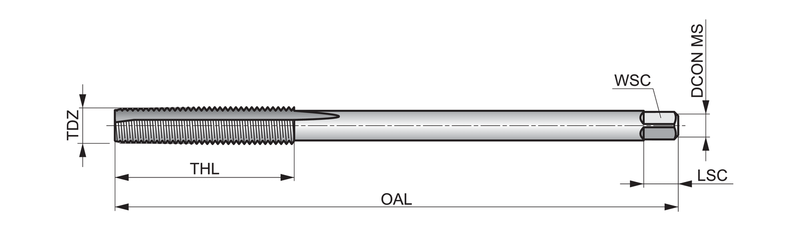

Dimensions
Overall Length — in (OAL)7.0866"
Overall Length — mm (OAL)180.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 357
Reference Numbers
EDP Number90275
EAN7320760090275
File Type Download
E303M12NO3 — Line Drawing PDF Download
