E303M14NO3
E303M14NO3
E303M14NO3

E303M14NO3

UGC DOR5975494
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$96.47 CAD - $96.47 CAD
$96.47 CAD
$96.47 CAD - $96.47 CAD
$96.47 CAD

Vendu en lots de : 1

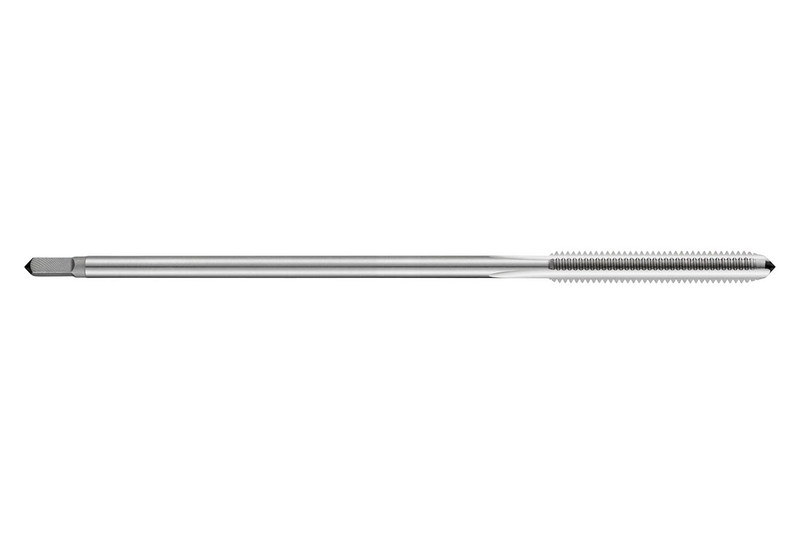

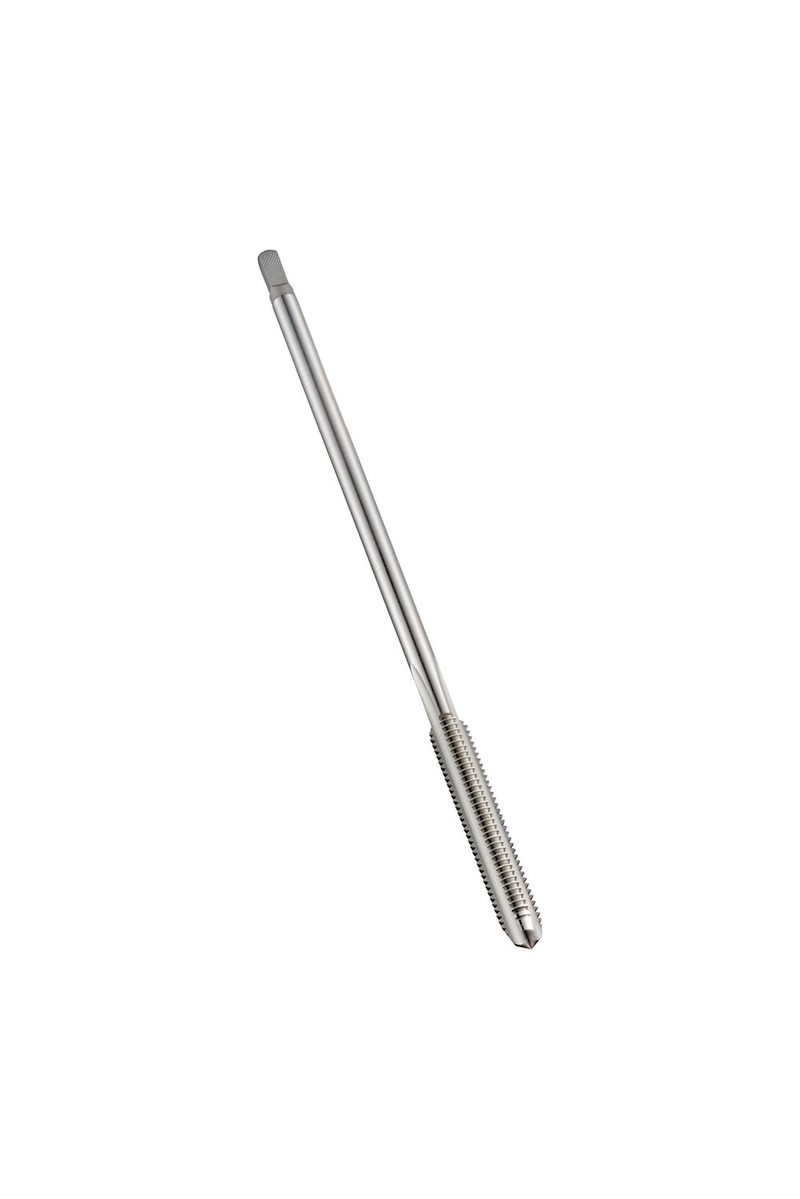

Taraud machine à écrou NO3 à coupe droite avec entrée 2-3xP, pour filetage métrique ISO M14 au pas de 2,00 mm et classe de tolérance 6H, dimensions conformes à la norme DIN 357 avec queue de 11,0 mm et carré d'entraînement de 9,0 mm, HSS-E cobalté avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E303M14NO3
GradeLumineux
Product Number5975494
Product FamilyE303

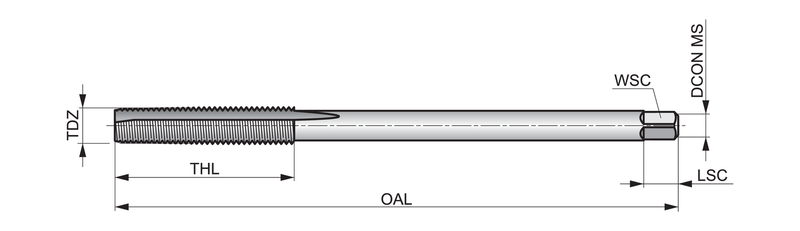

Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 357
Reference Numbers
EDP Number90299
EAN7320760090299
File Type Download
E303M14NO3 — Line Drawing PDF Download
