E303M20NO1
E303M20NO1
E303M20NO1

E303M20NO1

UGC DOR5975500
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.70 CAD - $150.70 CAD
$150.70 CAD
$150.70 CAD - $150.70 CAD
$150.70 CAD

Vendu en lots de : 1

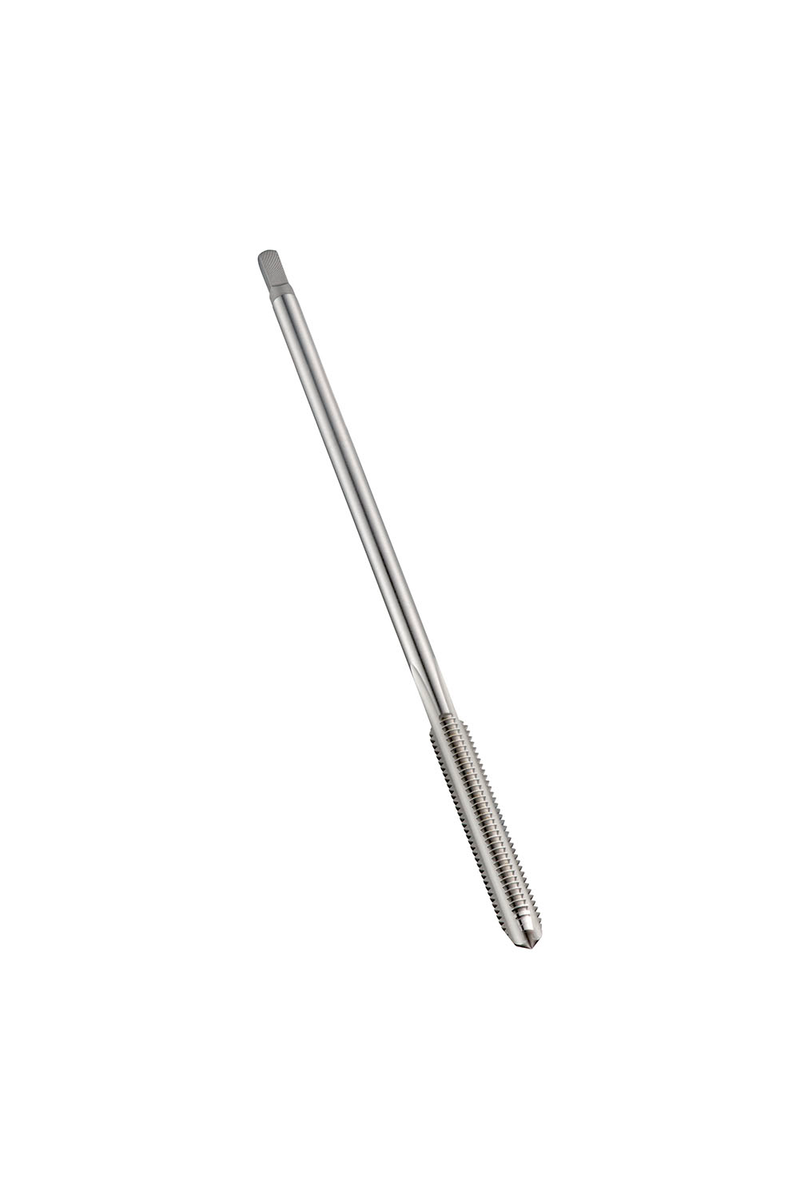

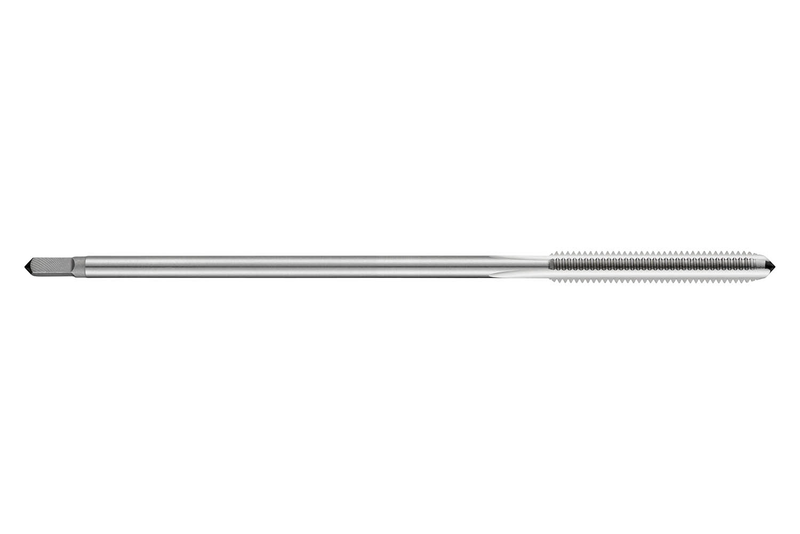

Taraud machine à coupe droite, avec entrée progressive longue 18-20 filets, pour filet métrique ISO M20 au pas de 2,50 mm et de classe de tolérance 6H, dimensions conformes à la norme DIN 357 avec queue de 16,0 mm et carré d'entraînement de 12,0 mm, en HSS-E cobalt avec finition brillante pour le taraudage de trous débouchants ou borgnes de profondeur 2xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E303M20NO1
GradeLumineux
Product Number5975500
Product FamilyE303

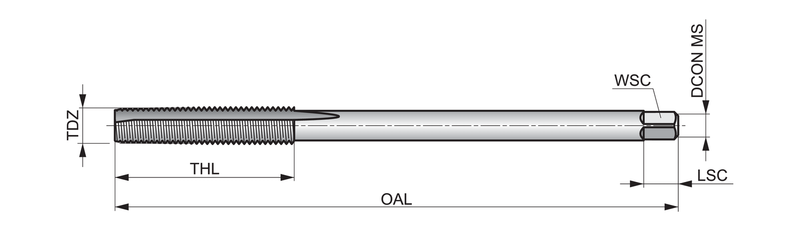

Dimensions
Overall Length — in (OAL)9.8425"
Overall Length — mm (OAL)250.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 357
Reference Numbers
EDP Number90336
EAN7320760090336
File Type Download
E303M20NO1 — Line Drawing PDF Download
