E303M20NO3
E303M20NO3
E303M20NO3

E303M20NO3

UGC DOR5975501
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.70 CAD - $150.70 CAD
$150.70 CAD
$150.70 CAD - $150.70 CAD
$150.70 CAD

Vendu en lots de : 1

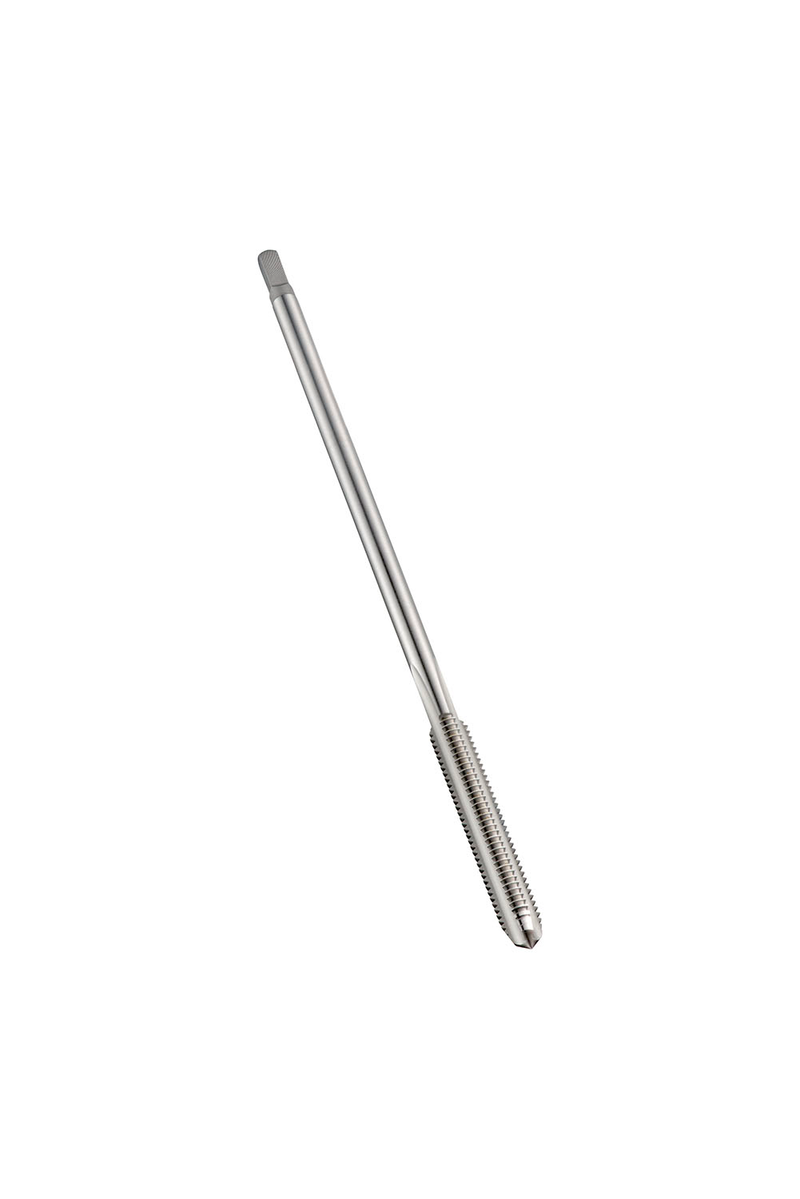

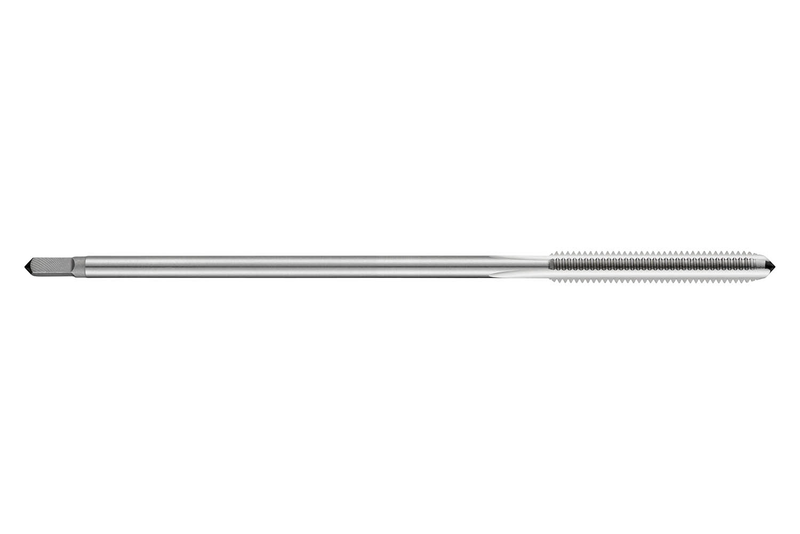

Taraud écrou à coupe droite NO3 avec entrée courte (2-3 filets) pour filetage ISO-Métrique M20 au pas de 2,50 mm et tolérance 6H, dimensions selon la norme DIN 357 avec queue de 16,0 mm et carré d'entraînement de 12,0 mm, en HSS-E cobalt avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E303M20NO3
GradeLumineux
Product Number5975501
Product FamilyE303

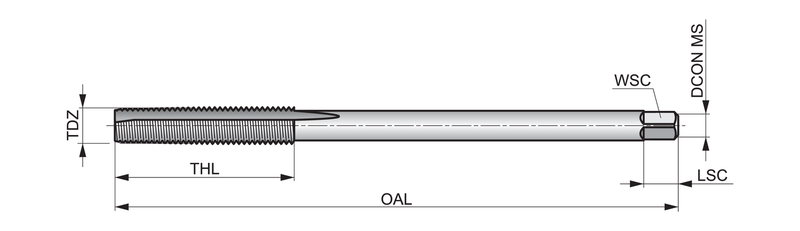

Dimensions
Overall Length — in (OAL)9.8425"
Overall Length — mm (OAL)250.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 357
Reference Numbers
EDP Number90343
EAN7320760090343
File Type Download
E303M20NO3 — Line Drawing PDF Download
