E500M20NO1
E500M20NO1

E500M20NO1

UGC DOR5975607
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.30 CAD - $107.30 CAD
$107.30 CAD
$107.30 CAD - $107.30 CAD
$107.30 CAD

Vendu en lots de : 1

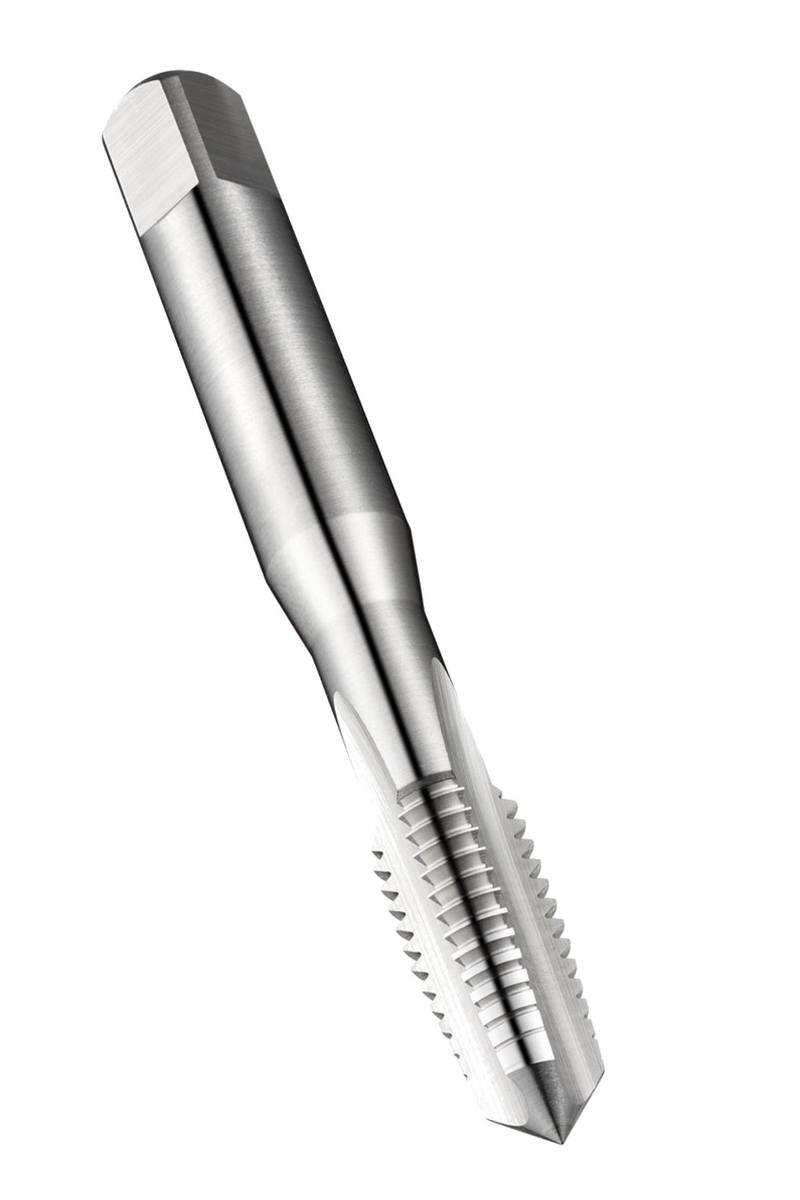

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage ISO-métrique M20 au pas de 2,50 mm et classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, HSS finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M20NO1
GradeLumineux
Product Number5975607
Product FamilyE500

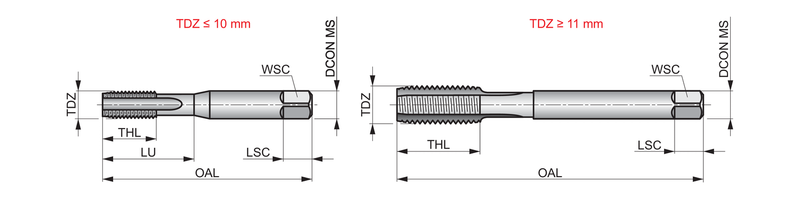

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154465
EAN7320760154465
File Type Download
E500M20NO1 — Line Drawing PDF Download
