E500M22NO2
E500M22NO2

E500M22NO2

UGC DOR5975639
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.87 CAD - $117.87 CAD
$117.87 CAD
$117.87 CAD - $117.87 CAD
$117.87 CAD

Vendu en lots de : 1

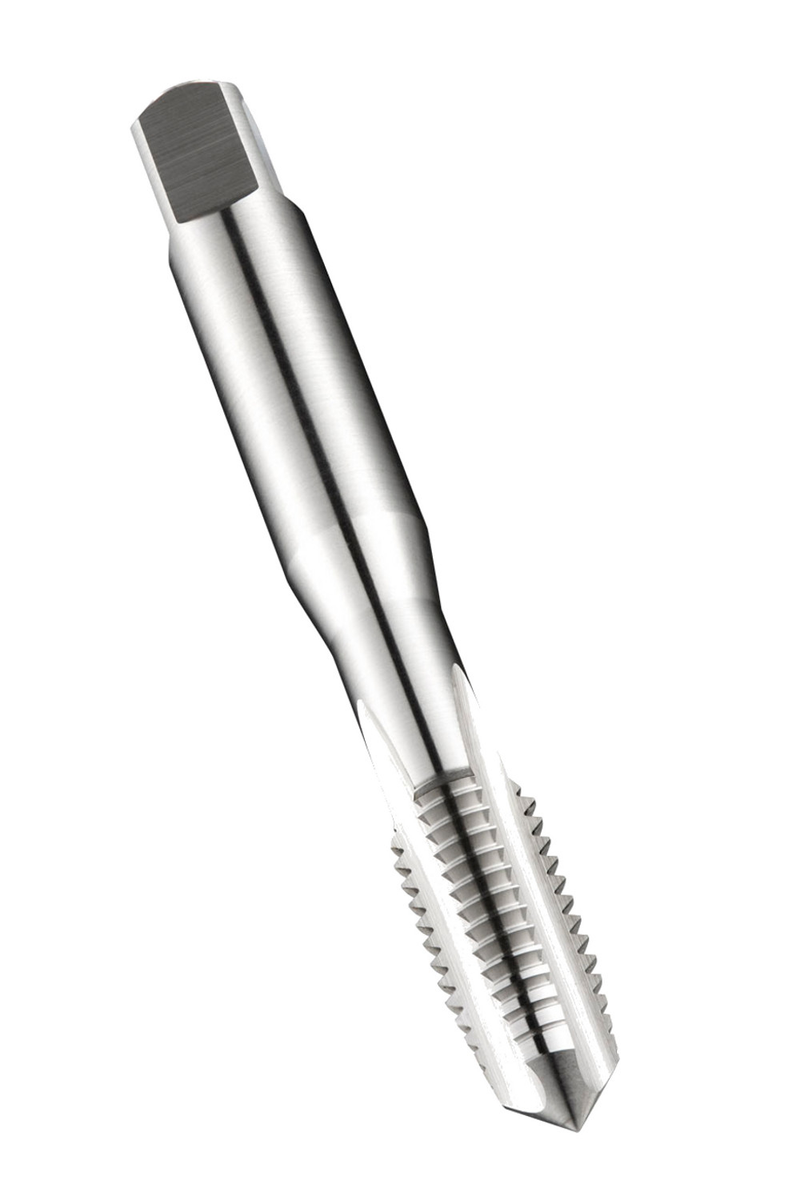

Taraud à main à coupe droite NO2 avec entrée seconde 4-6xP, pour filet métrique ISO M22 au pas de 2,50 mm et classe de tolérance 6H, dimensions selon norme ISO 529 avec queue de 16,0 mm et carré d'entraînement de 12,5 mm, en HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M22NO2
GradeLumineux
Product Number5975639
Product FamilyE500
Dimensions
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)22
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.0984"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number94310
EAN7320760094310
File Type Download
E500M22NO2 — Line Drawing PDF Download
